Visual Inspection
Visual Inspection
Visual Inspection

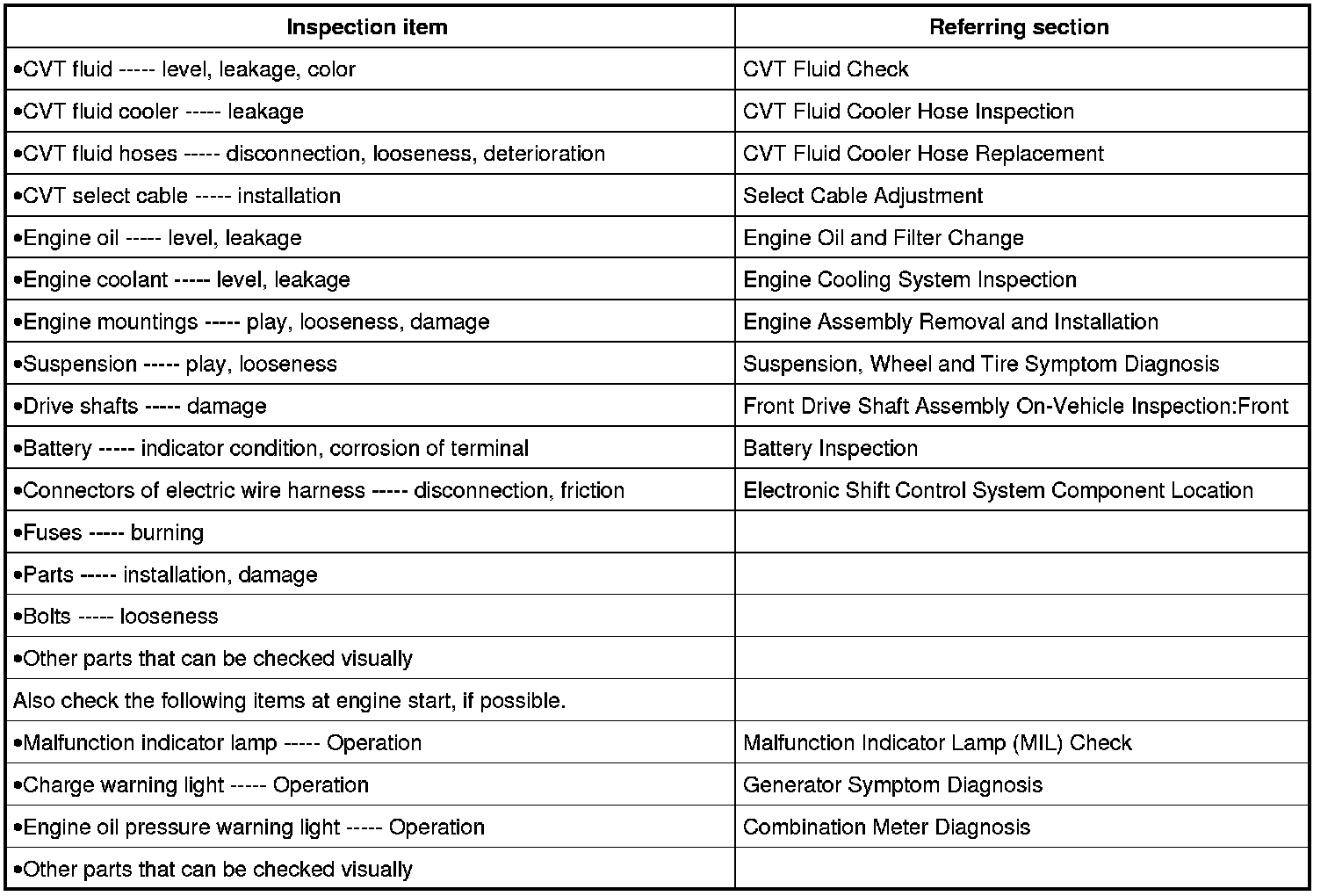

Visually check the following parts and systems.
