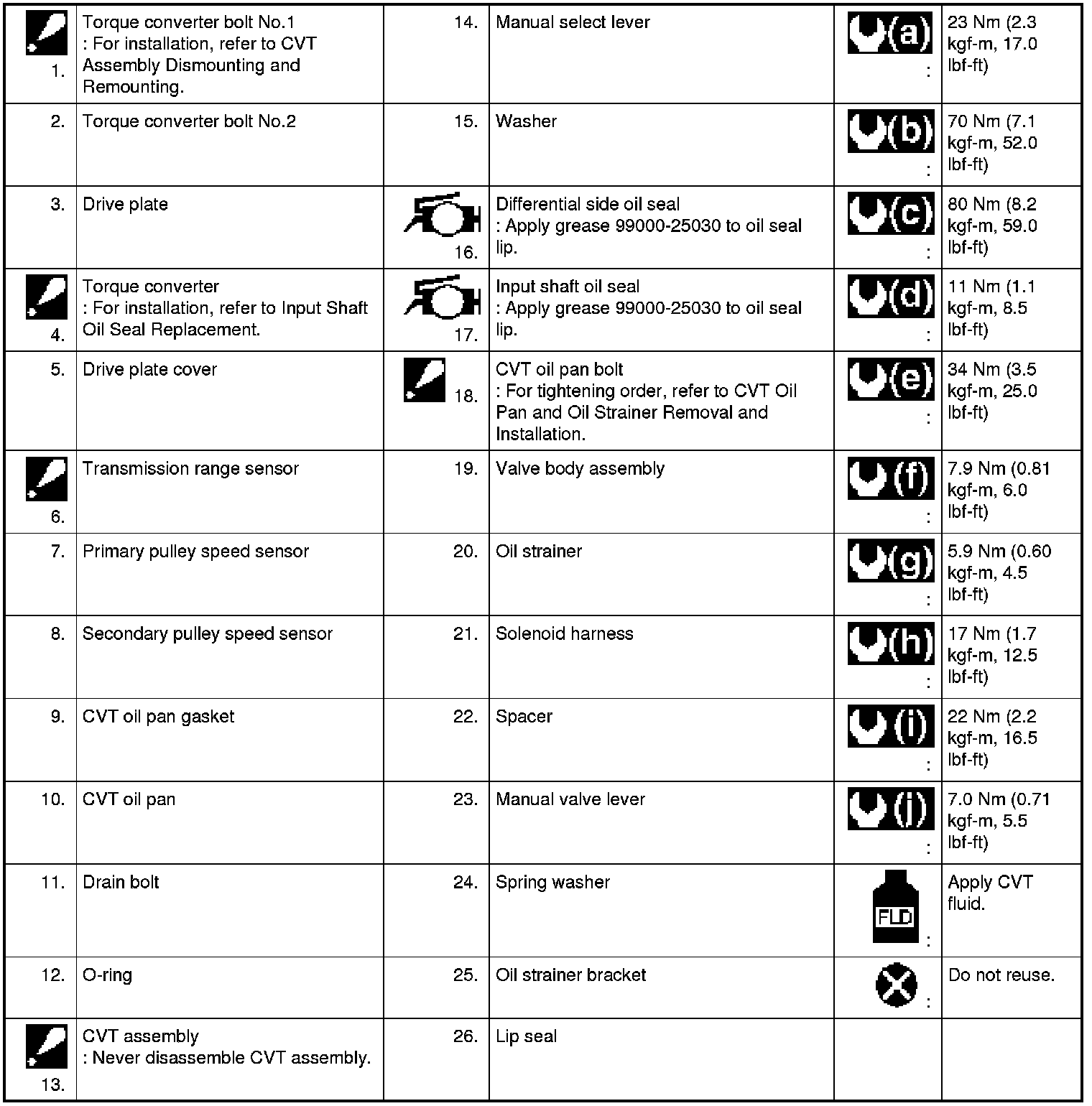

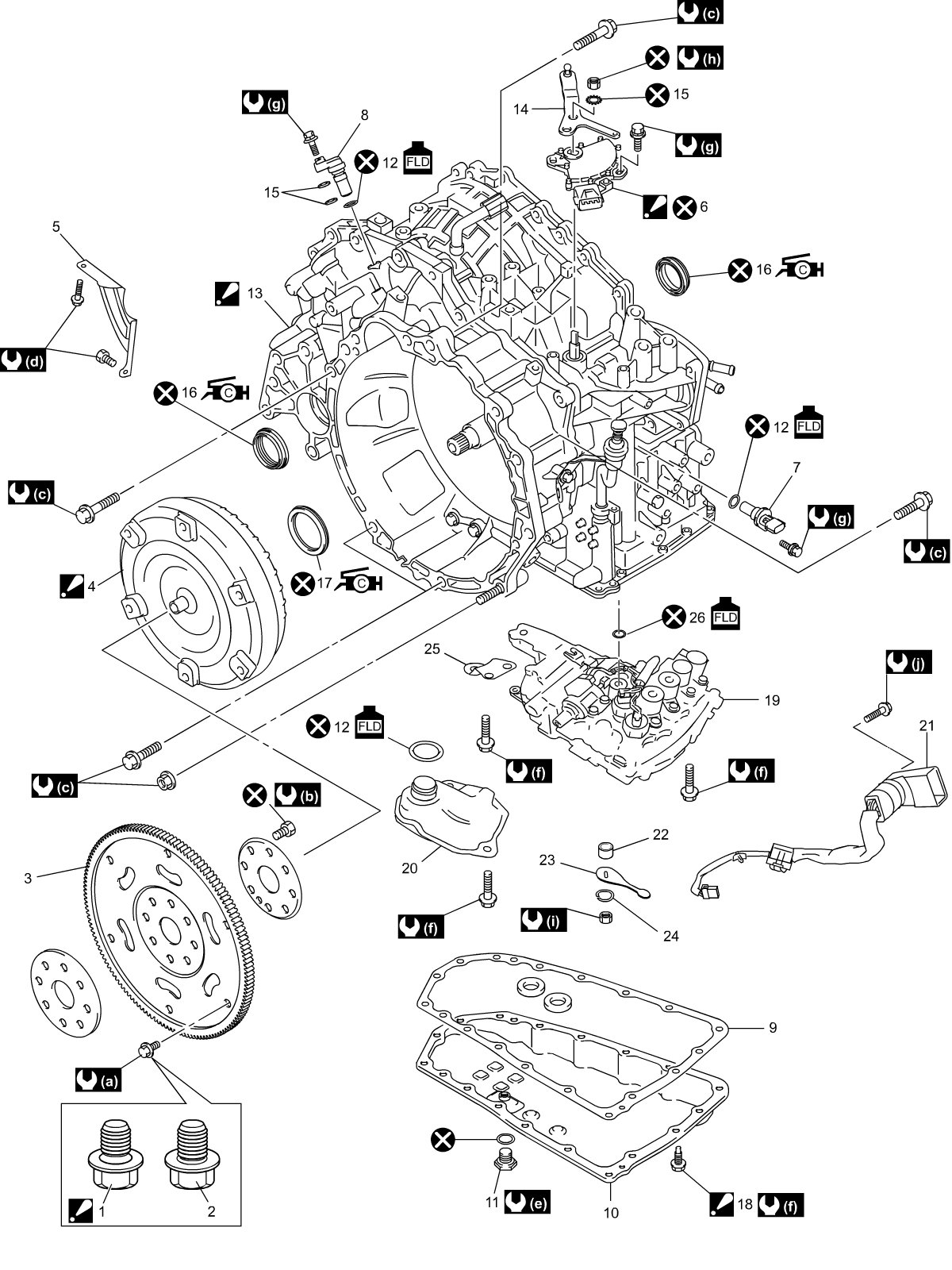

CVT Assembly Components




CVT Assembly Components





CVT Assembly Dismounting and Remounting Input Shaft Oil Seal Replacement CVT Oil Pan and Oil Strainer Removal and Installation
