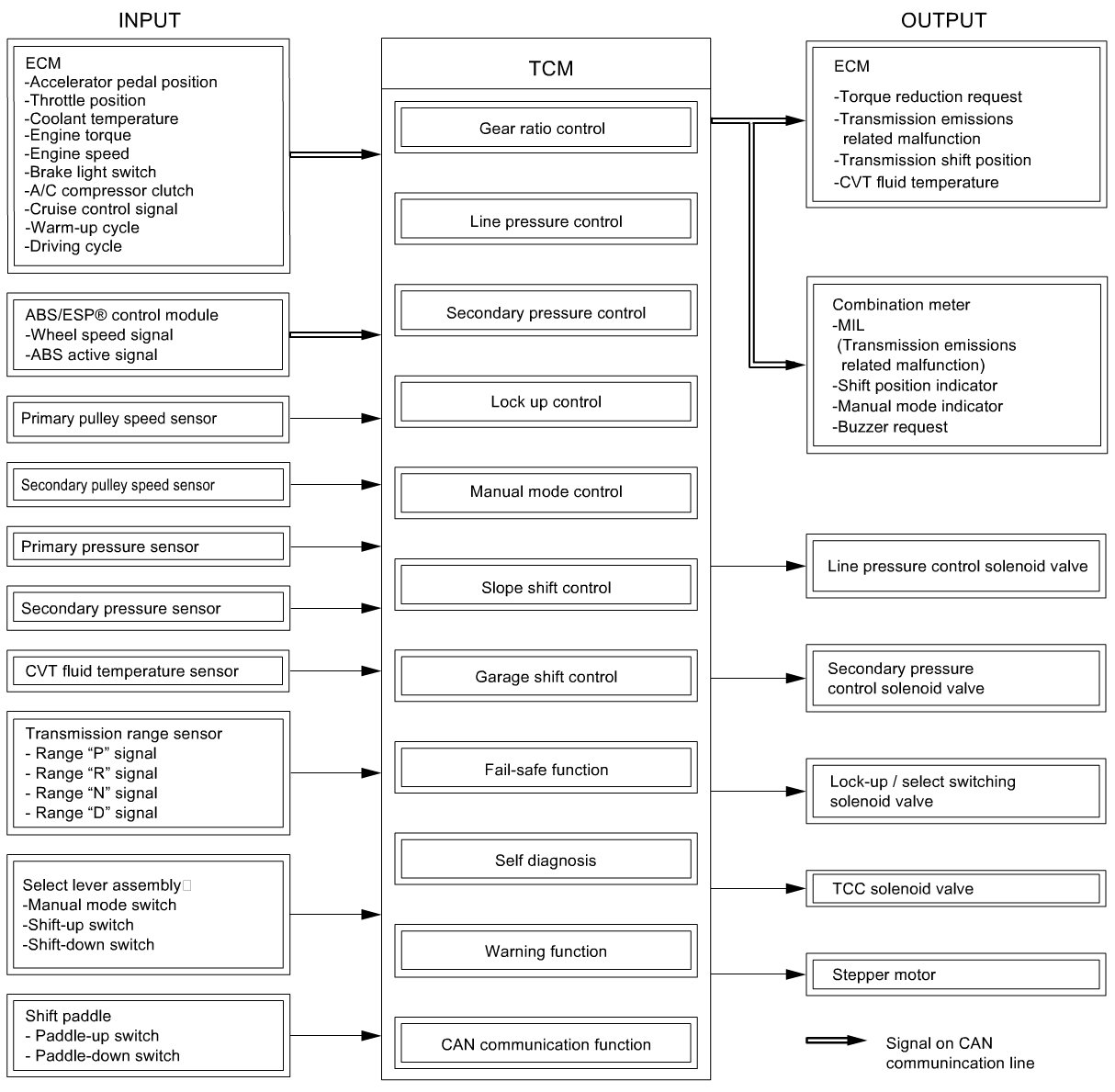

Electronic Shift Control Input / Output Diagram
Electronic Shift Control Input / Output Diagram
Electronic Shift Control Input / Output Diagram
