Suzuki
>>
2012
>>
SX4 4WD L4-2.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>

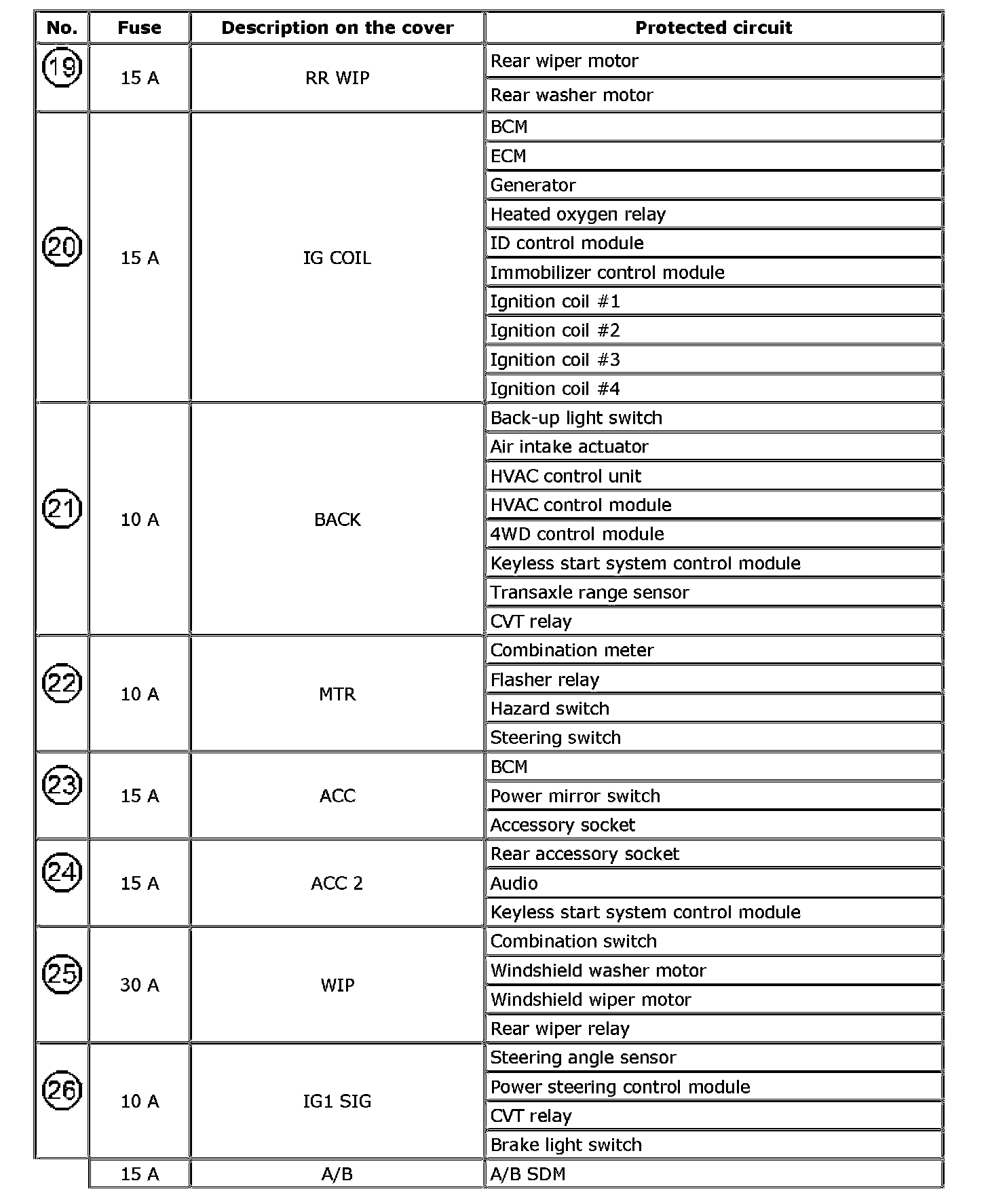

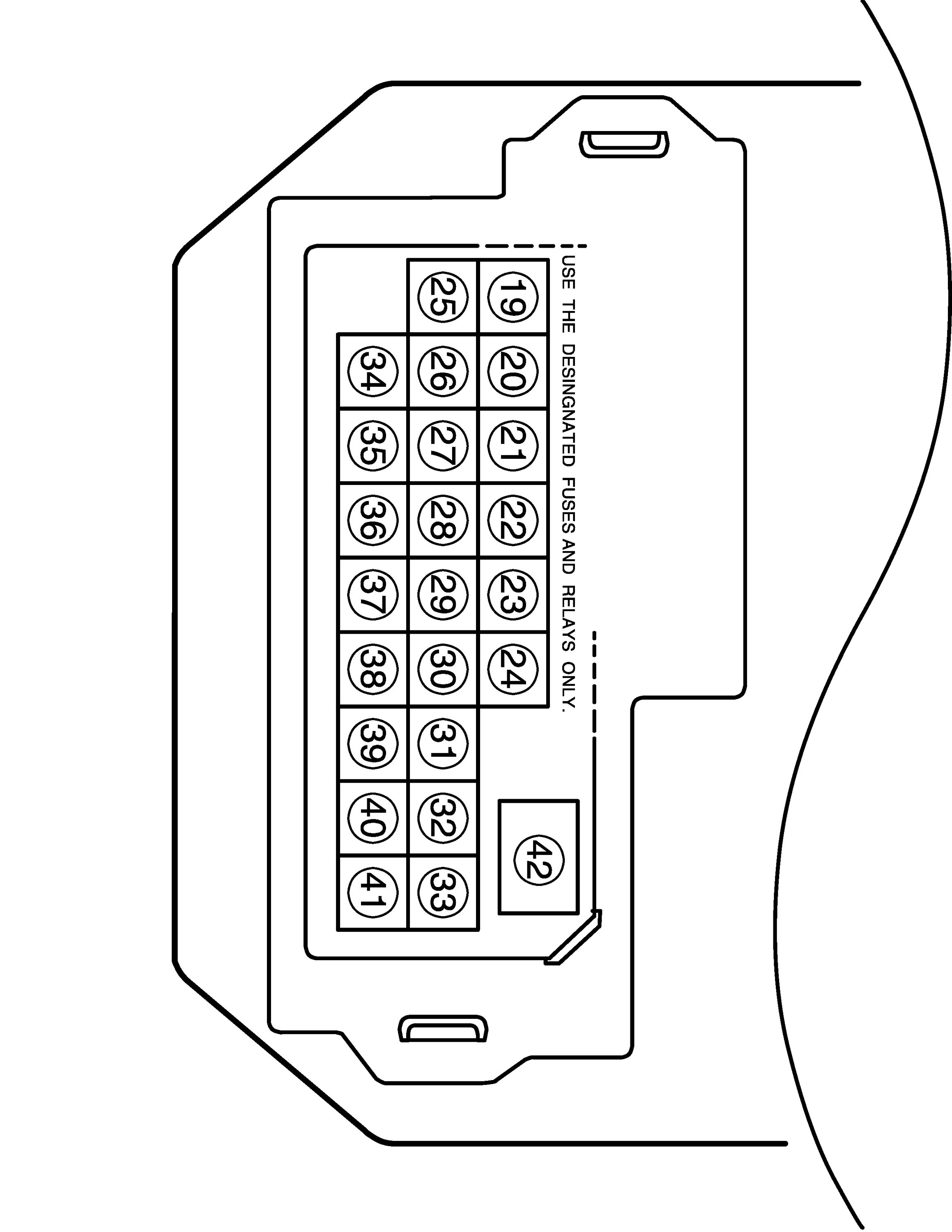

Individual Circuit Fuse Box No. 2 (In J/B)

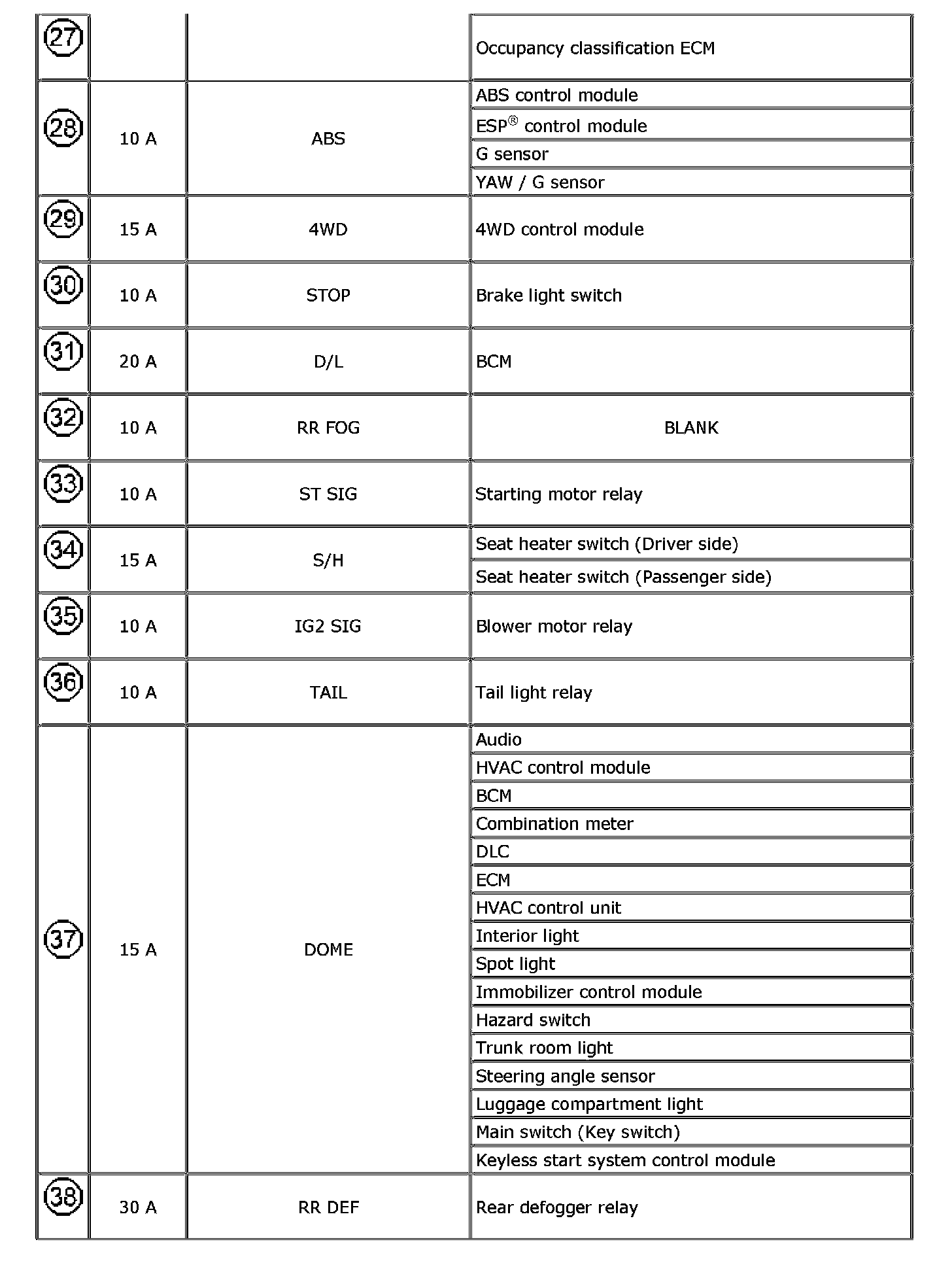

Individual Circuit Fuse Box No. 2 (In J/B)

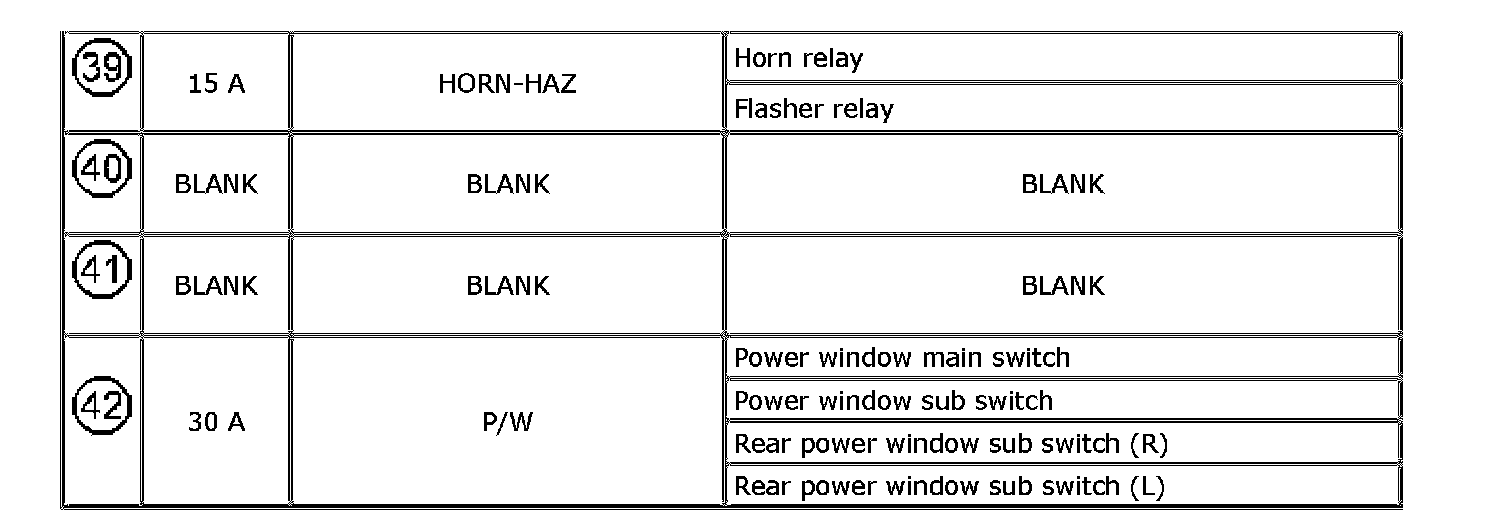

Individual Circuit Fuse Box No. 2 (In J/B)
