Door Switch
>>
Locations
>>
Rear
Rear
Rear

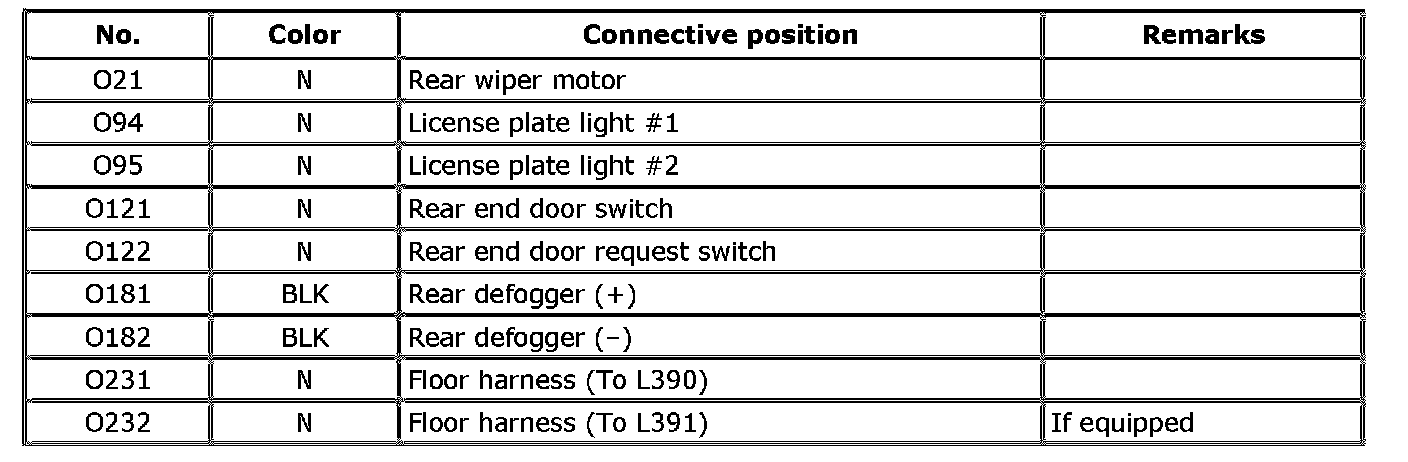

O: Rear End Door Harness, High Mounted Stop Light Wire
O: Rear End Door Harness
