Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Remote Switch >> Testing and Inspection

Remote Switch: Testing and Inspection

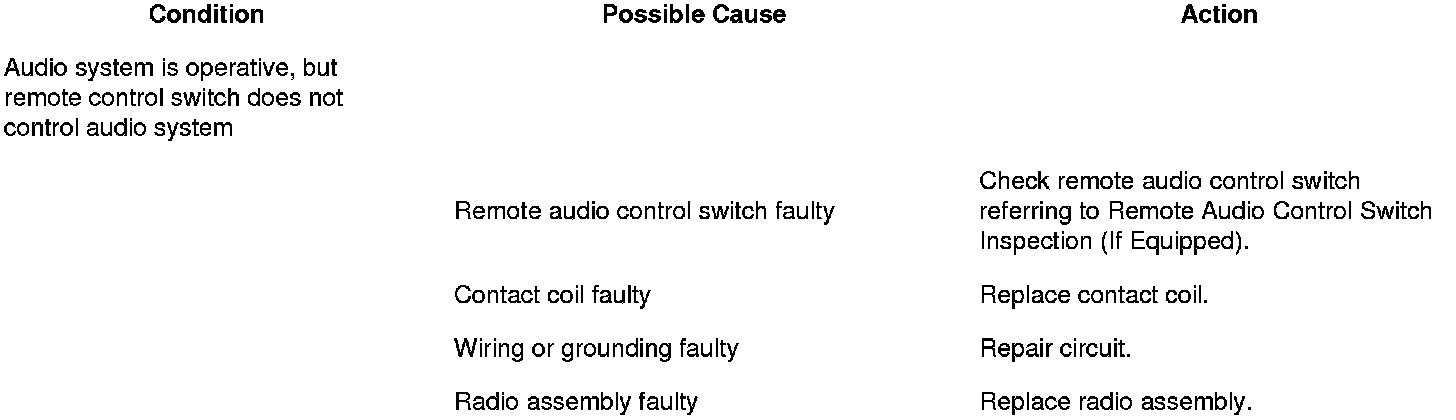

Remote Audio Control Switch Symptom Diagnosis (If Equipped)
