Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Except Advanced Air Bag

Except Advanced Air Bag

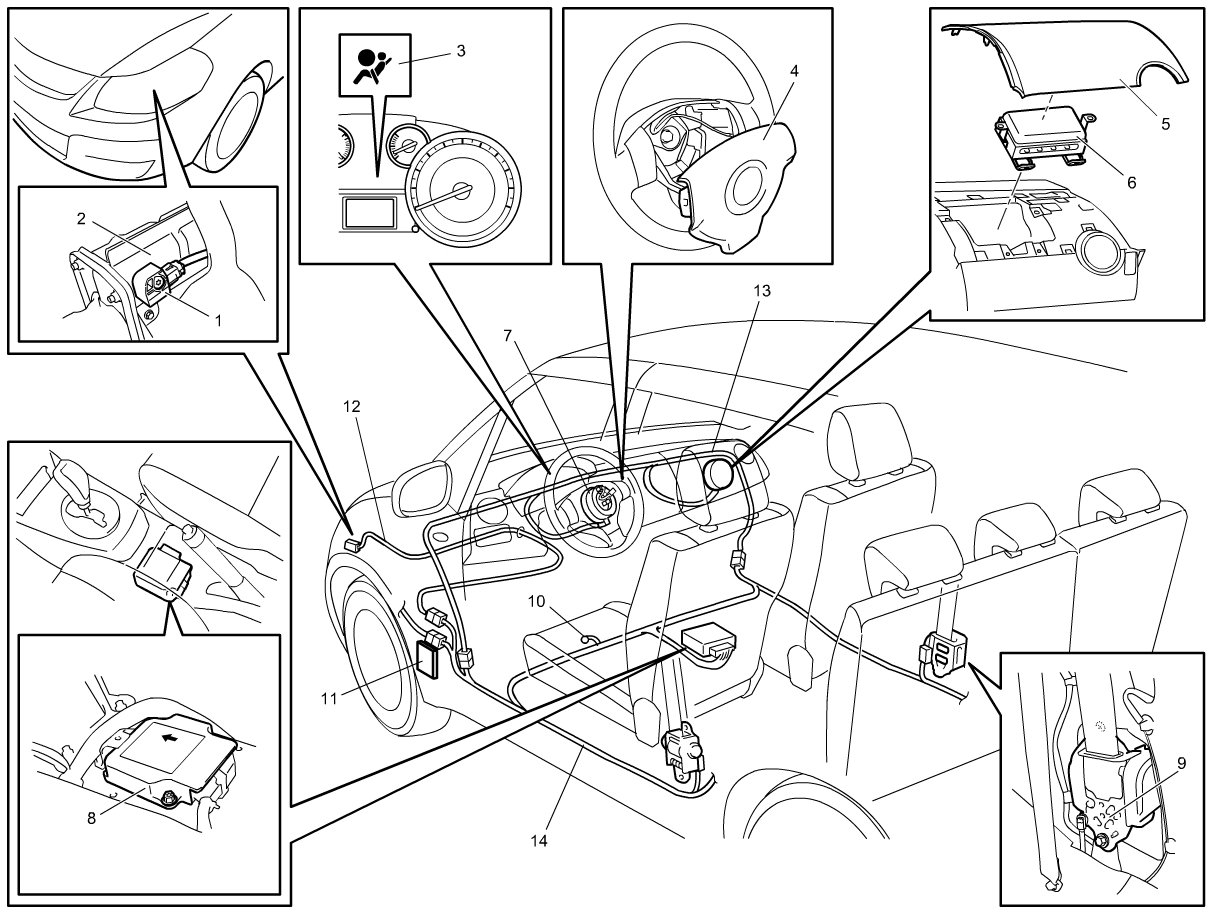

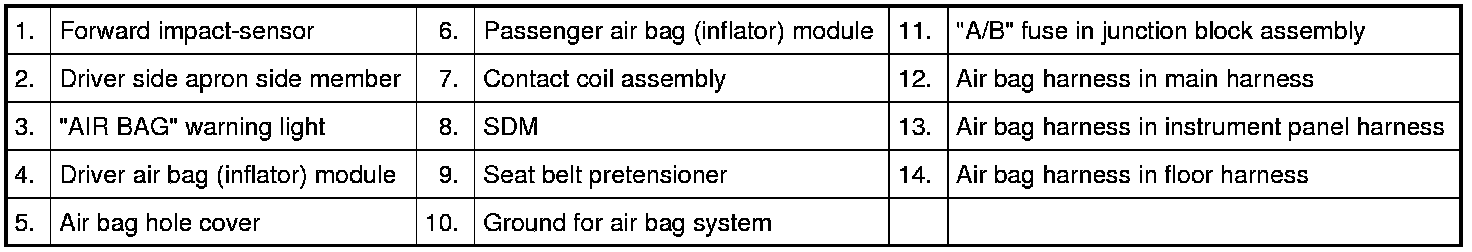

Air Bag System Component, Wiring and Connector Location
