Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Locations >> Electronic Stability Program (ESP)

Electronic Stability Program (ESP)

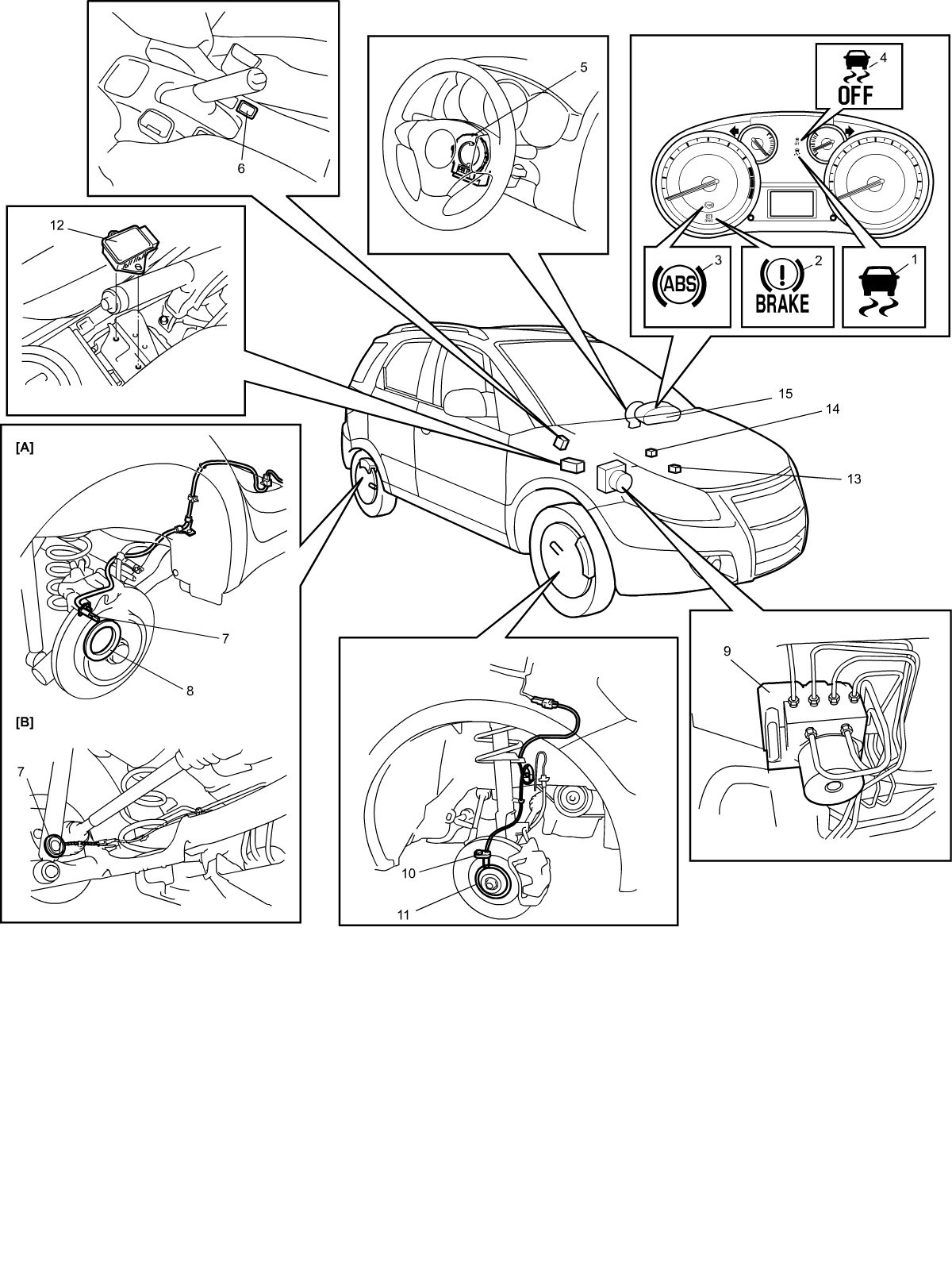

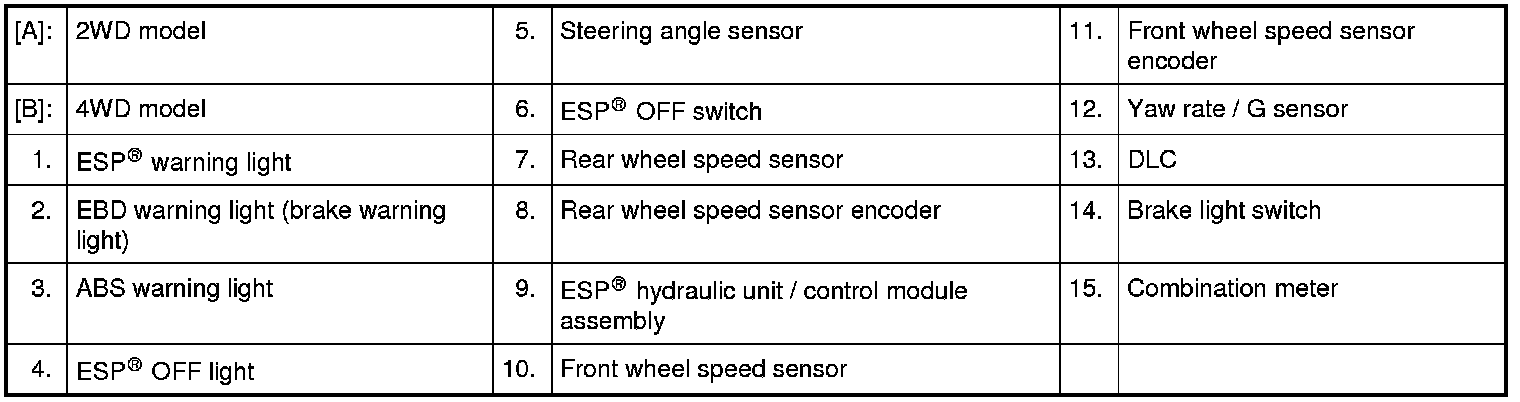

Electronic Stability Program Component Location
