Suzuki
>>
2012
>>
SX4 4WD L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Electrical Diagrams
>>

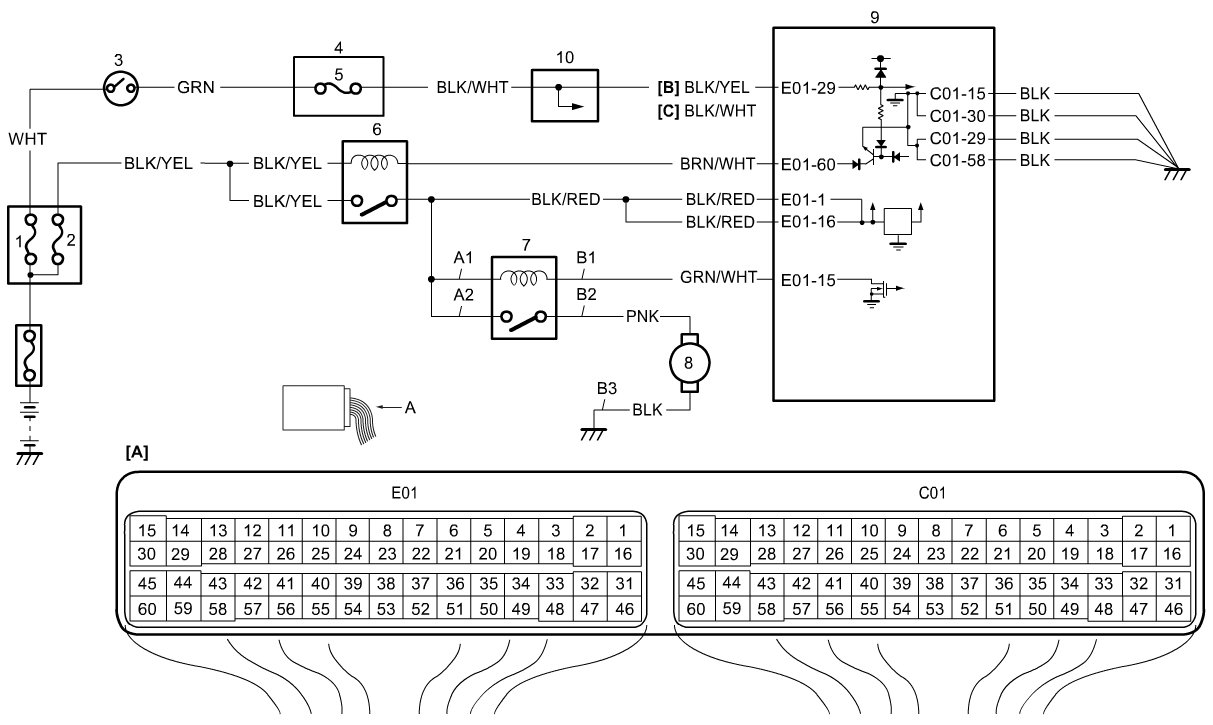

Fuel Pump Control System Circuit Diagram
Fuel Pump Control System Circuit Diagram
Fuel Pump

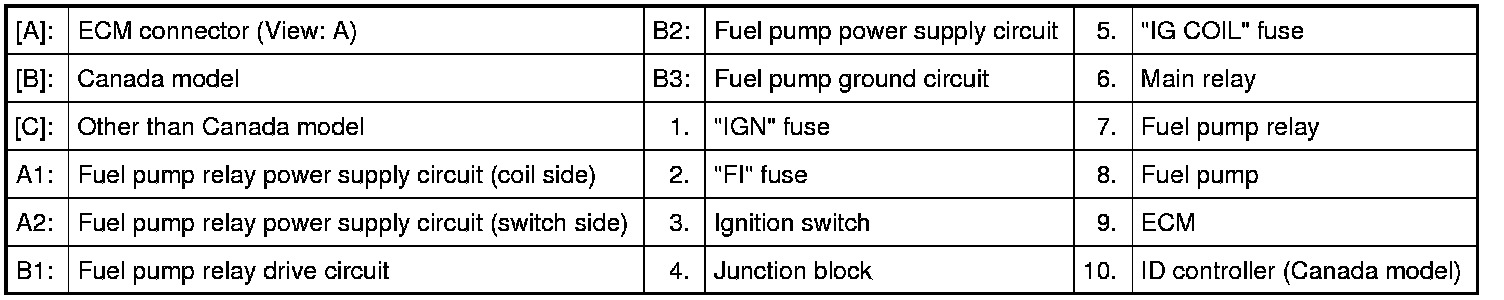

Control System Circuit Diagram
Wiring Diagram
