Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Locations >> Harness Locations >> Around Main Floor

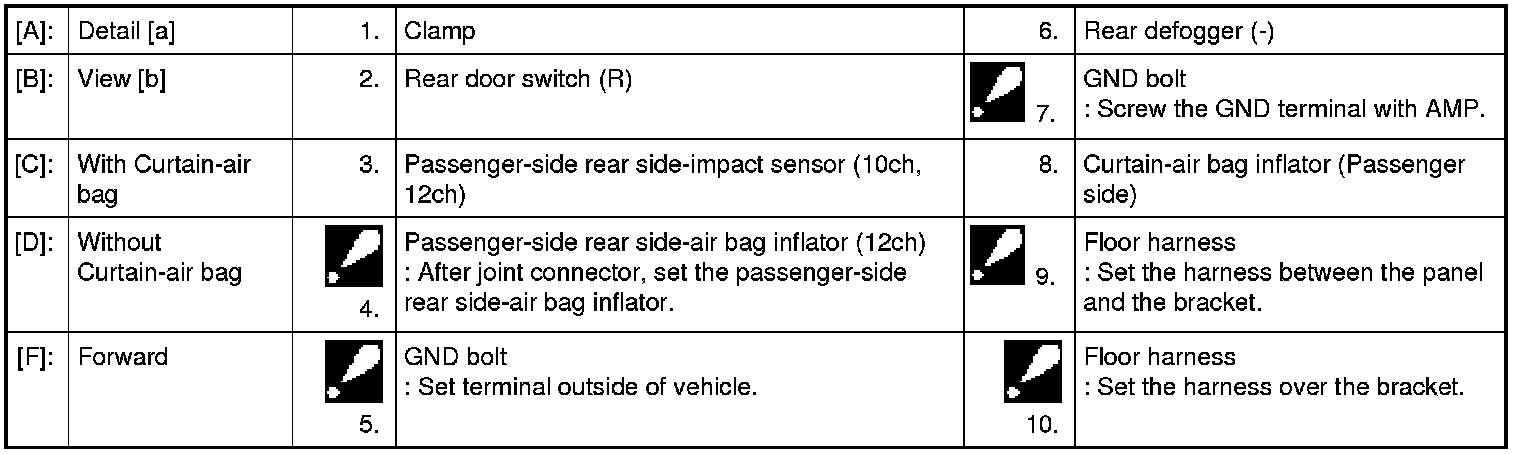

Around Main Floor

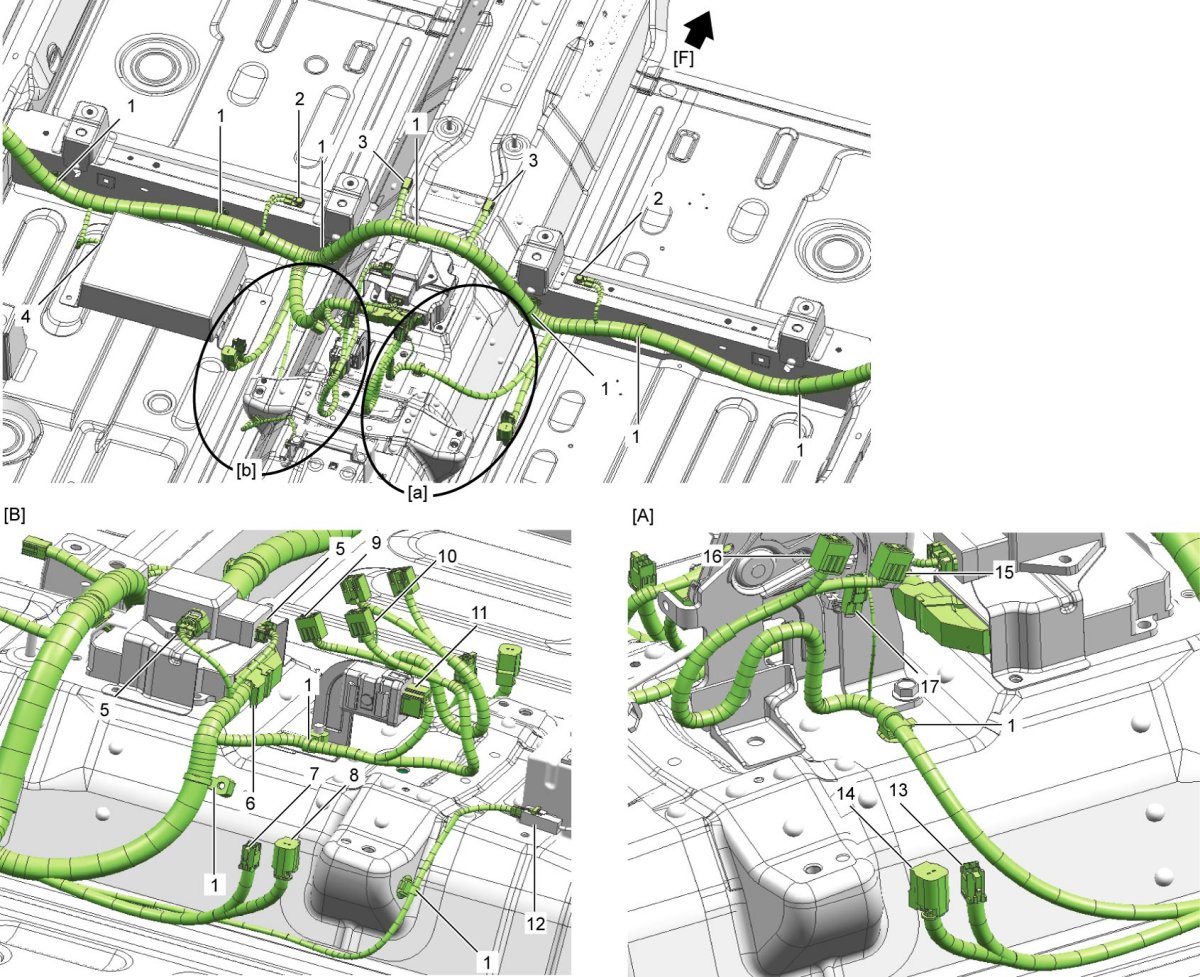

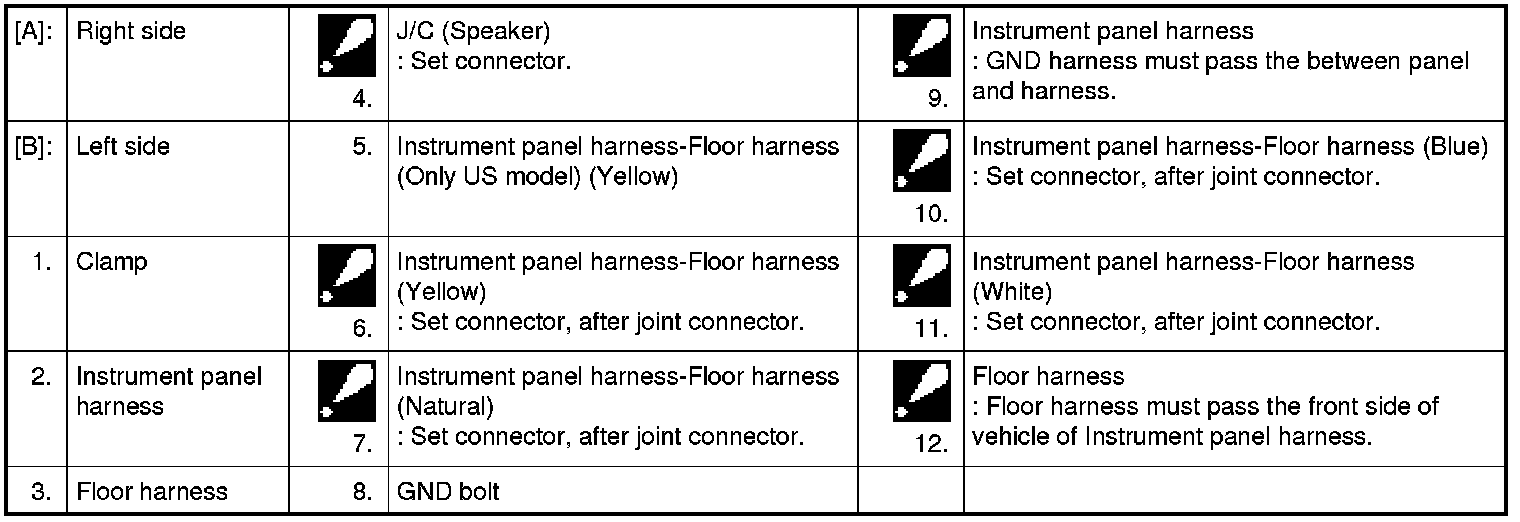

Around Main Floor

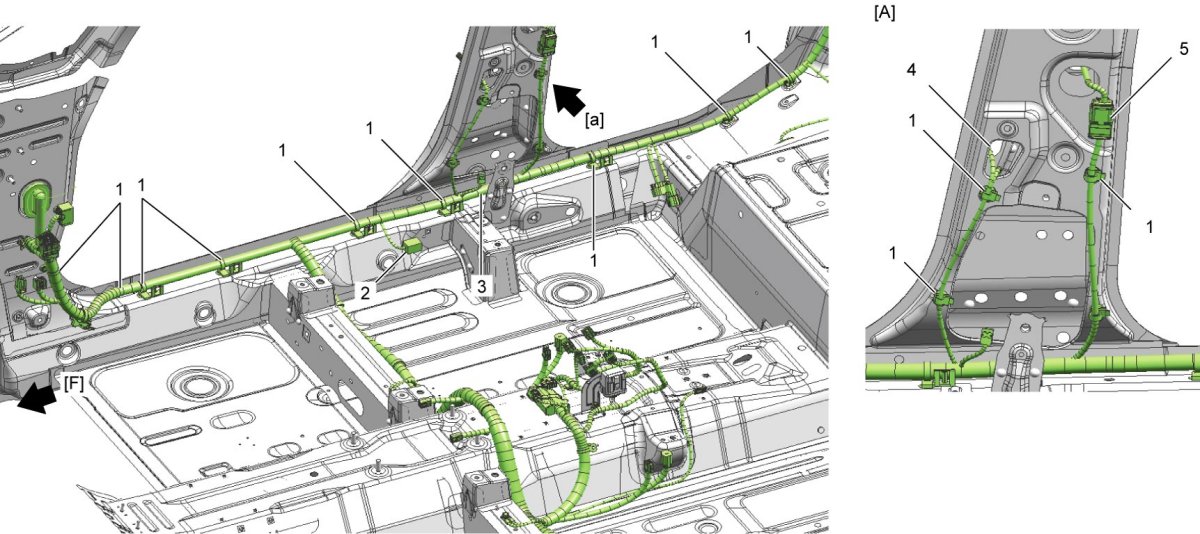

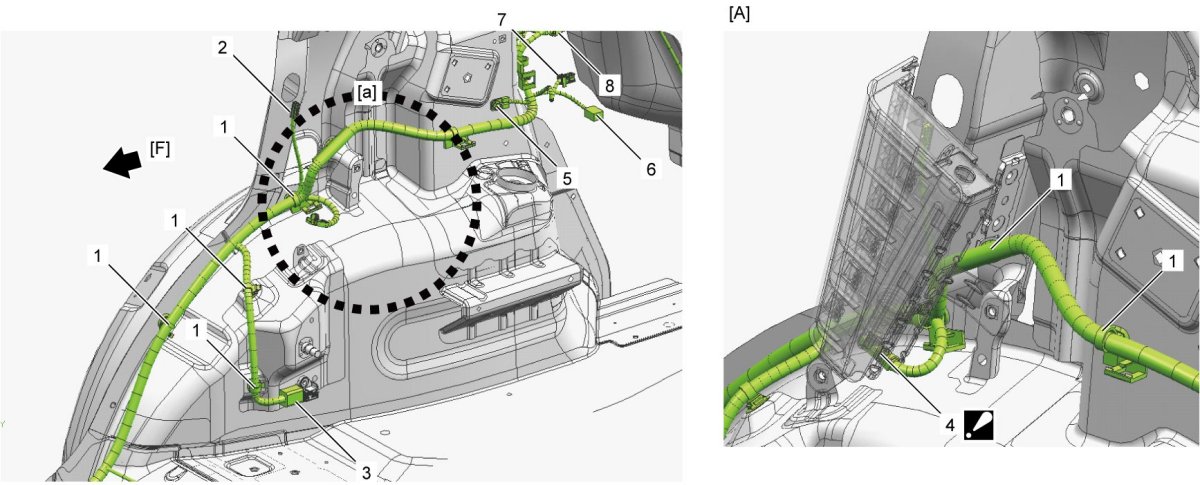

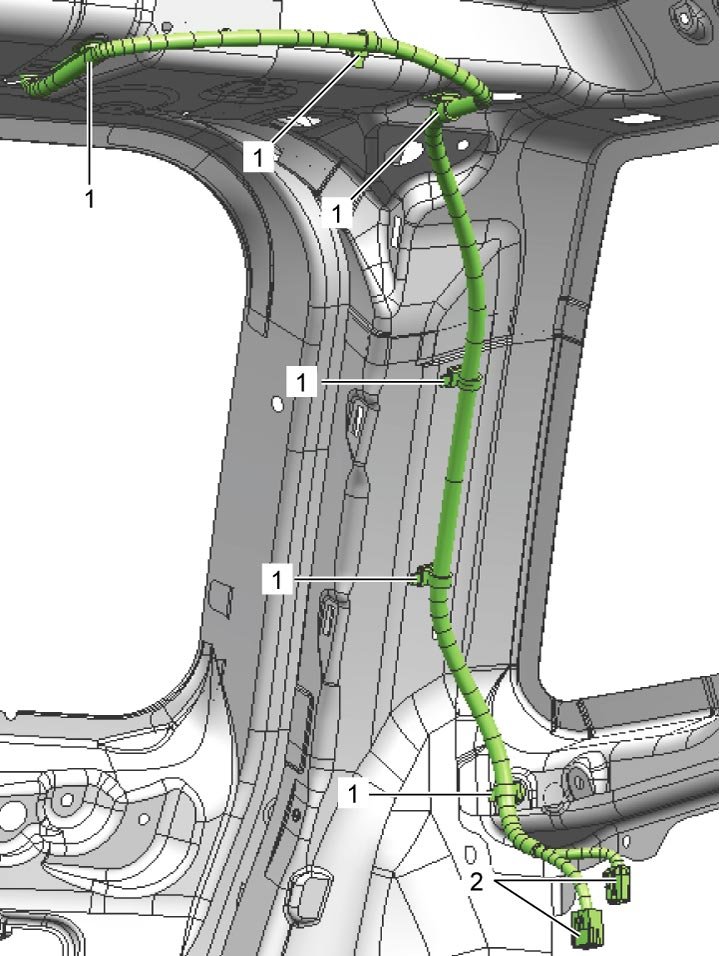

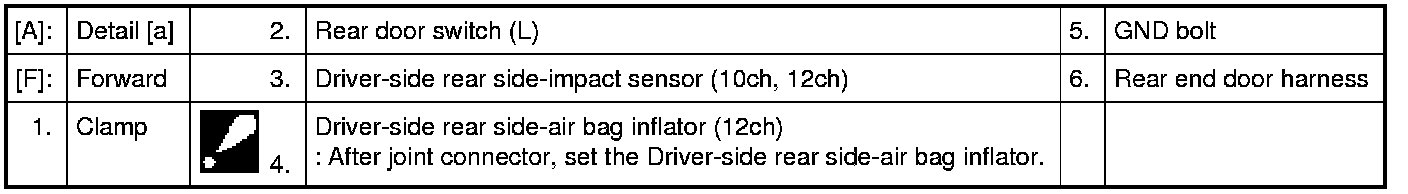

Front Part

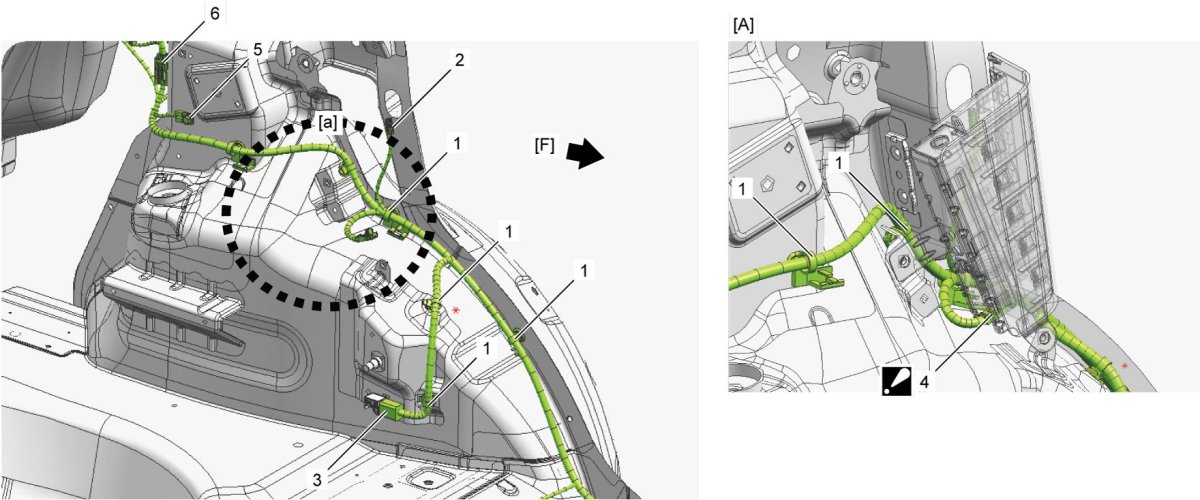

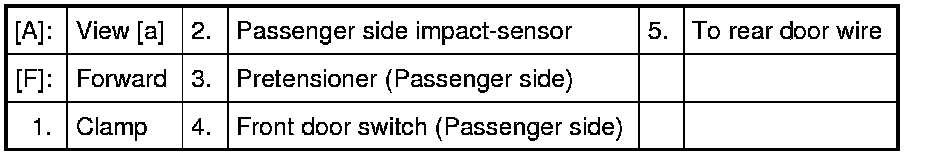

Right Side (Hatchback)

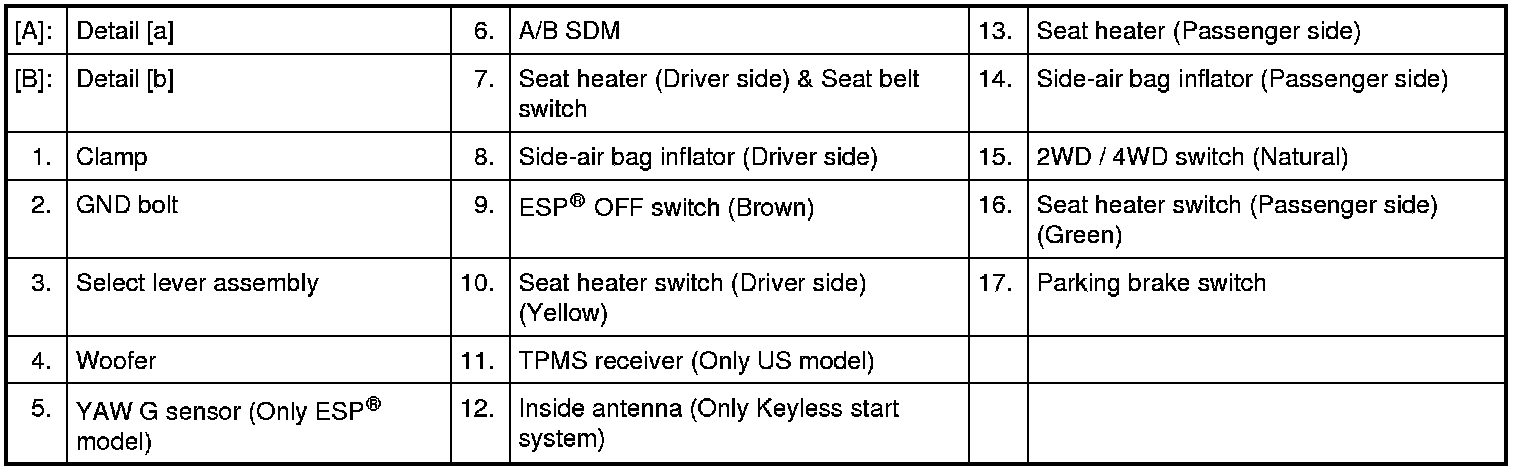

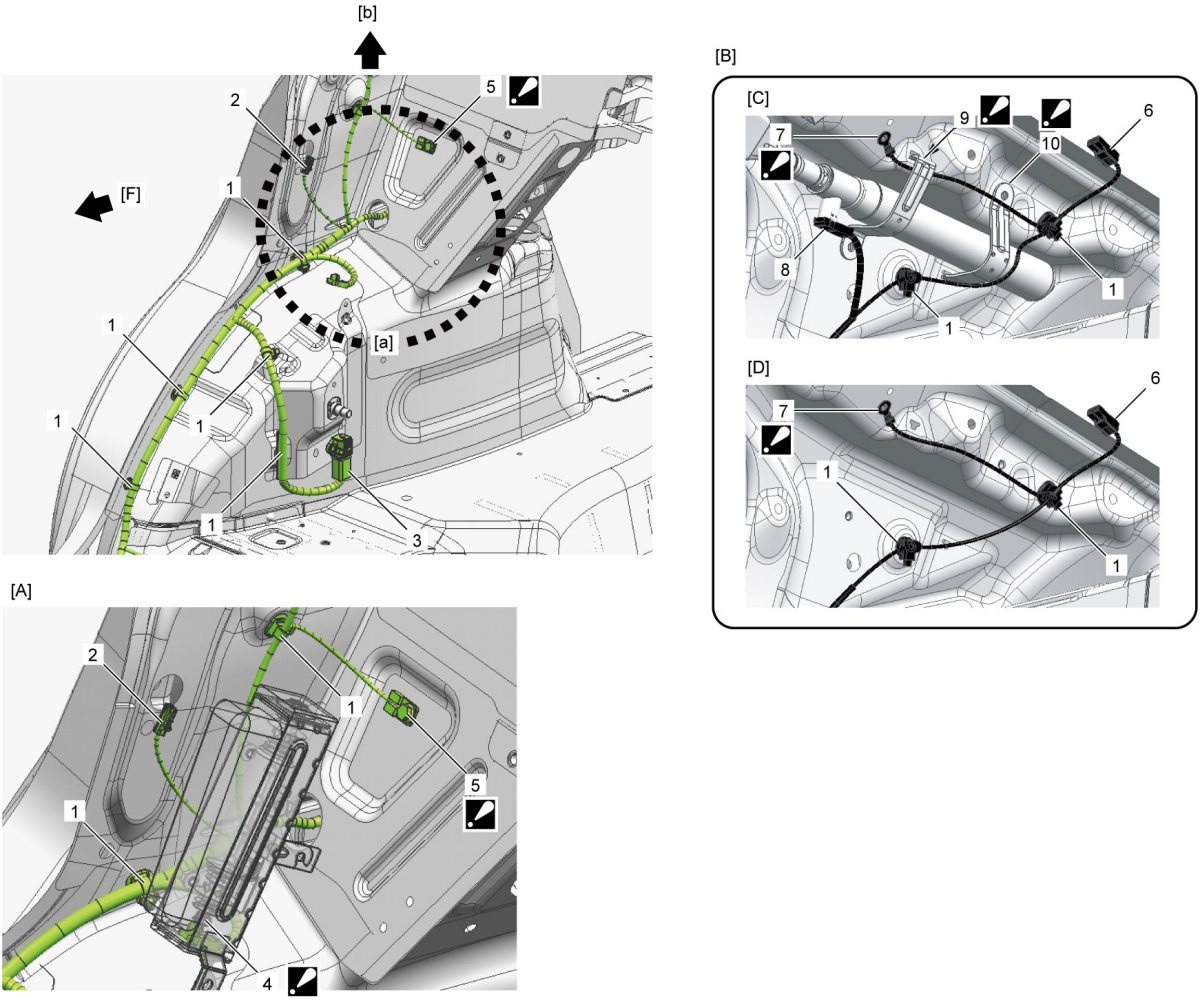

Left Side (Hatchback)

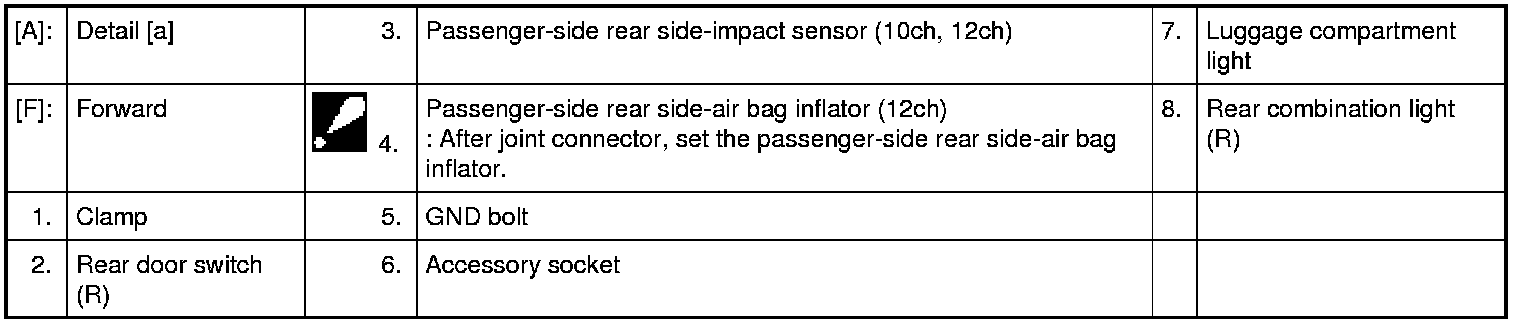

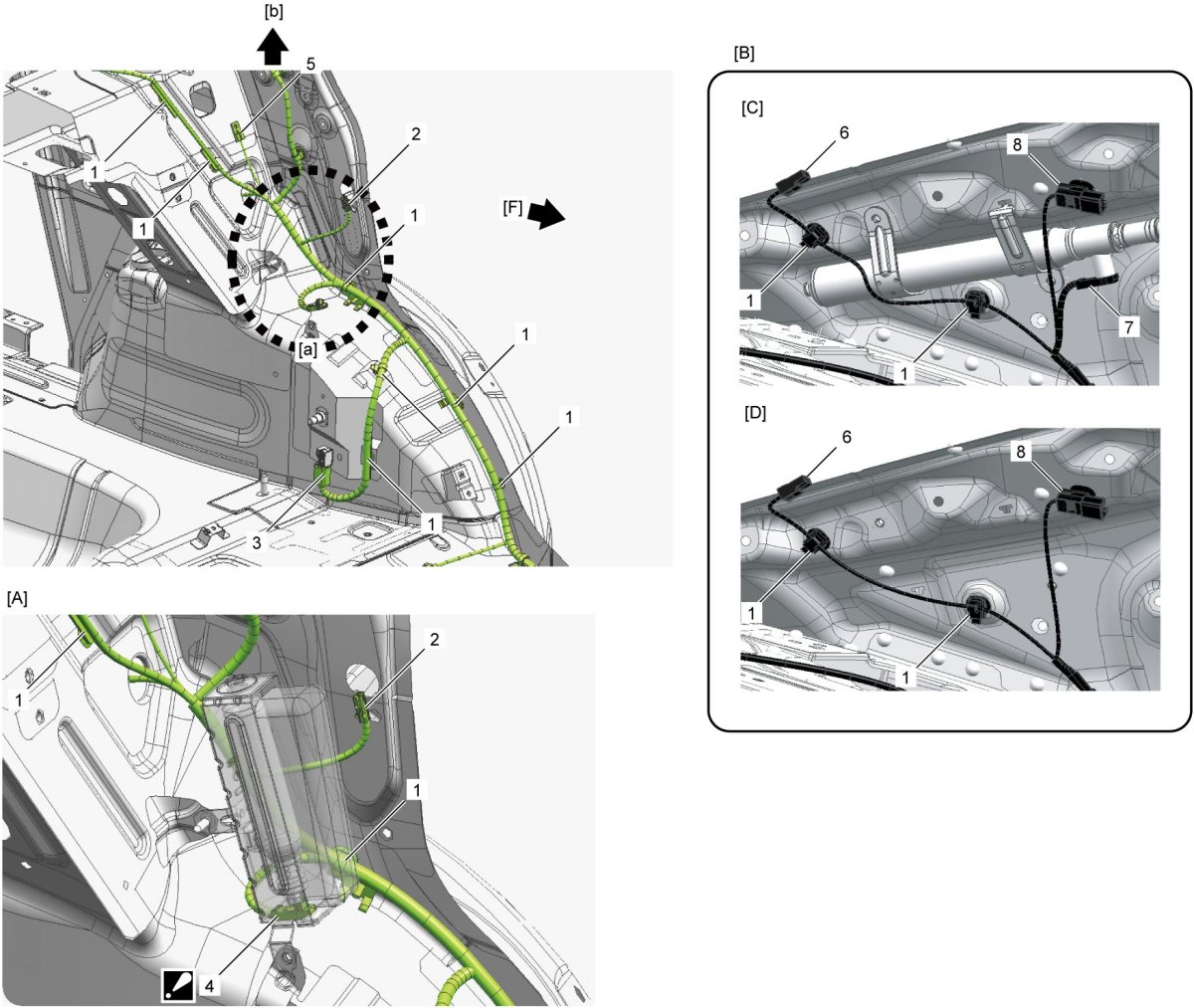

Right Side (Sedan)

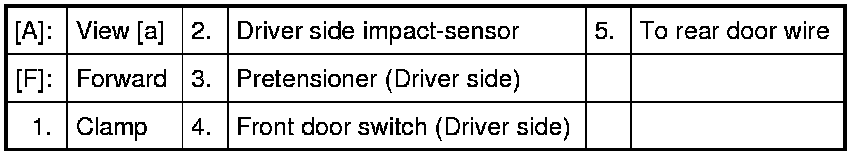

Left Side (Sedan)

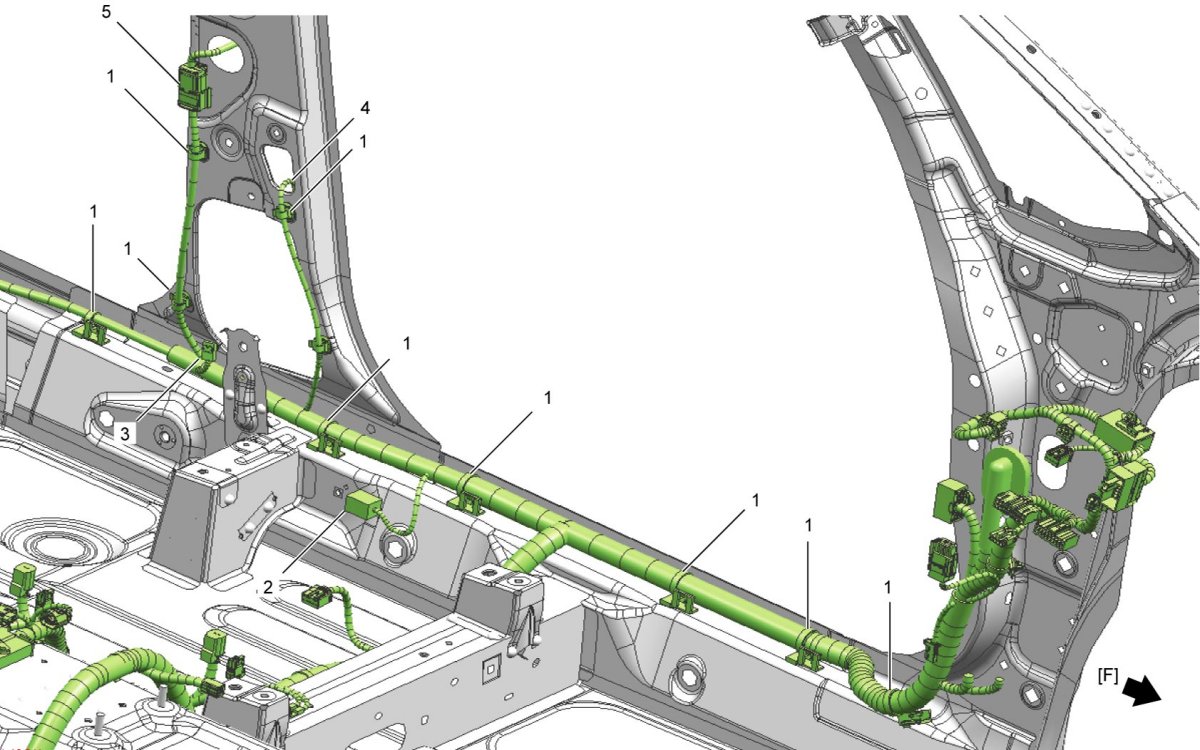

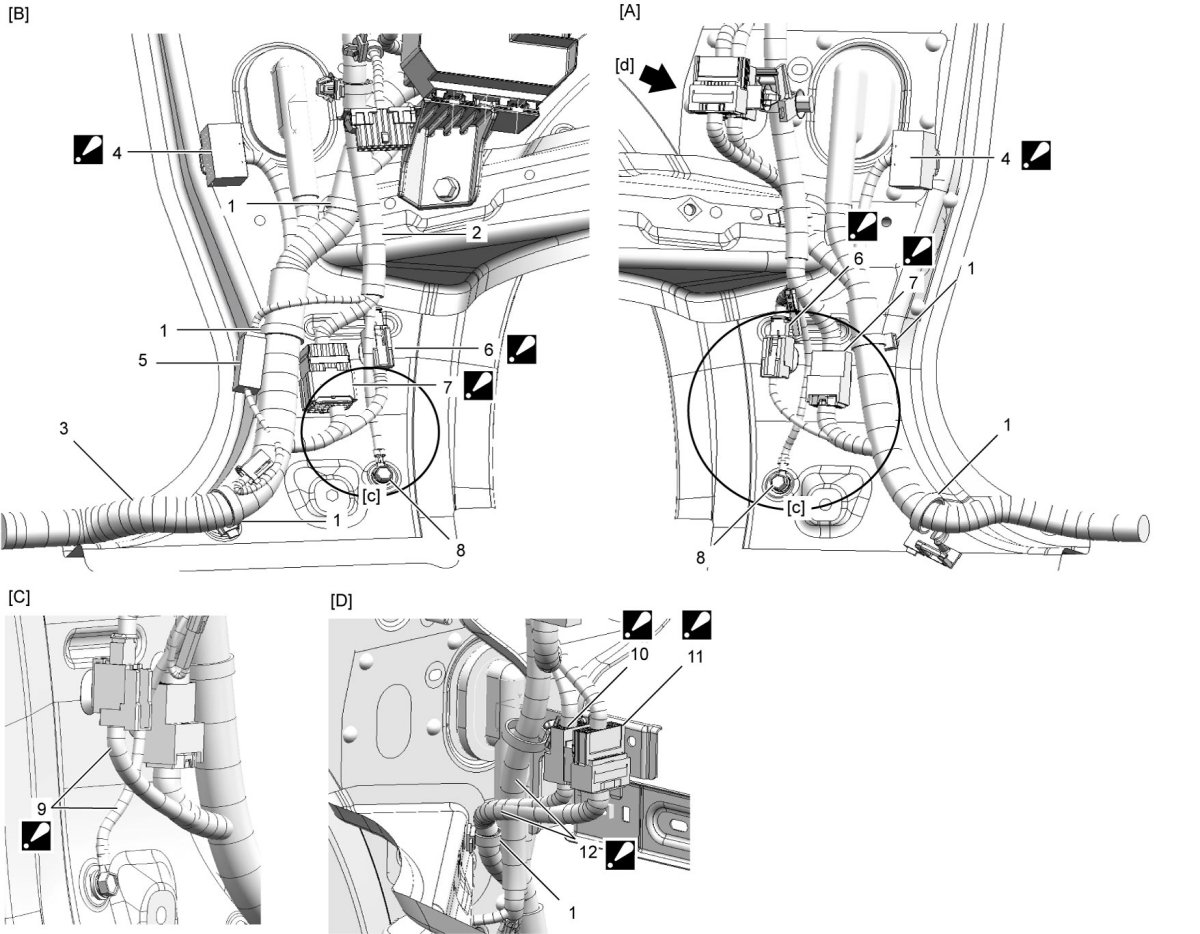

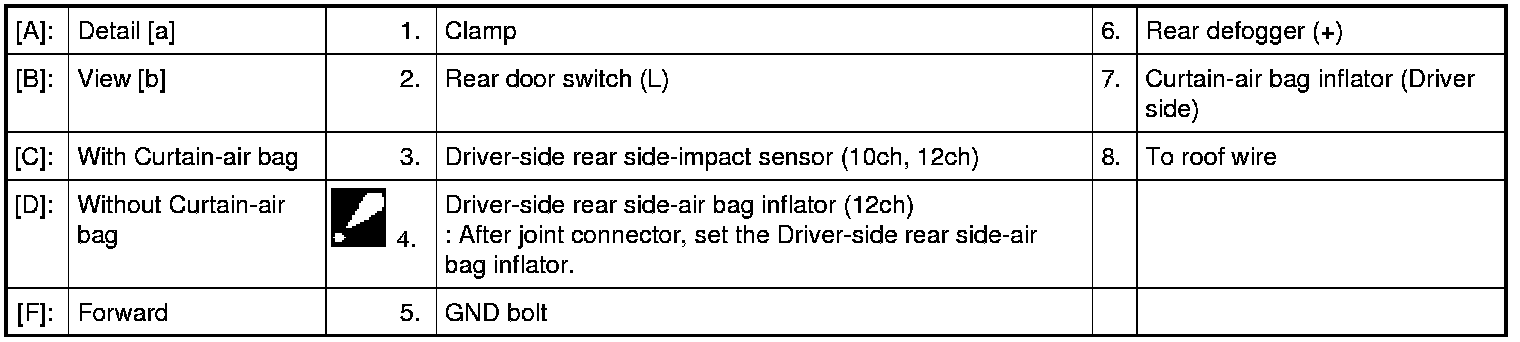

Rear Part (Hatchback)
