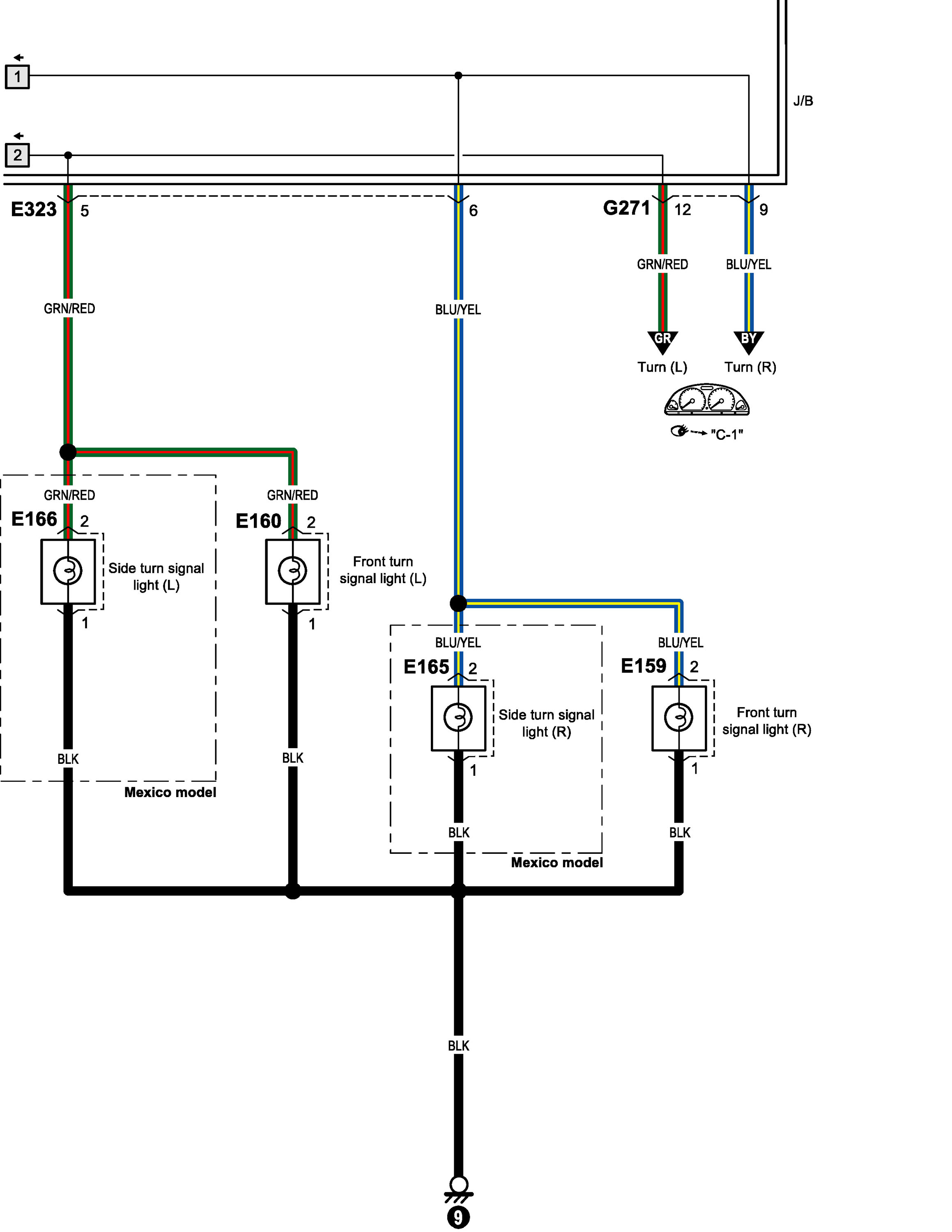

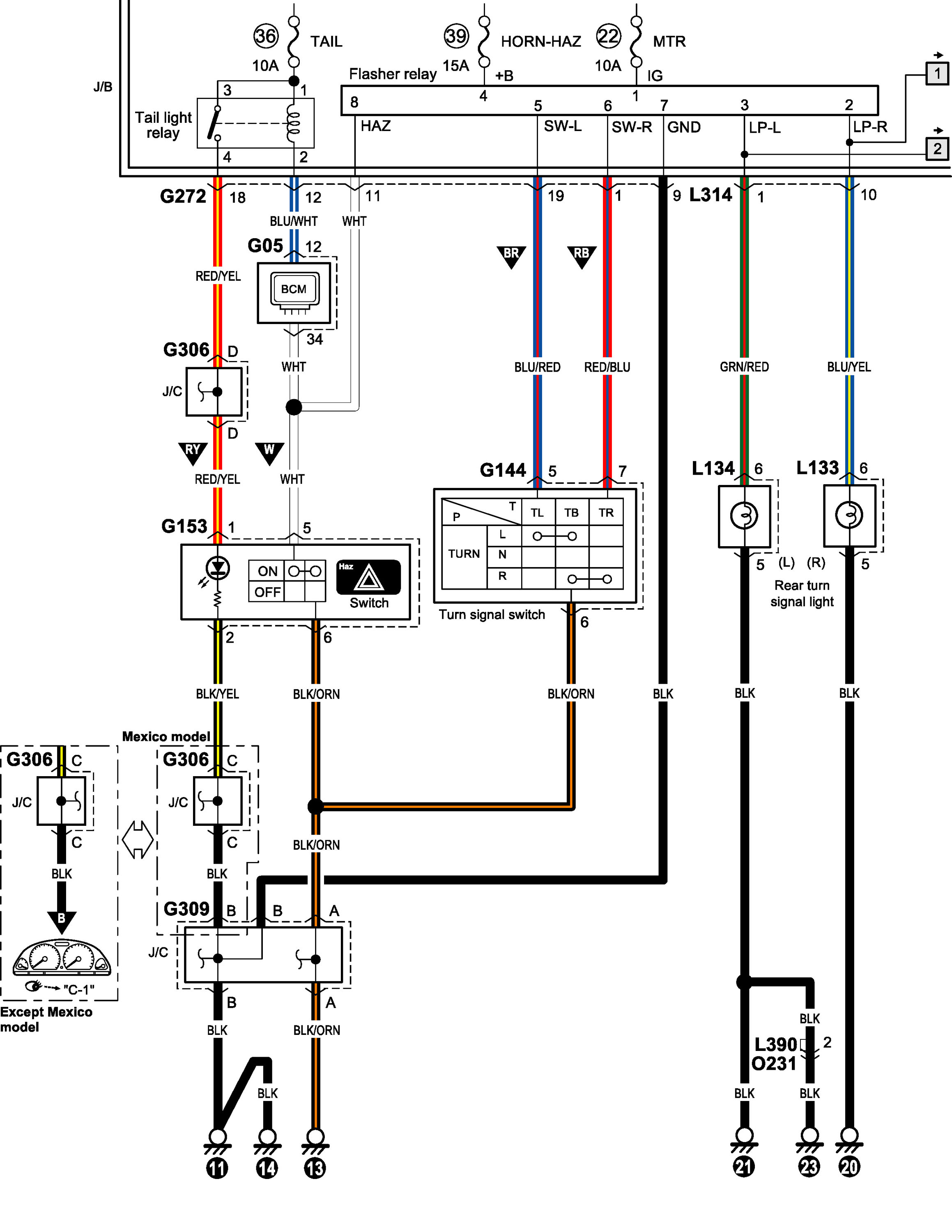

D-6 Turn Signal and Hazard Warning Light System Circuit Diagram (Hatchback)
D-6 Turn Signal and Hazard Warning Light System Circuit Diagram (Hatchback)
D-6 Turn Signal and Hazard Warning Light System Circuit Diagram (Hatchback)
