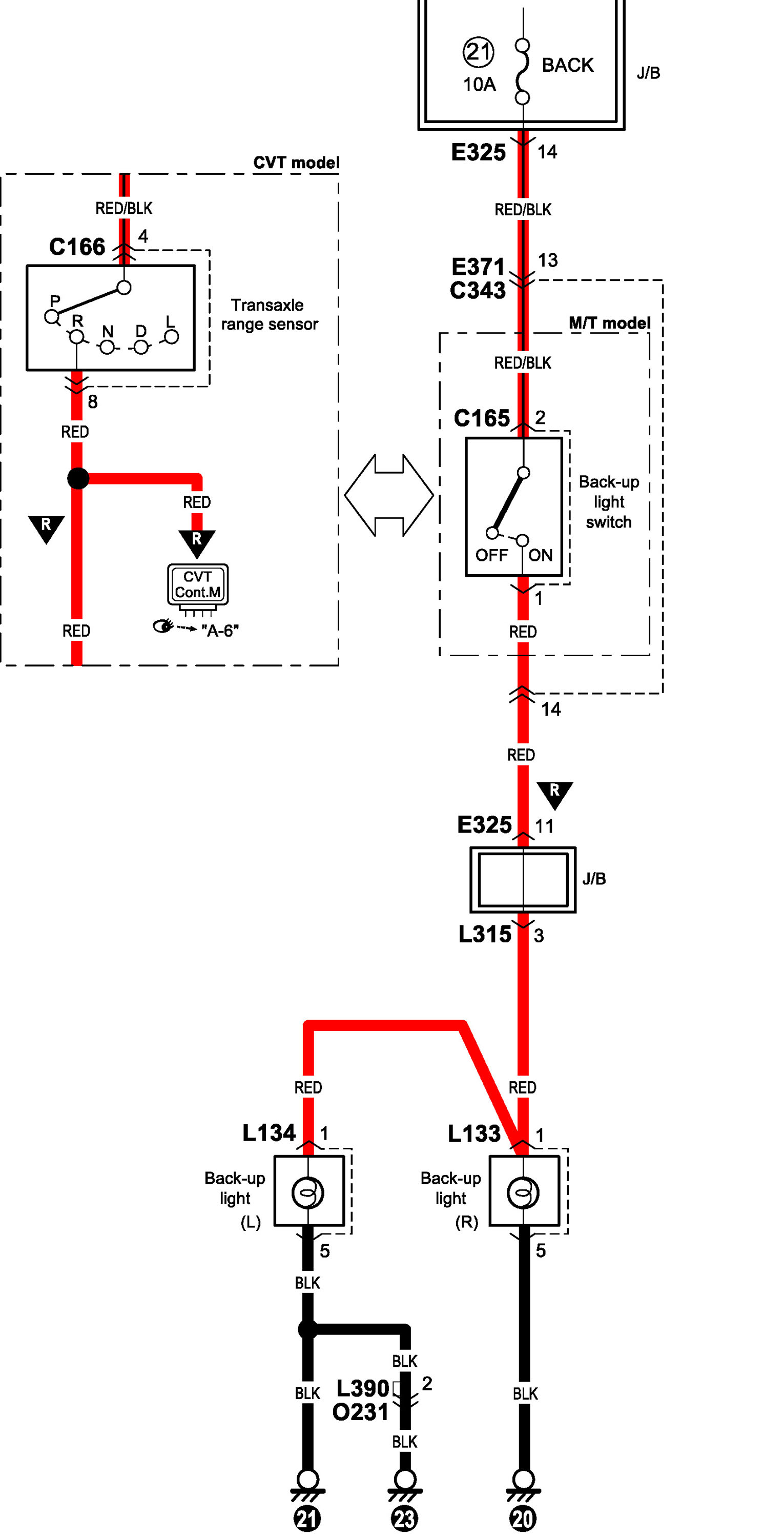

D-8 Back-Up Light System Circuit Diagram (Hatchback)
D-8 Back-Up Light System Circuit Diagram (Hatchback)
D-8 Back-Up Light System Circuit Diagram (Hatchback)
