Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Auto A/C System Circuit Diagram

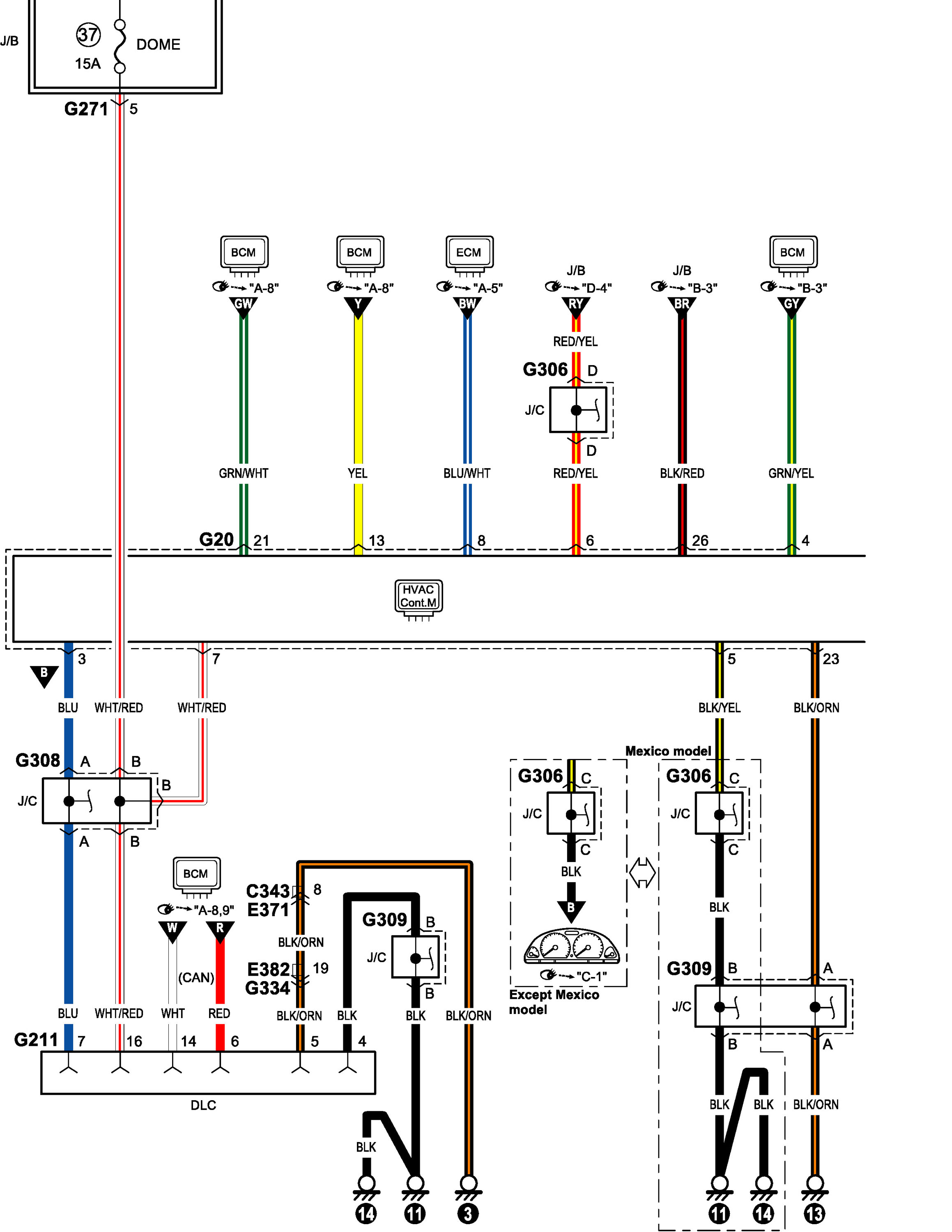

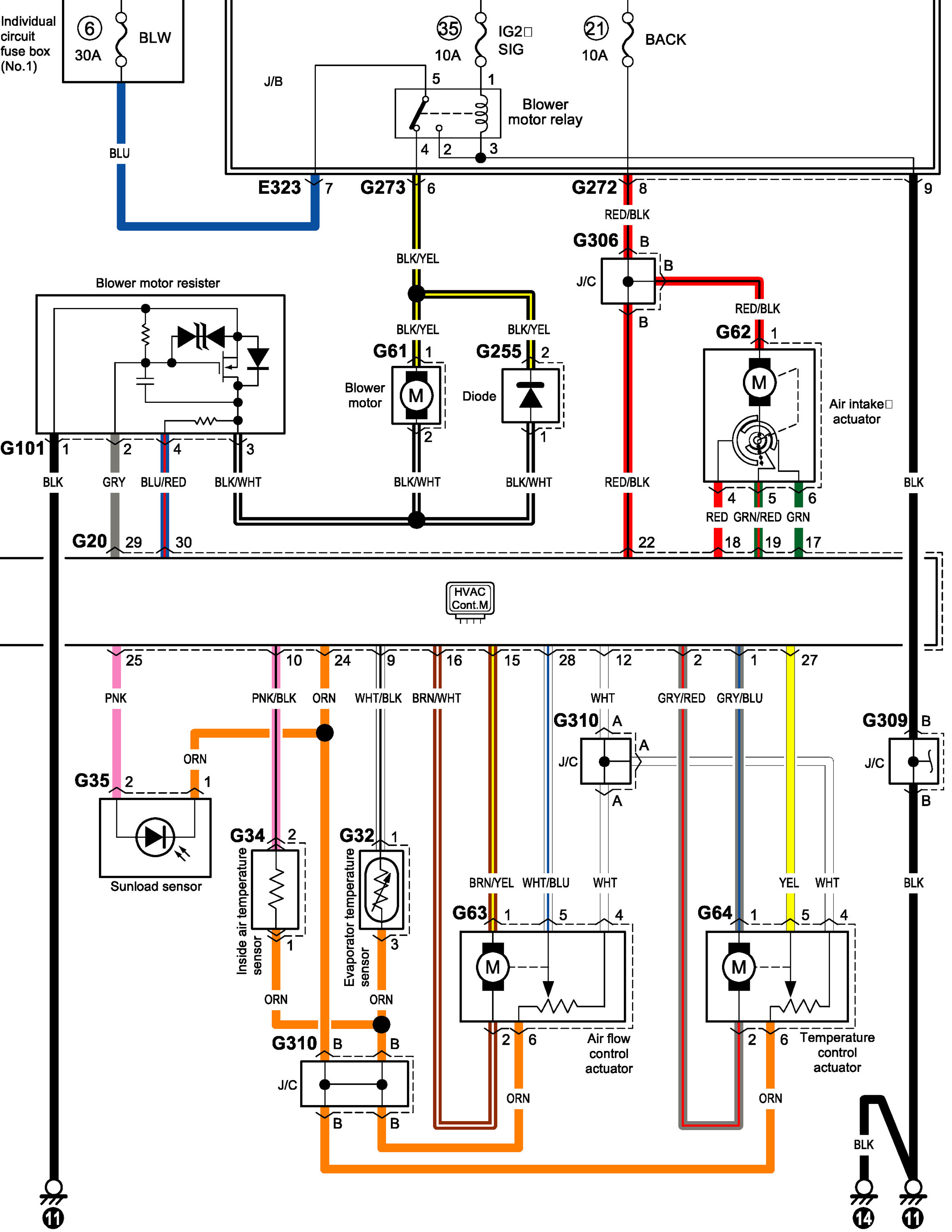

Auto A/C System Circuit Diagram

E-2 Auto A/C System Circuit Diagram
