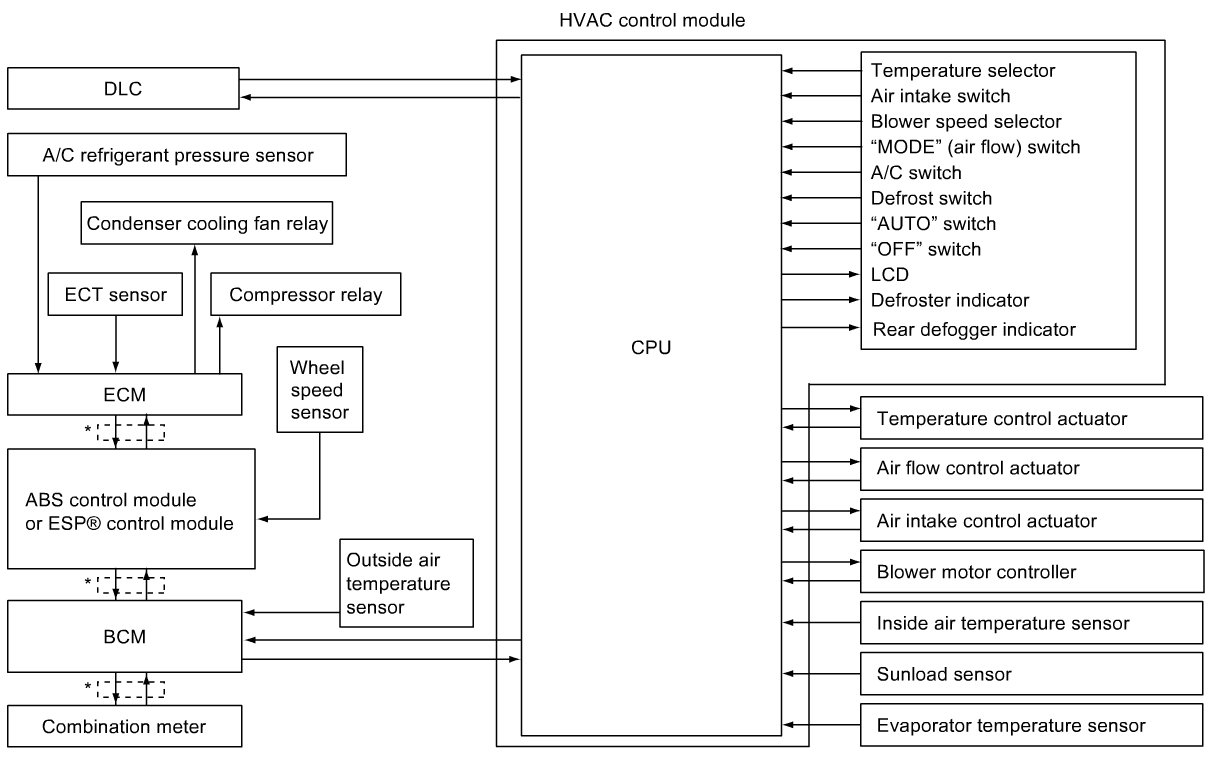

Auto A/C Electronic Control Input / Output Diagram
Auto A/C Electronic Control Input / Output Diagram
Auto A/C Electronic Control Input / Output Diagram
