Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Timing Cover >> Service and Repair >> Timing Chain Cover Components

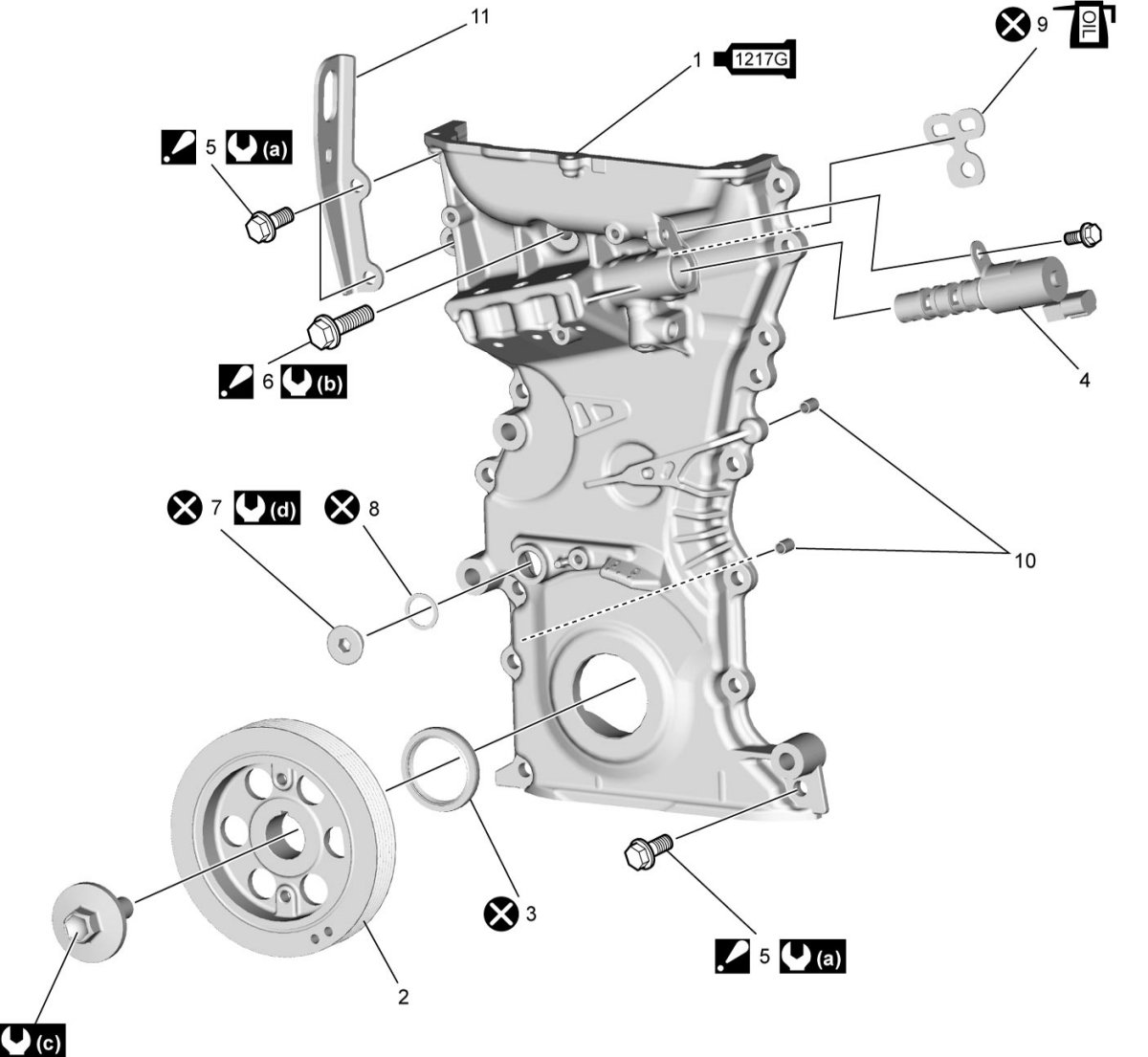

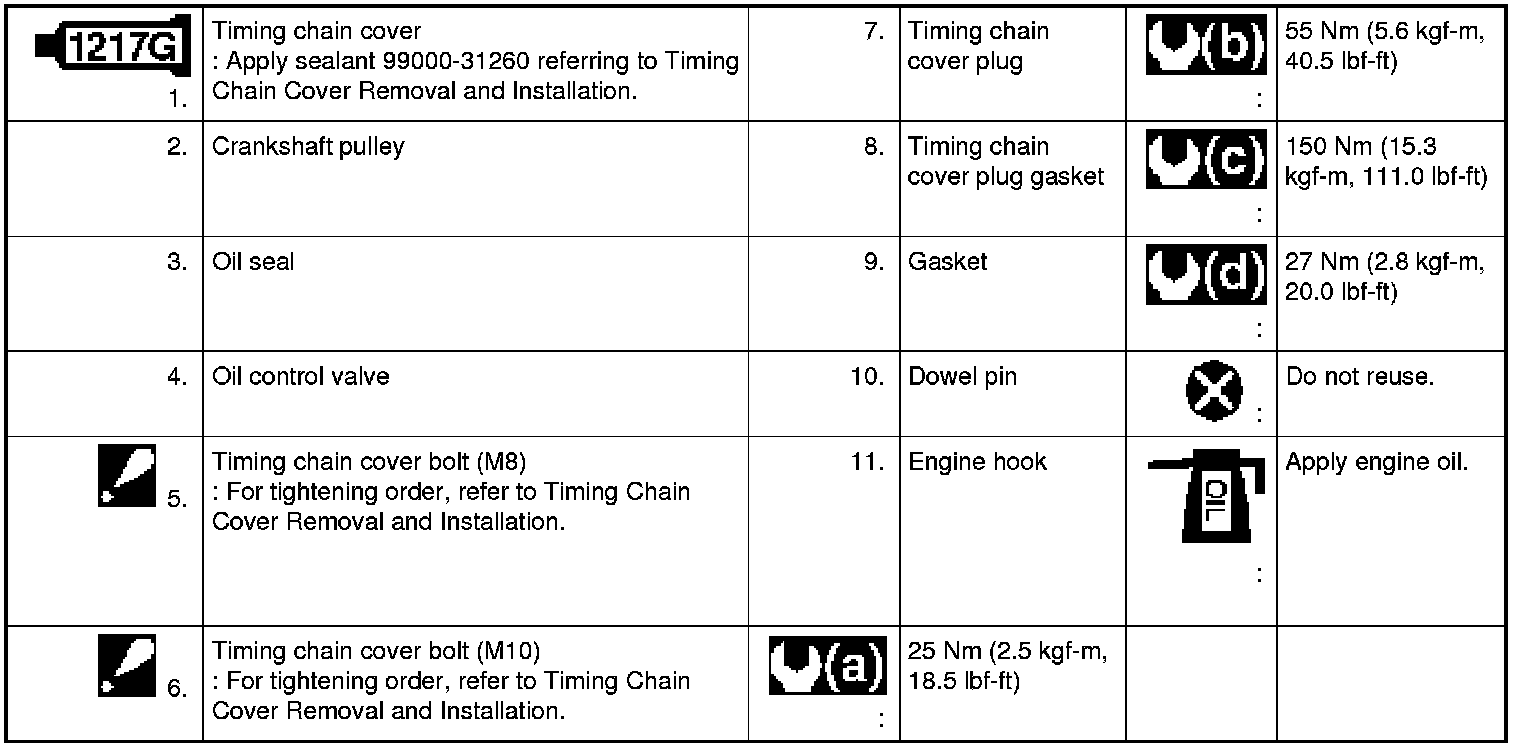

Timing Chain Cover Components




Timing Chain Cover Components





Timing Chain Cover Removal and Installation Timing Chain Cover Removal and Installation Timing Chain Cover Removal and Installation
