Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> System Diagram >> F-4 Power Steering System Circuit Diagram (Mexico Model)

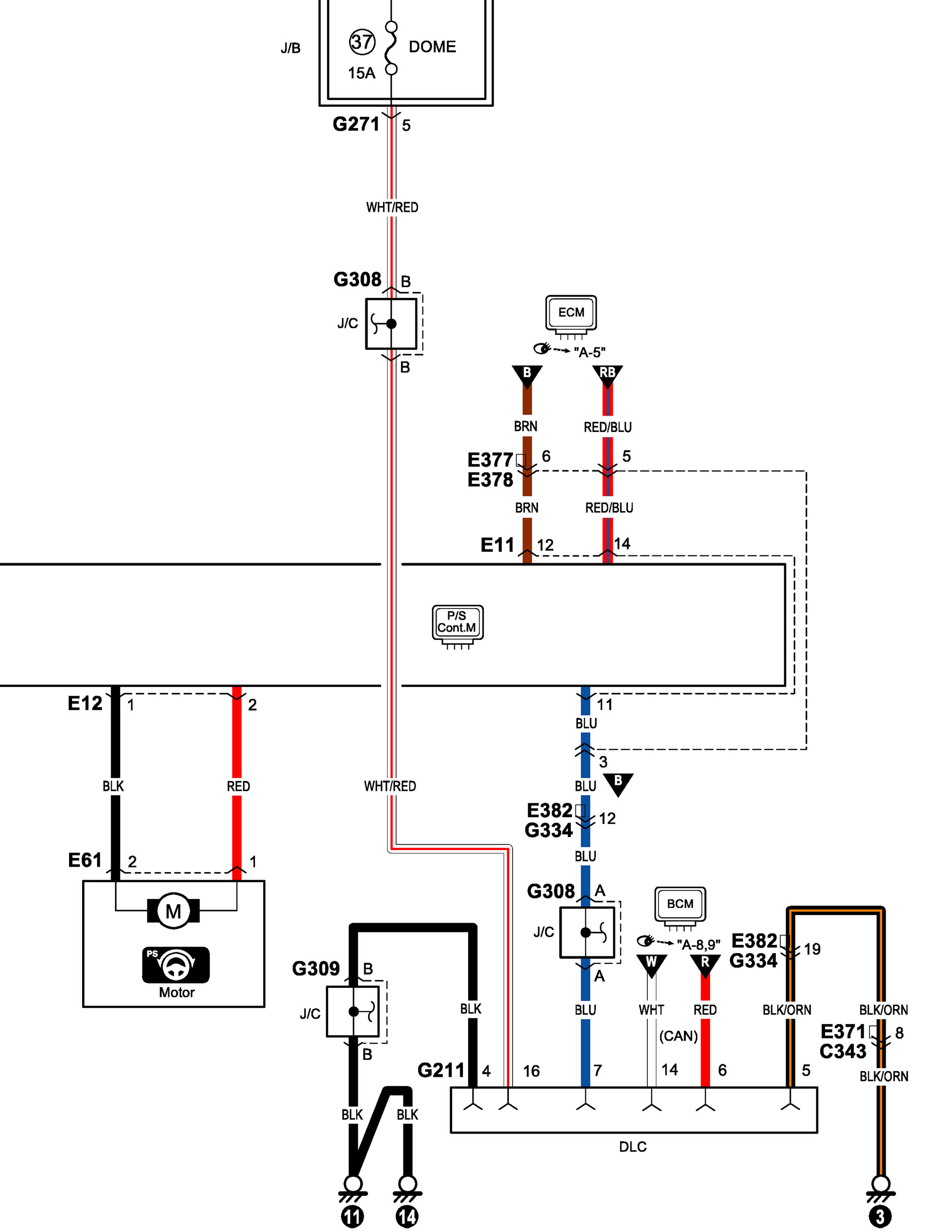

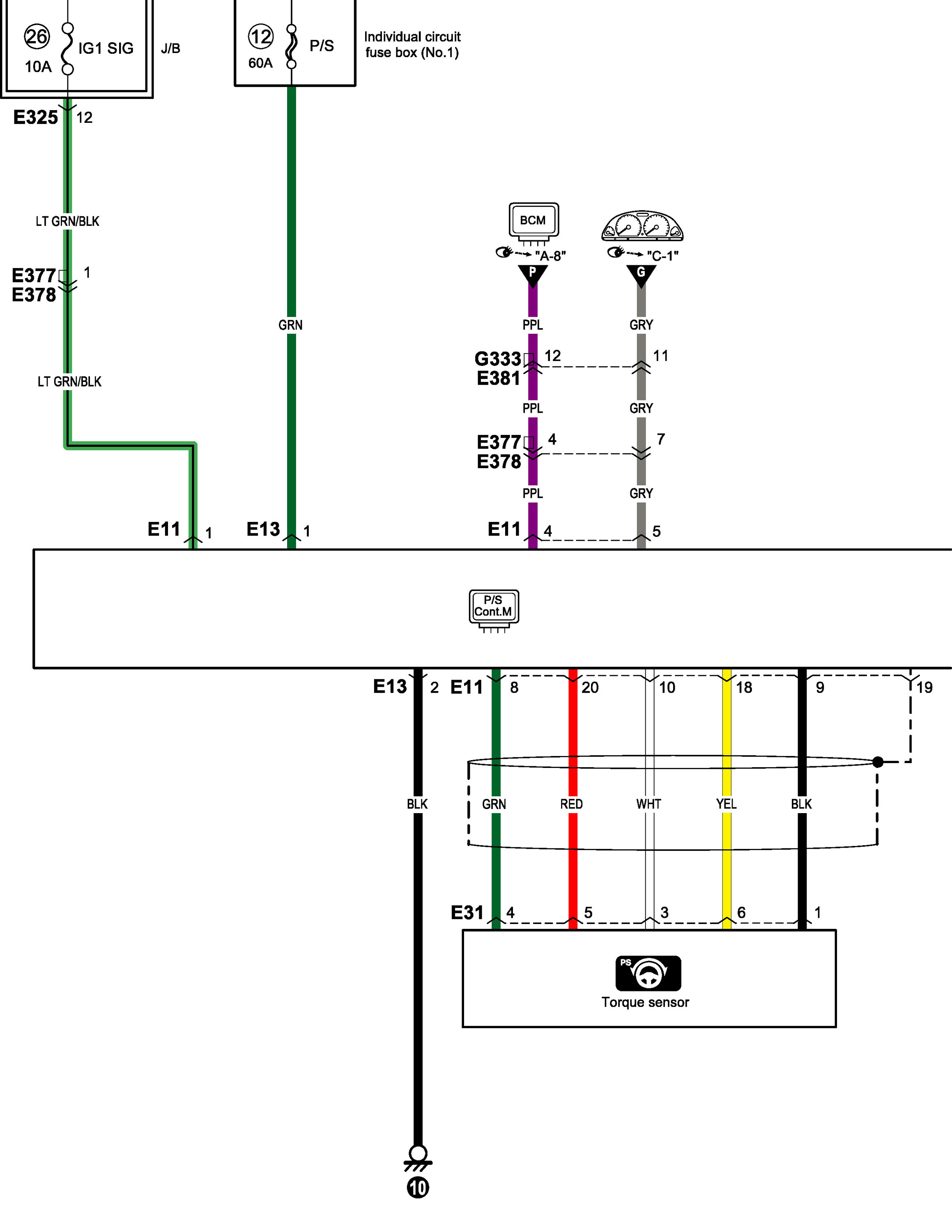

F-4 Power Steering System Circuit Diagram (Mexico Model)

F-4 Power Steering System Circuit Diagram (Mexico Model)
