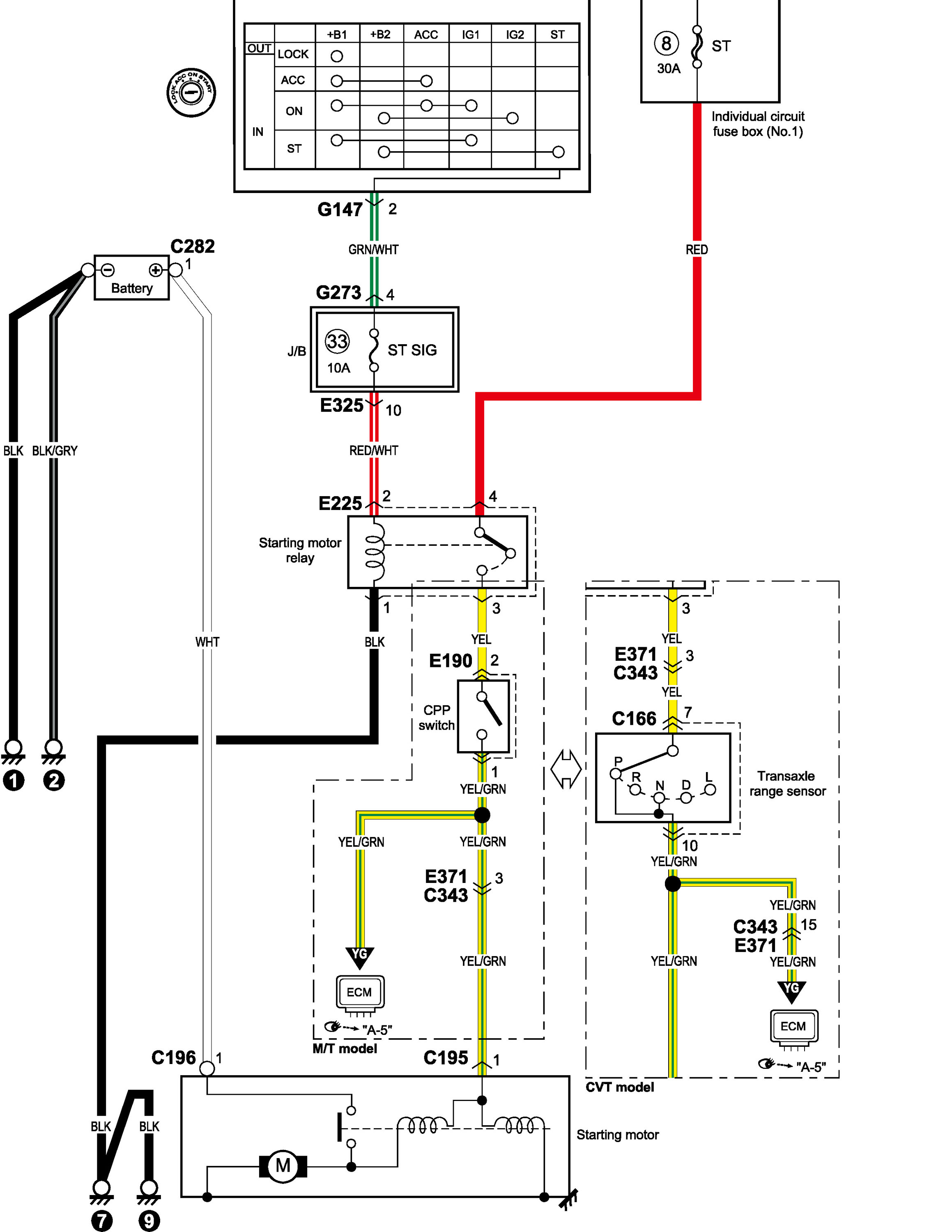

A-1 Cranking System Circuit Diagram
A-1 Cranking System Circuit Diagram
A-1 Cranking System Circuit Diagram
