Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> C-1 Combination Meter Circuit Diagram

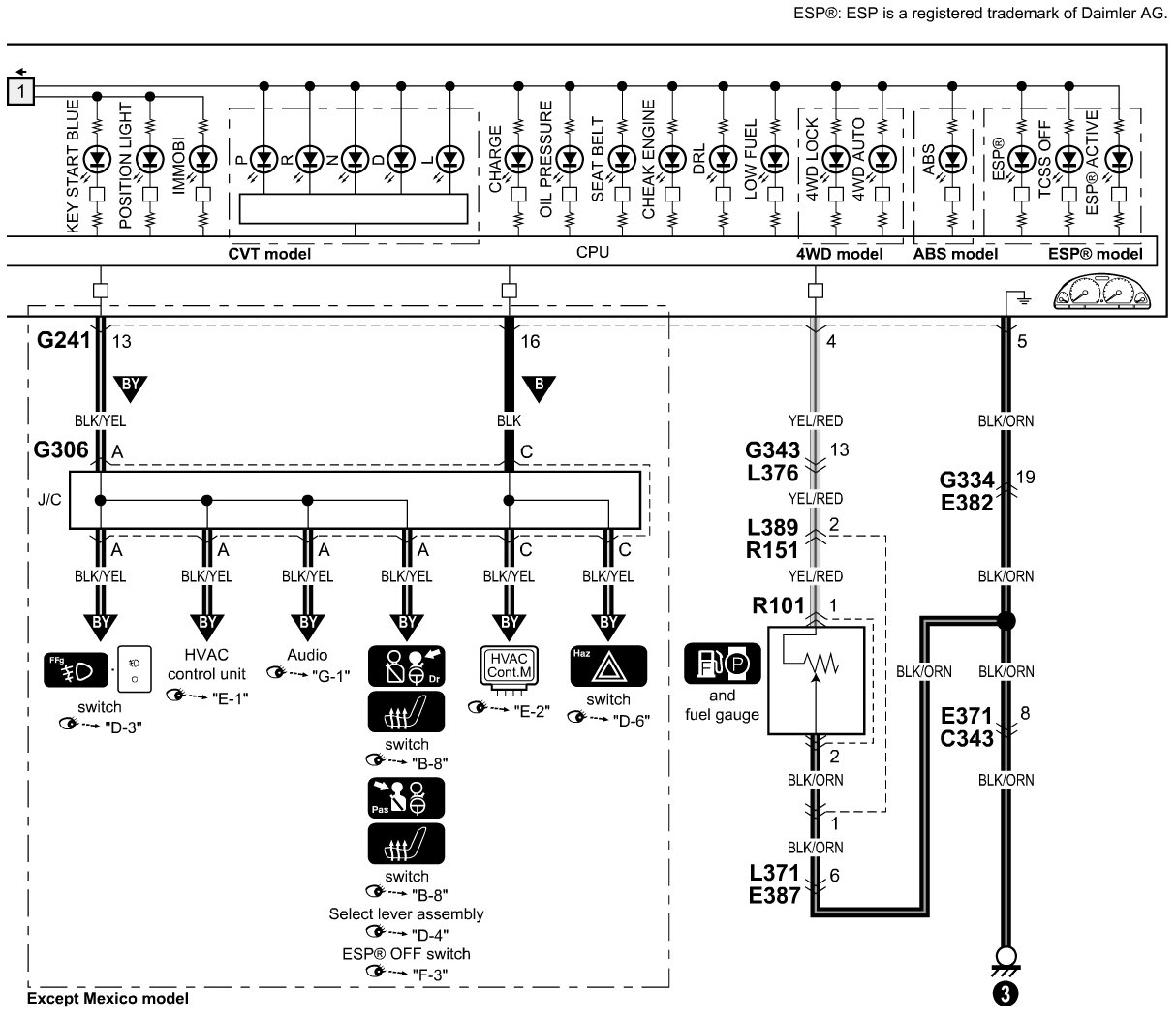

C-1 Combination Meter Circuit Diagram

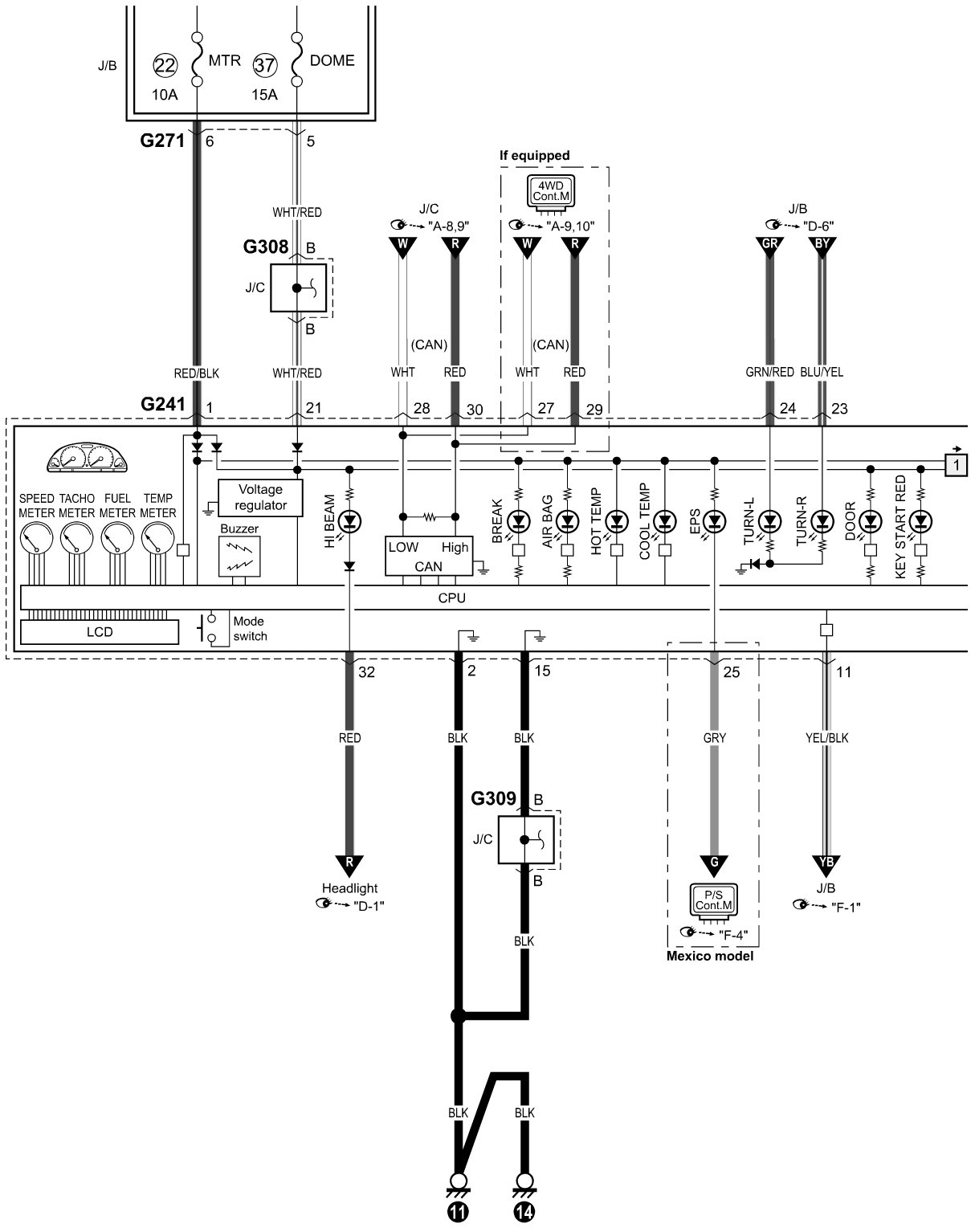

C-1 Combination Meter Circuit Diagram
