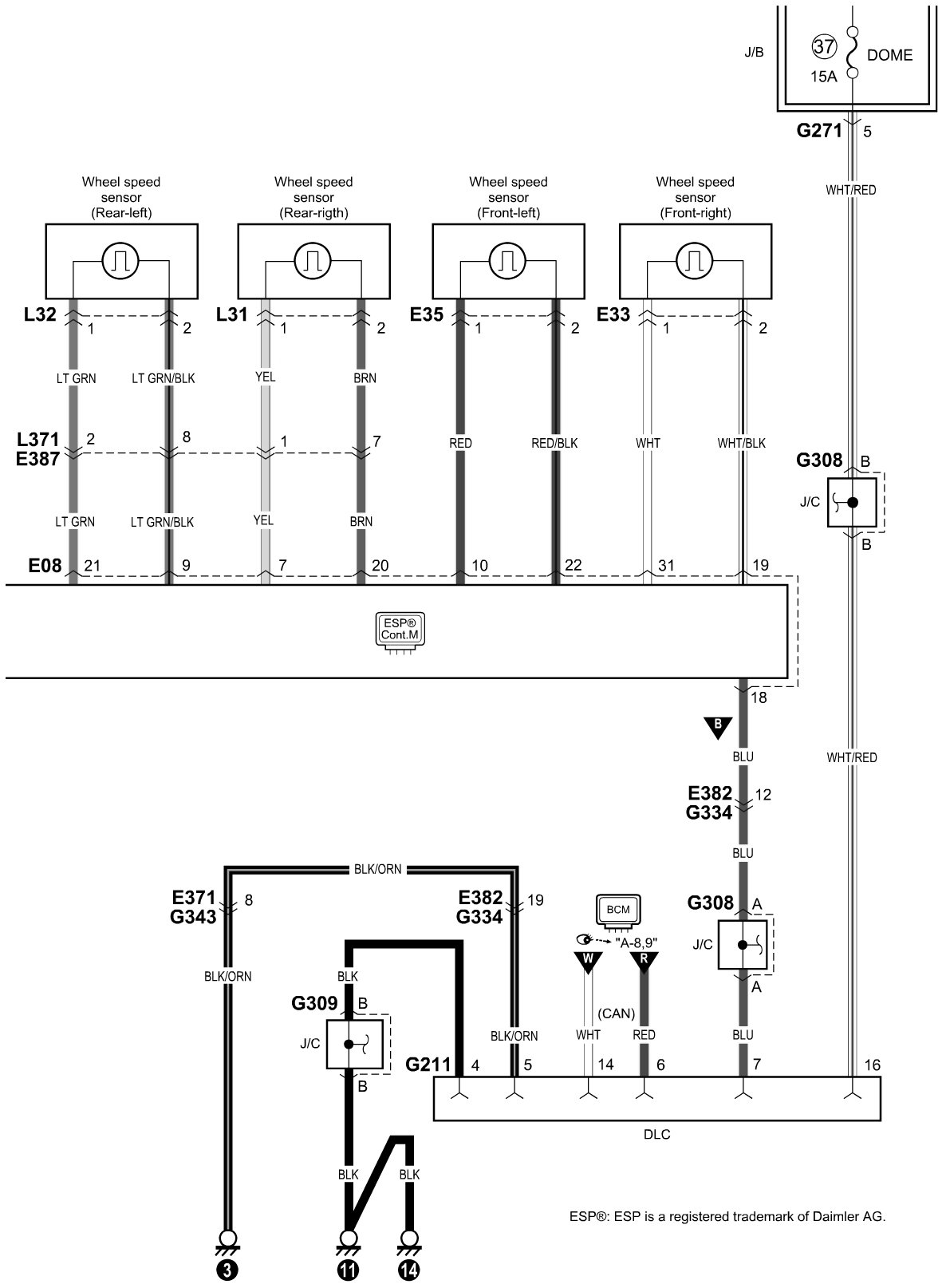

F-3 Electronic Stability Program System Circuit Diagram

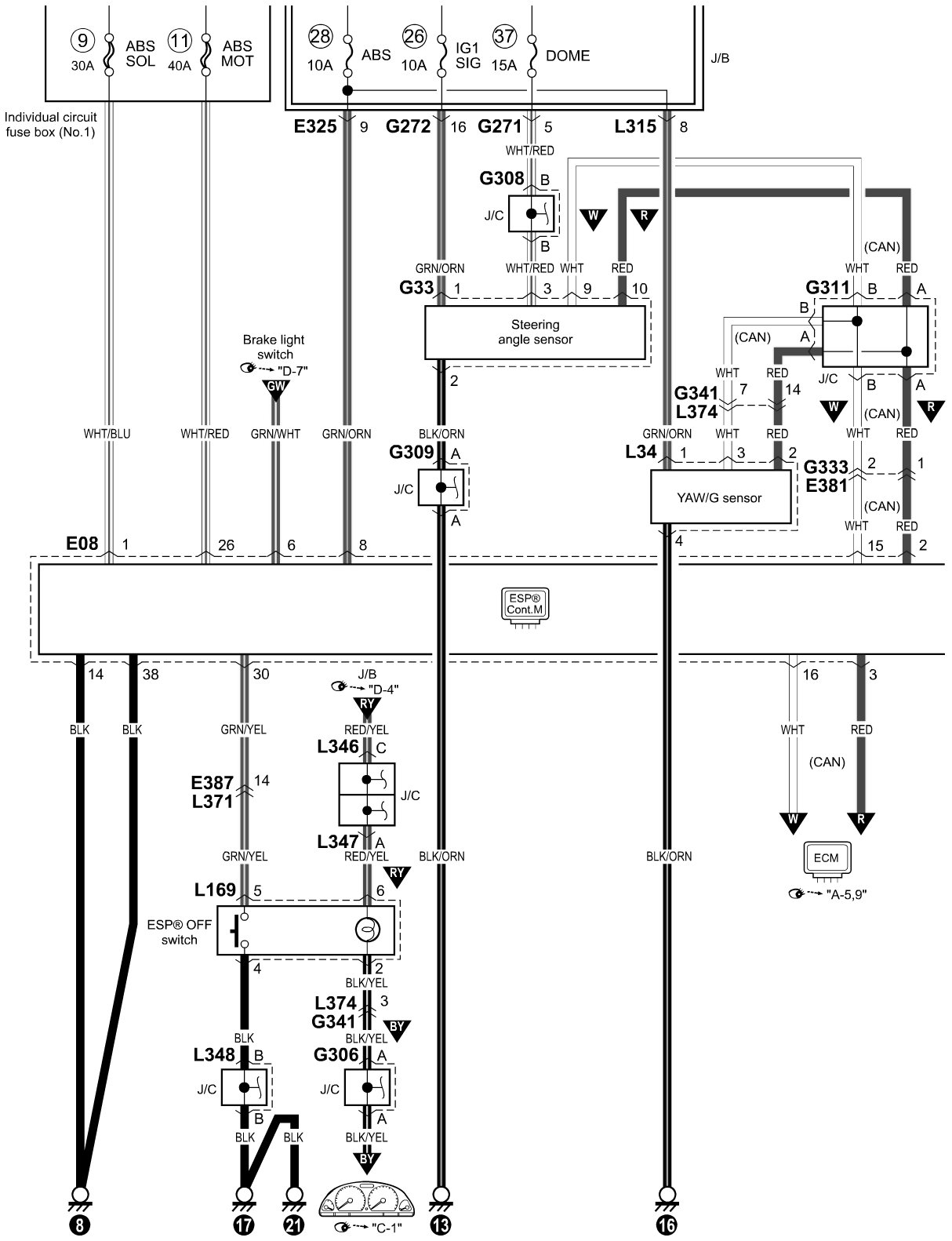

F-3 Electronic Stability Program System Circuit Diagram
F-3 Electronic Stability Program System Circuit Diagram
