Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Frame >> Cross-Member >> Service and Repair >> Front Suspension Frame, Stabilizer Bar and/or Bush Components

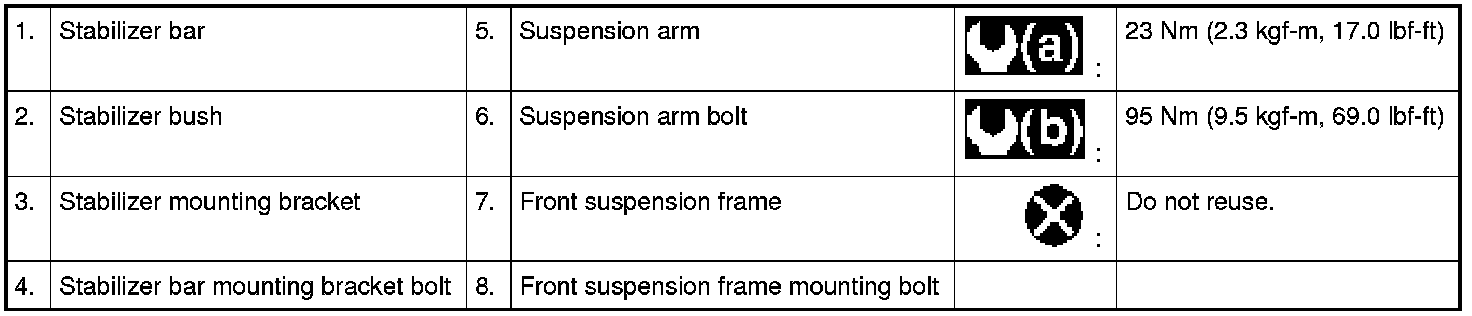

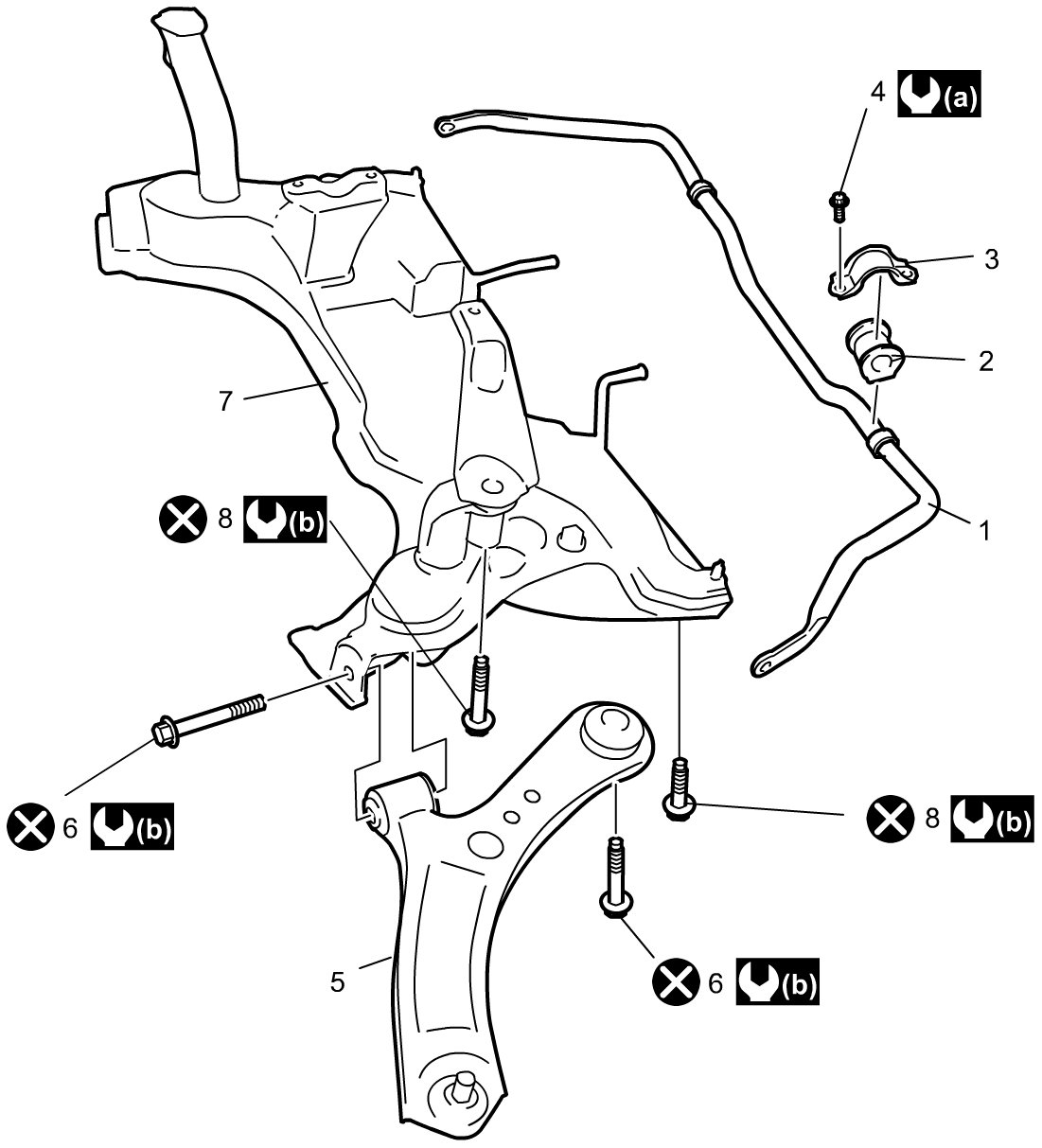

Front Suspension Frame, Stabilizer Bar and/or Bush Components




Front Suspension Frame, Stabilizer Bar and/or Bush Components
