Body Electrical Control System Wiring Circuit Diagram

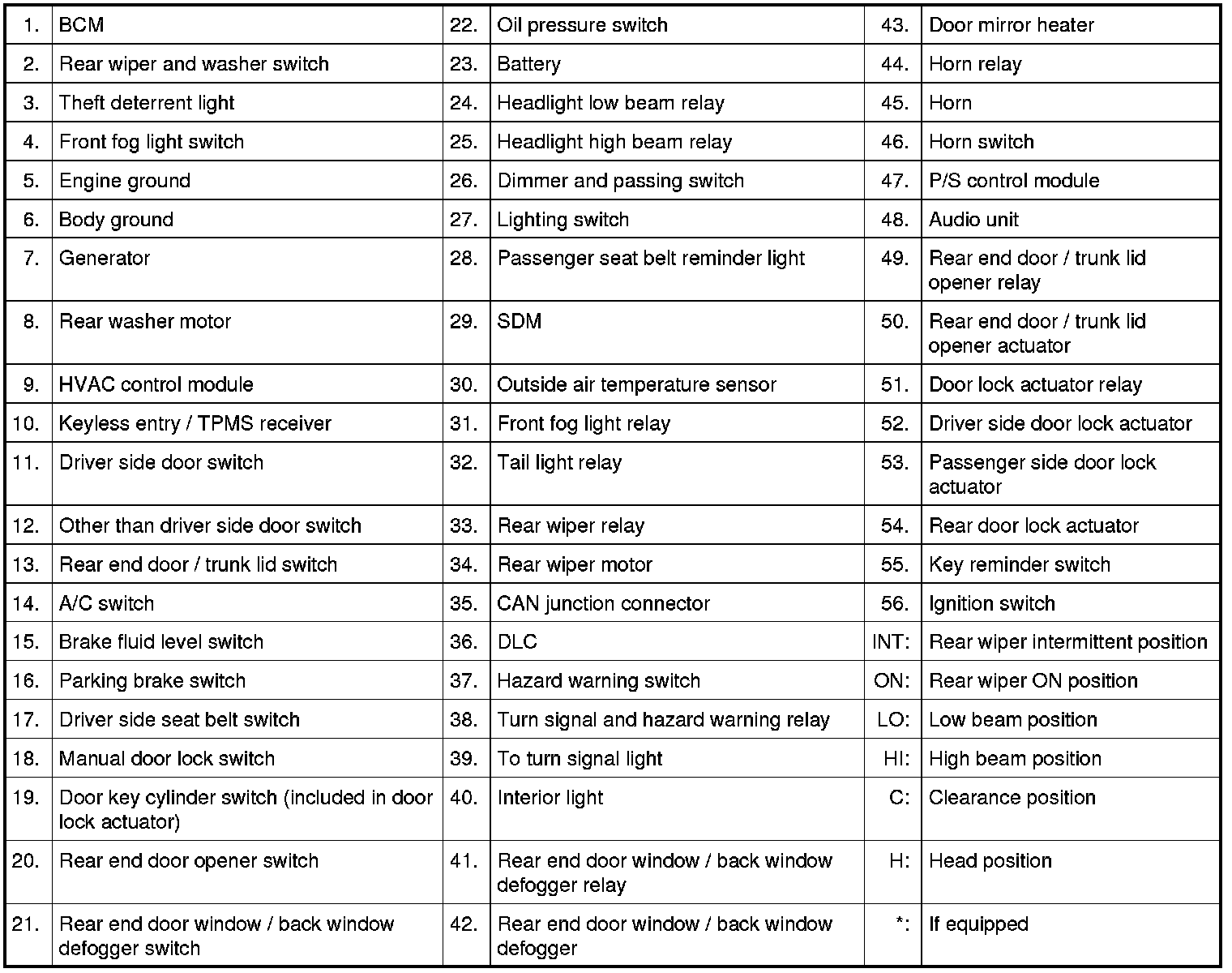

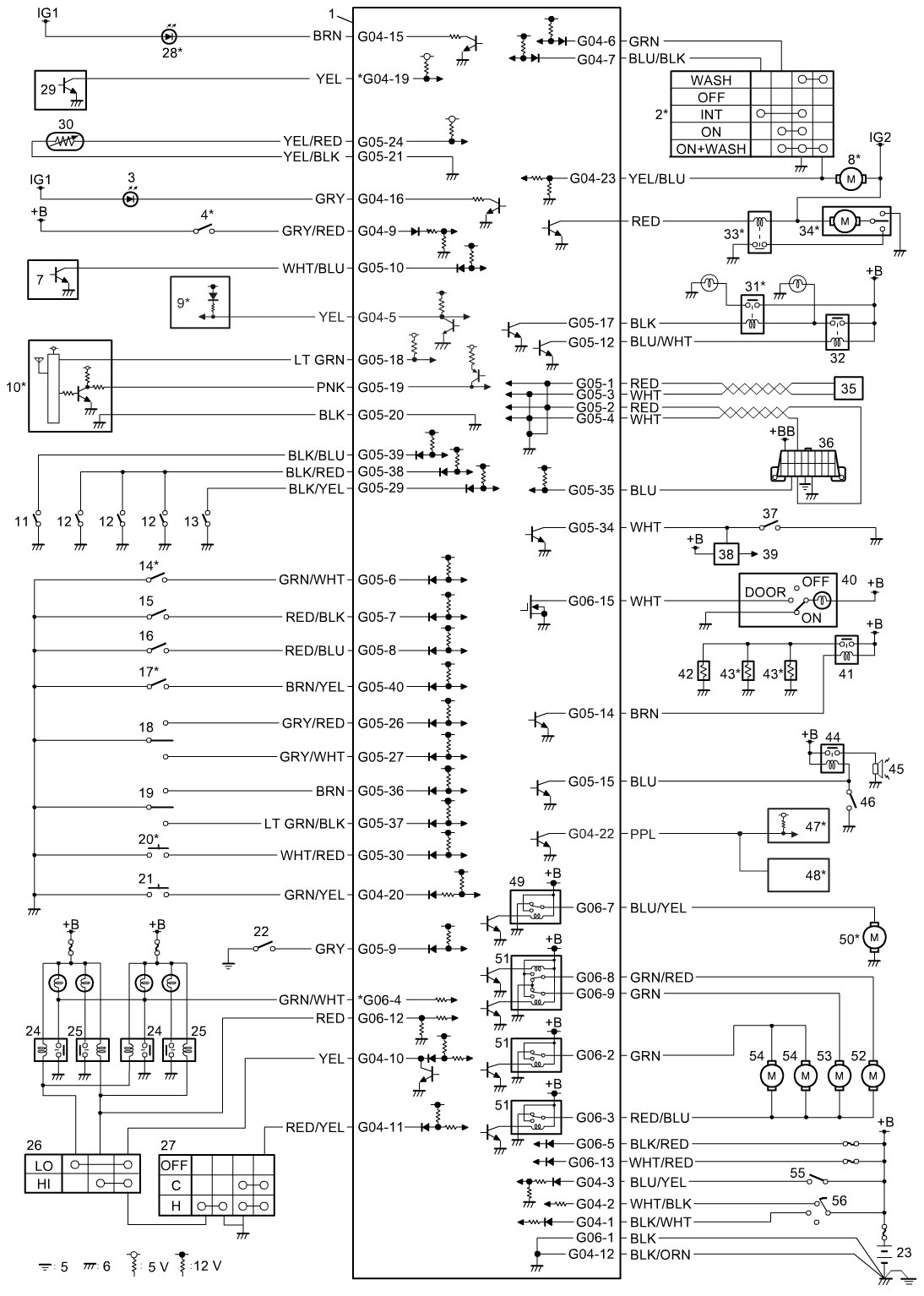

Body Electrical Control System Wiring Circuit Diagram

BCM General Description
