Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Locations

Keyless Entry: Locations

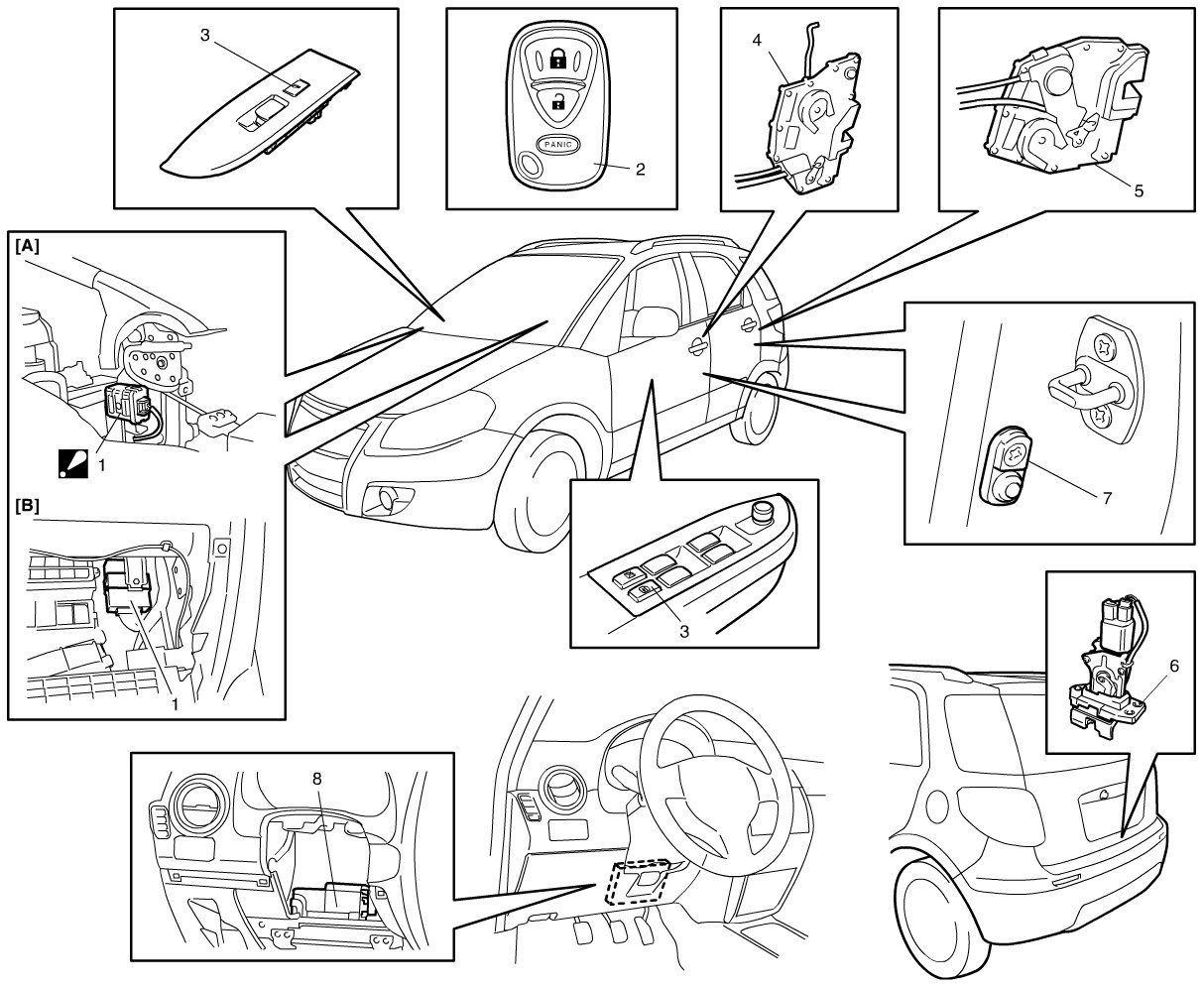

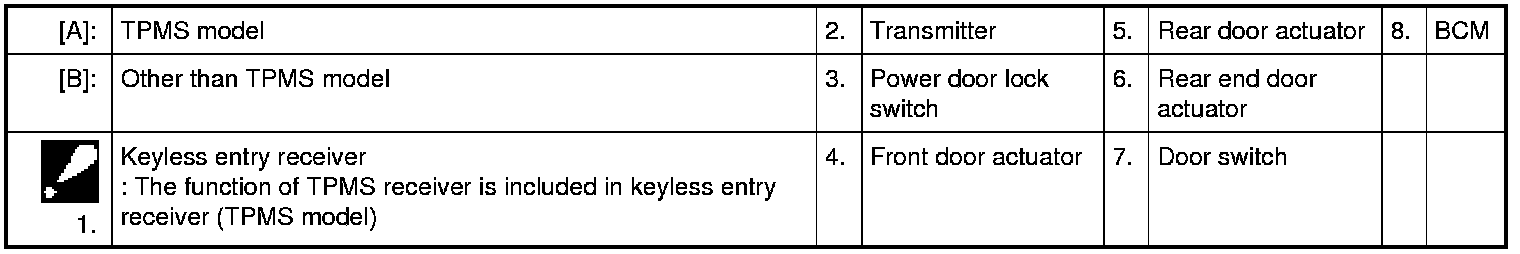

Power Door Lock and Keyless Entry System Component Location (If Equipped)
