Home >> Suzuki >> 2012 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Rear Door Window Glass >> Service and Repair >> Rear Door Window Components

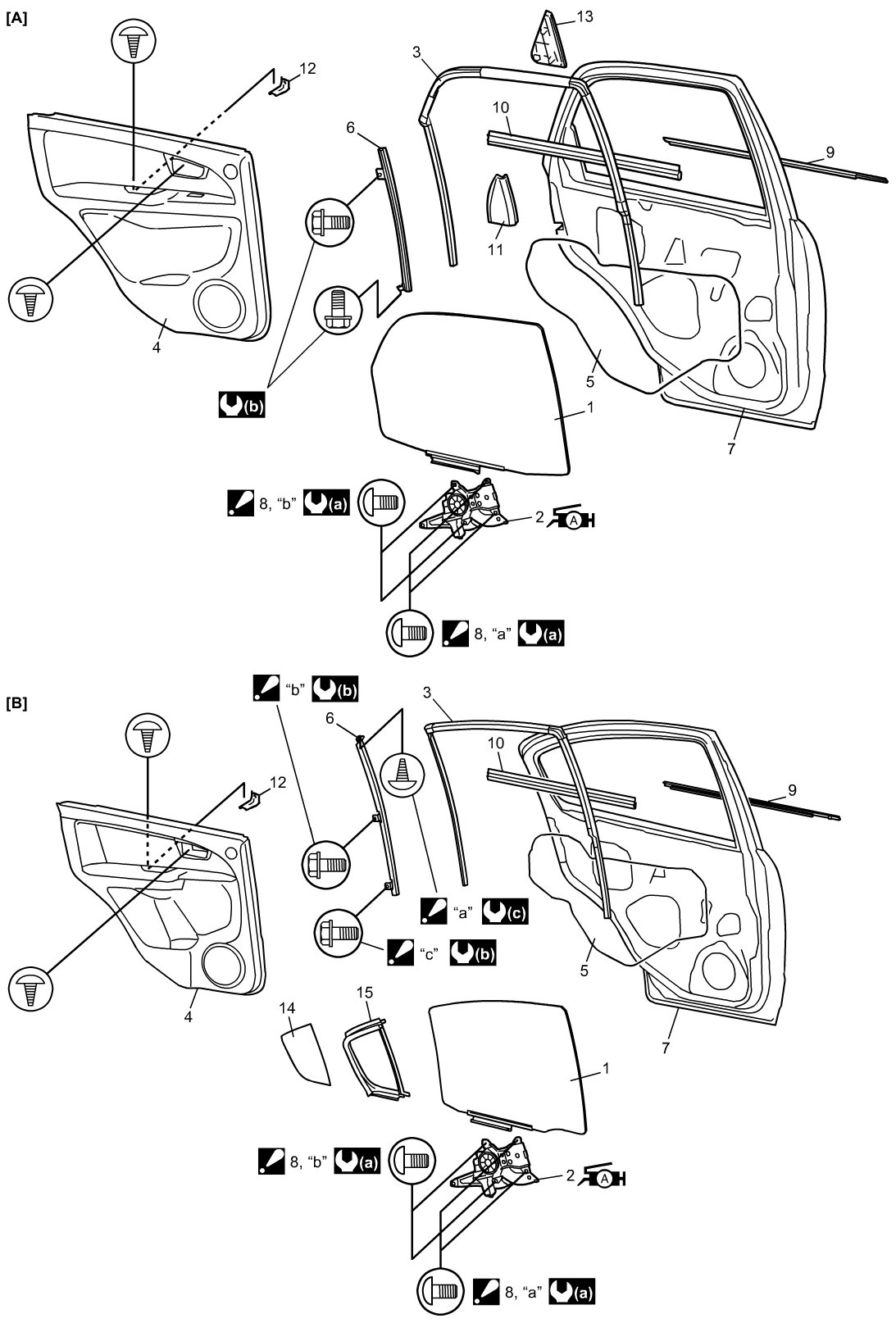

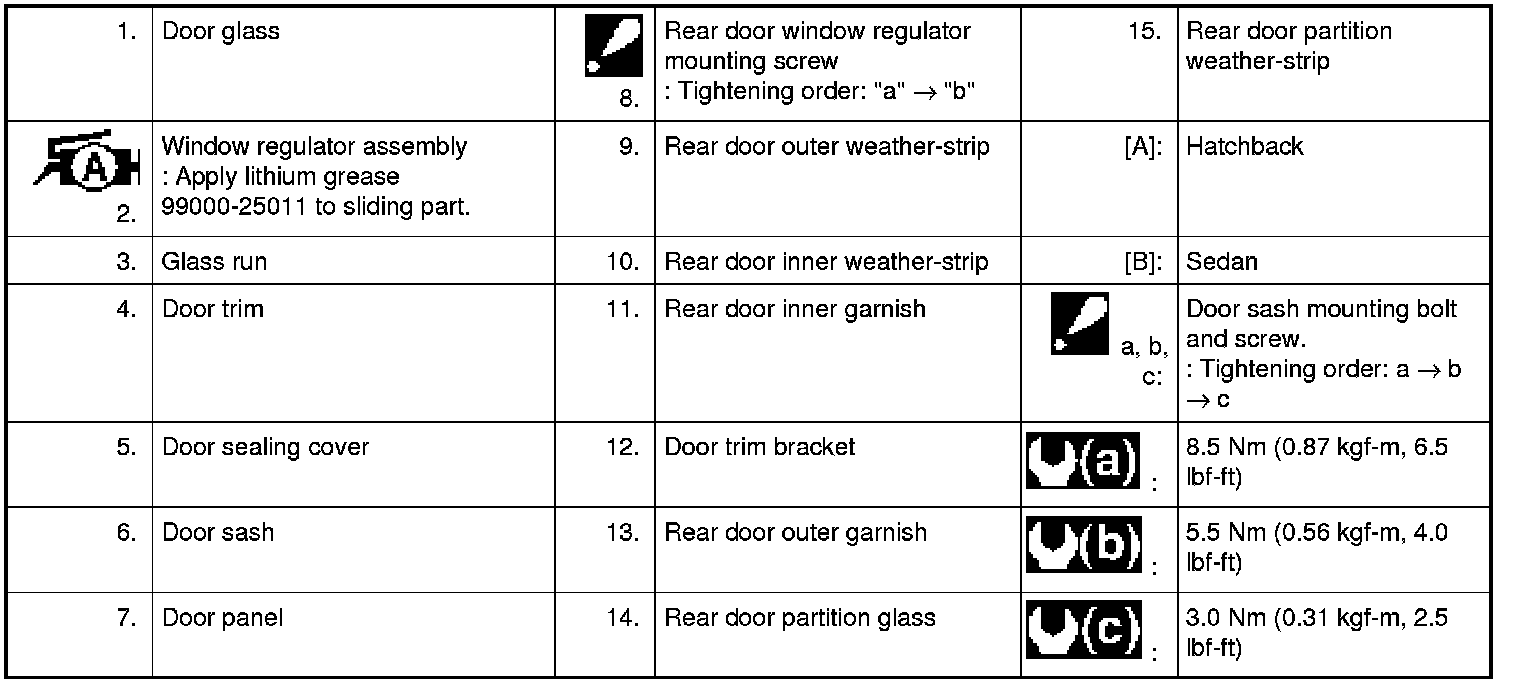

Rear Door Window Components

Rear Door Window Components
