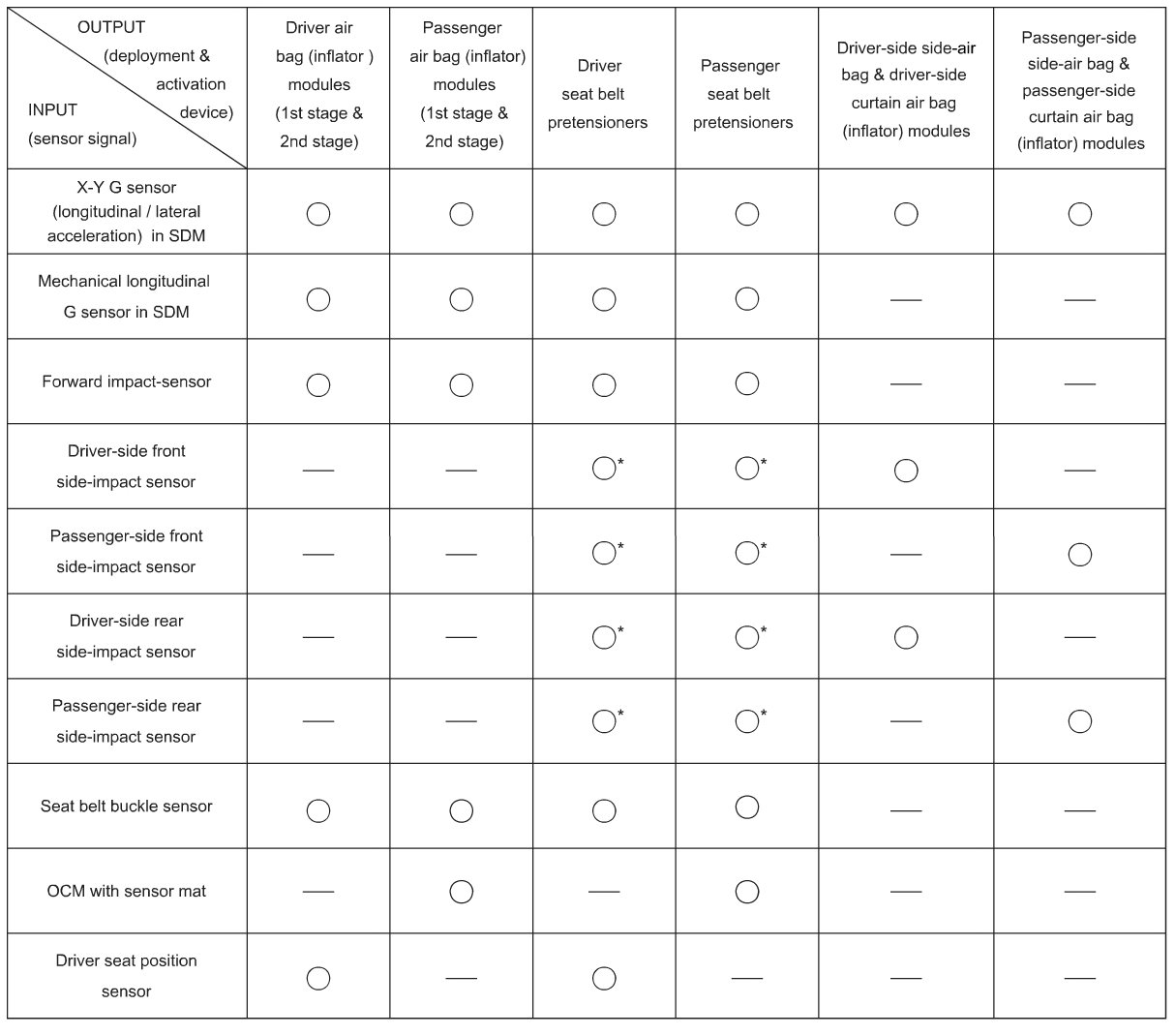

Air Bag System Input / Output Table
Air Bag System Input / Output Table
Air Bag System Input / Output Table
*: Only when
seat belt
is fastened.
