Visual Inspection
Visual Inspection
Visual Inspection
-

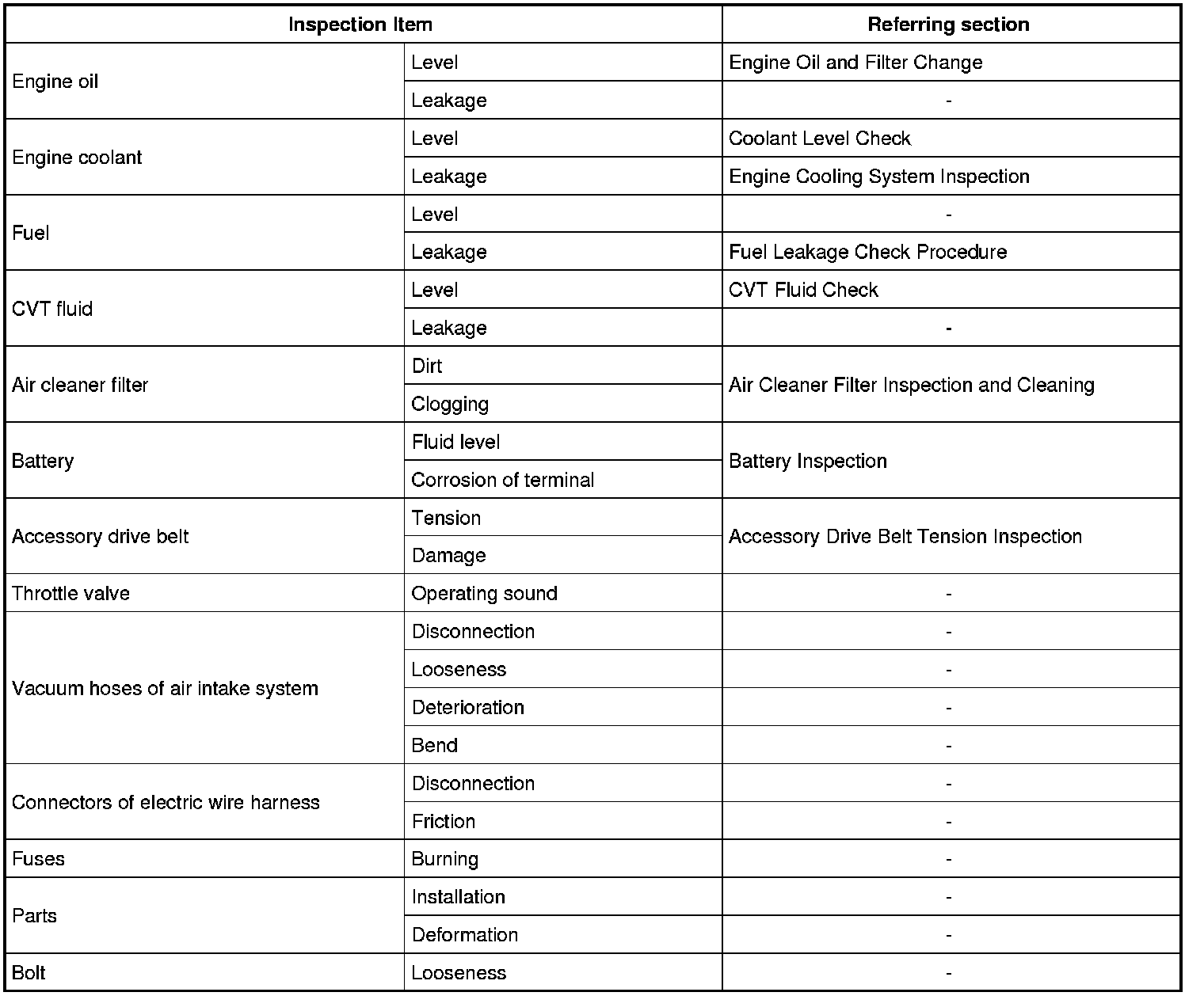

Visually check the following parts and systems.
-

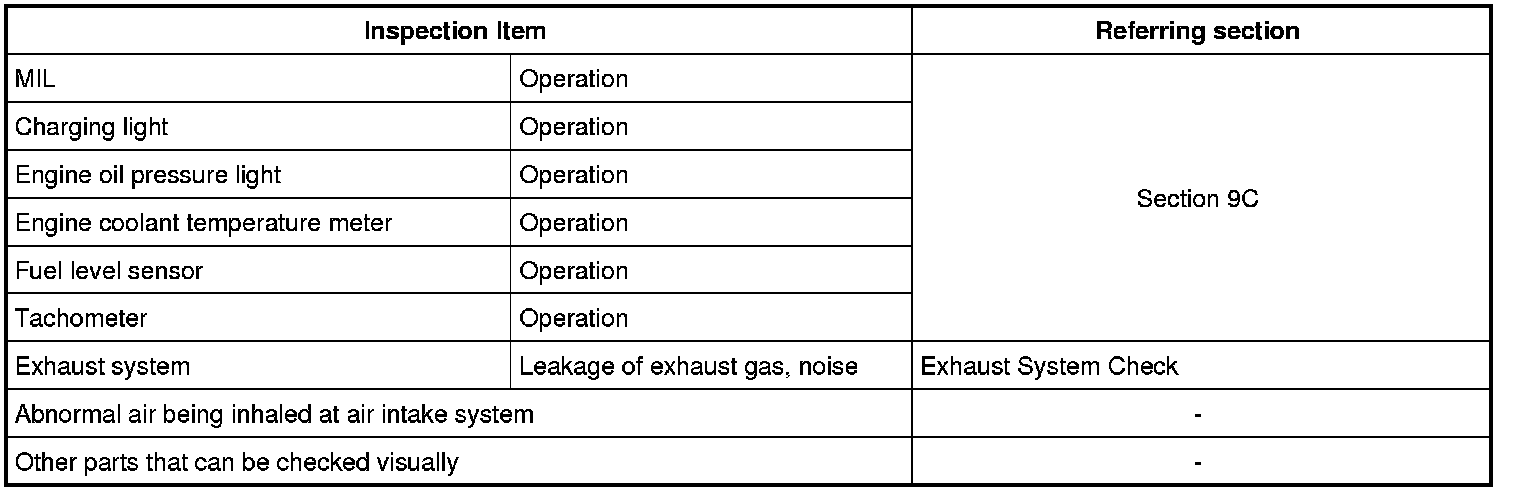

Also add the following items at engine start, if possible.
