Acceleration Pedal Position Sensor

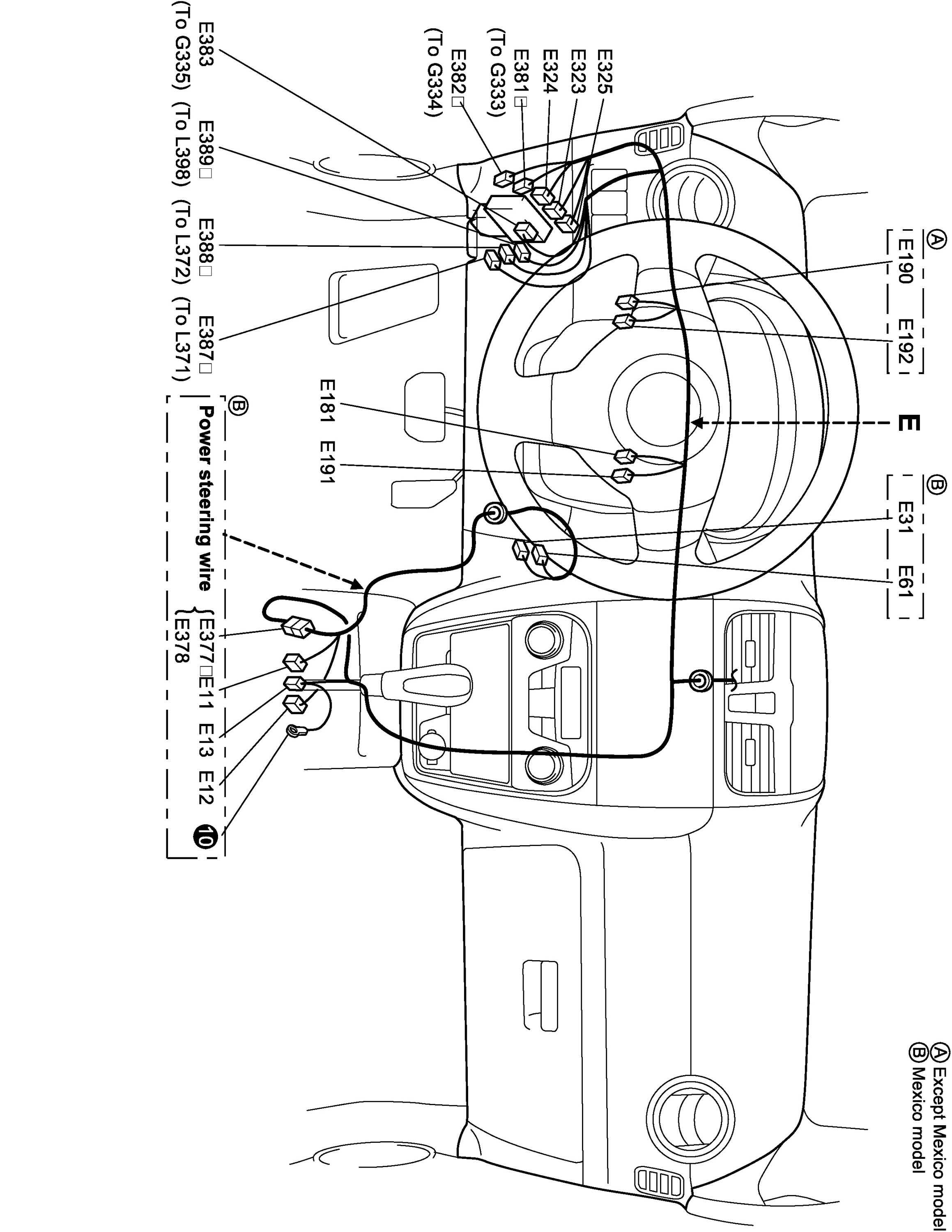

Instrument Panel

E: Main Harness, Power Steering Wire

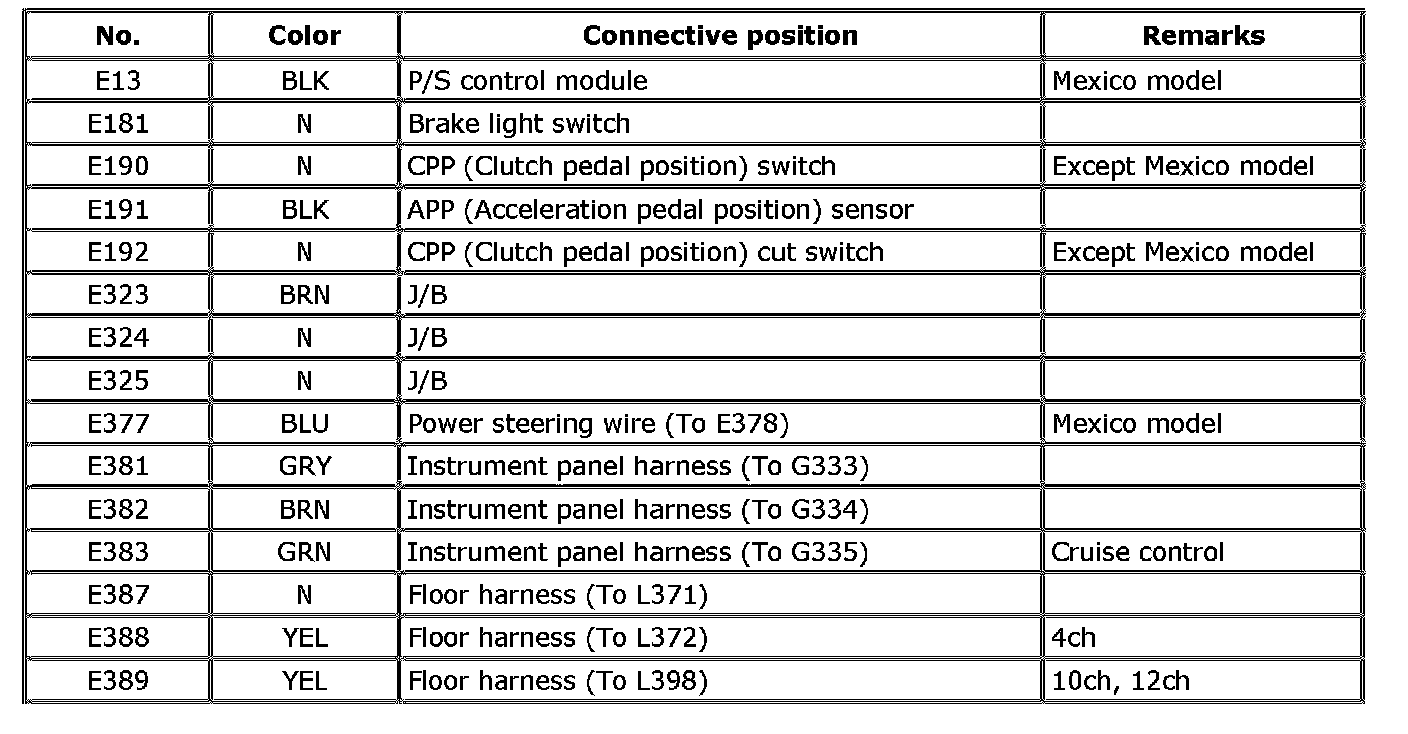

E: Main Harness
