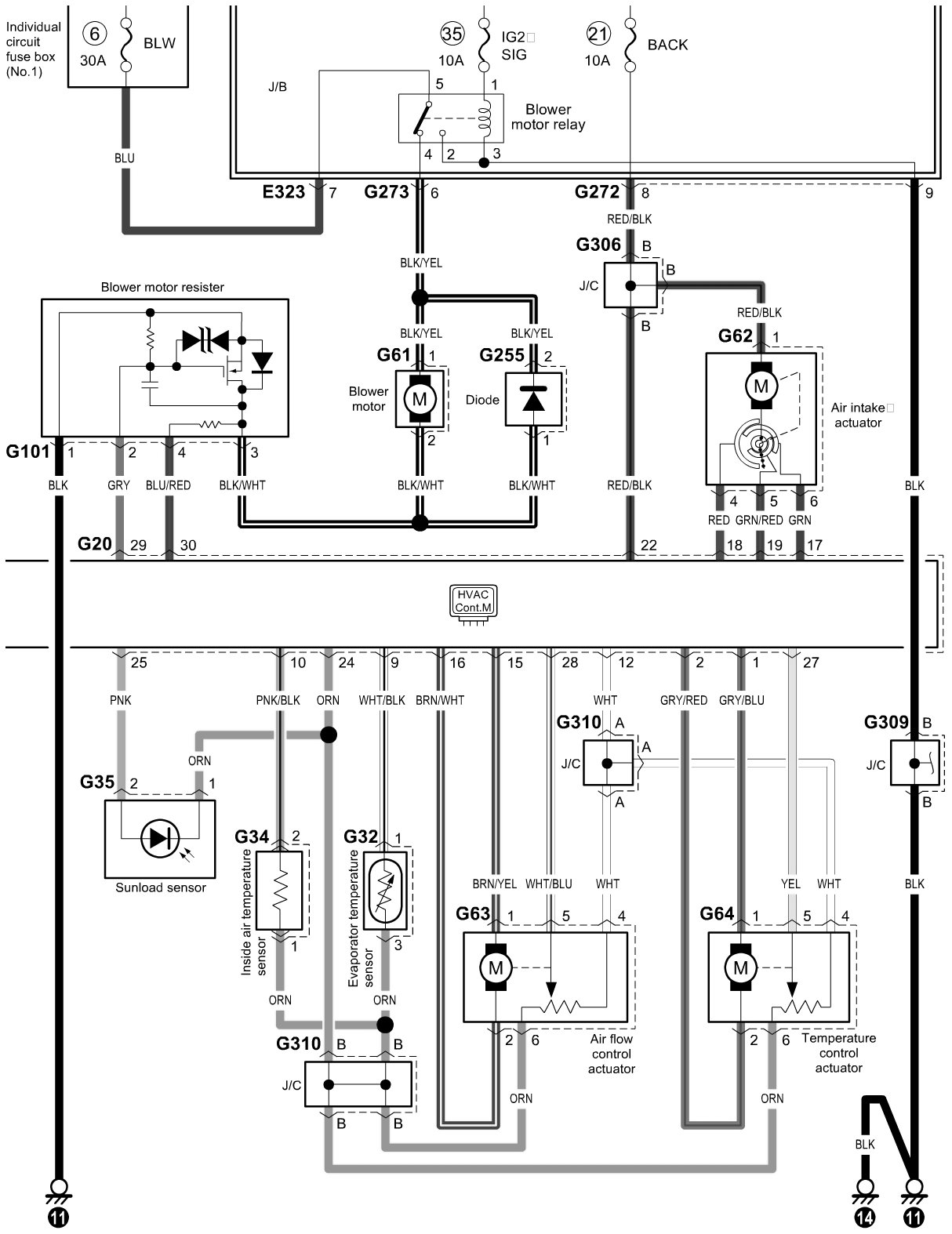

E-2 Auto A/C System Circuit Diagram

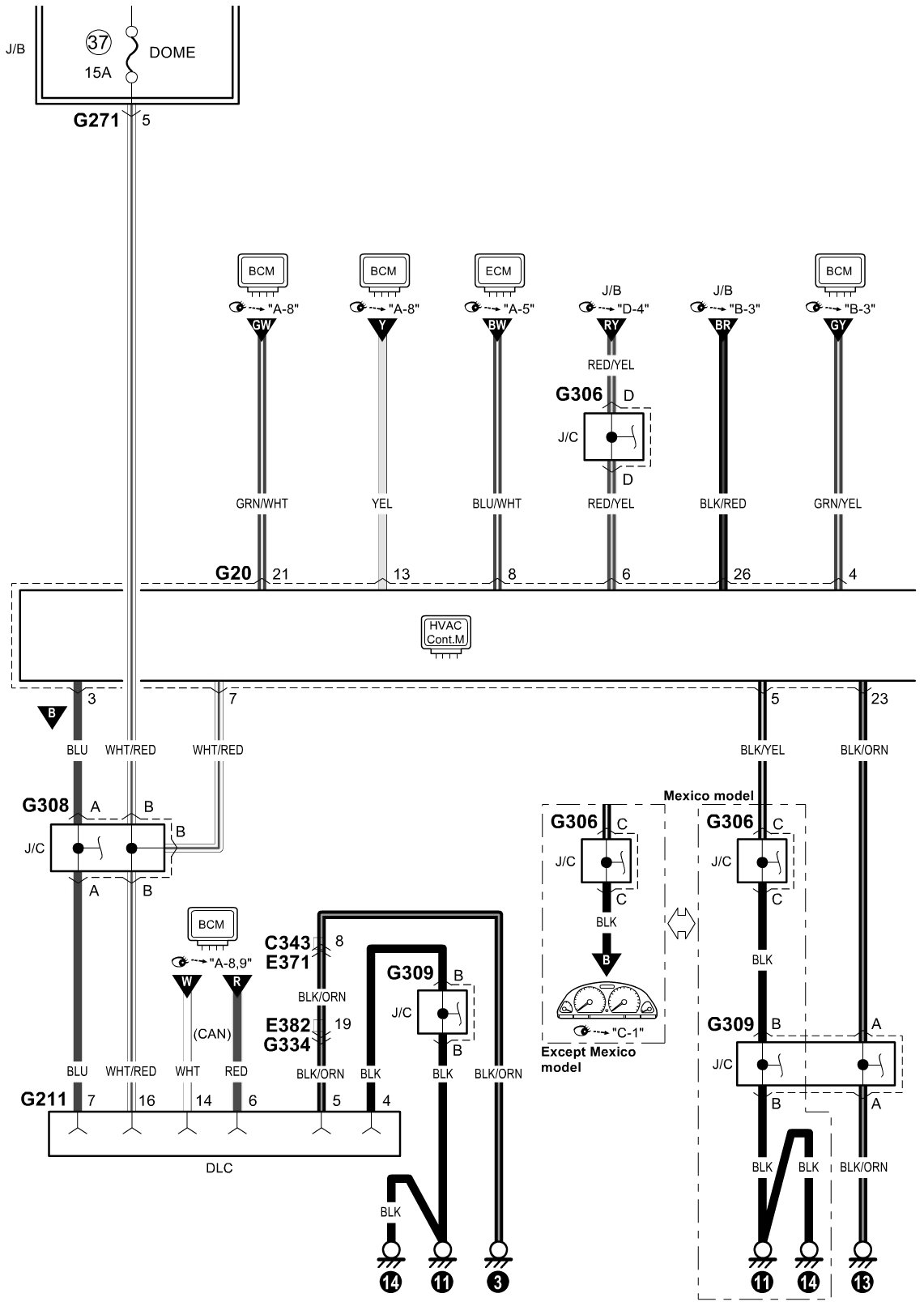

E-2 Auto A/C System Circuit Diagram
E-2 Auto A/C System Circuit Diagram
