Home >> Suzuki >> 2012 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Service and Repair >> Overhaul >> Valve and Cylinder Head Components

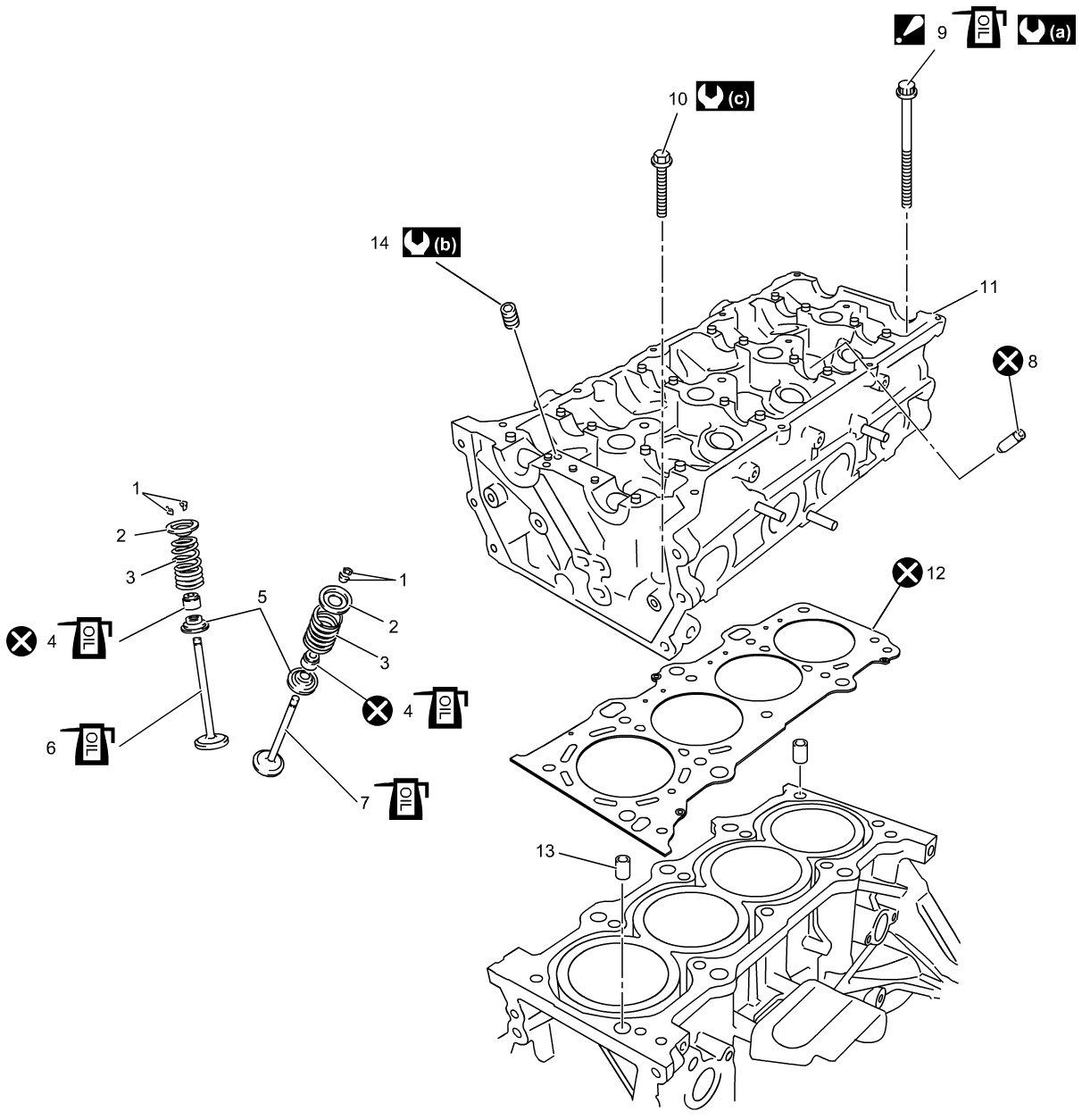

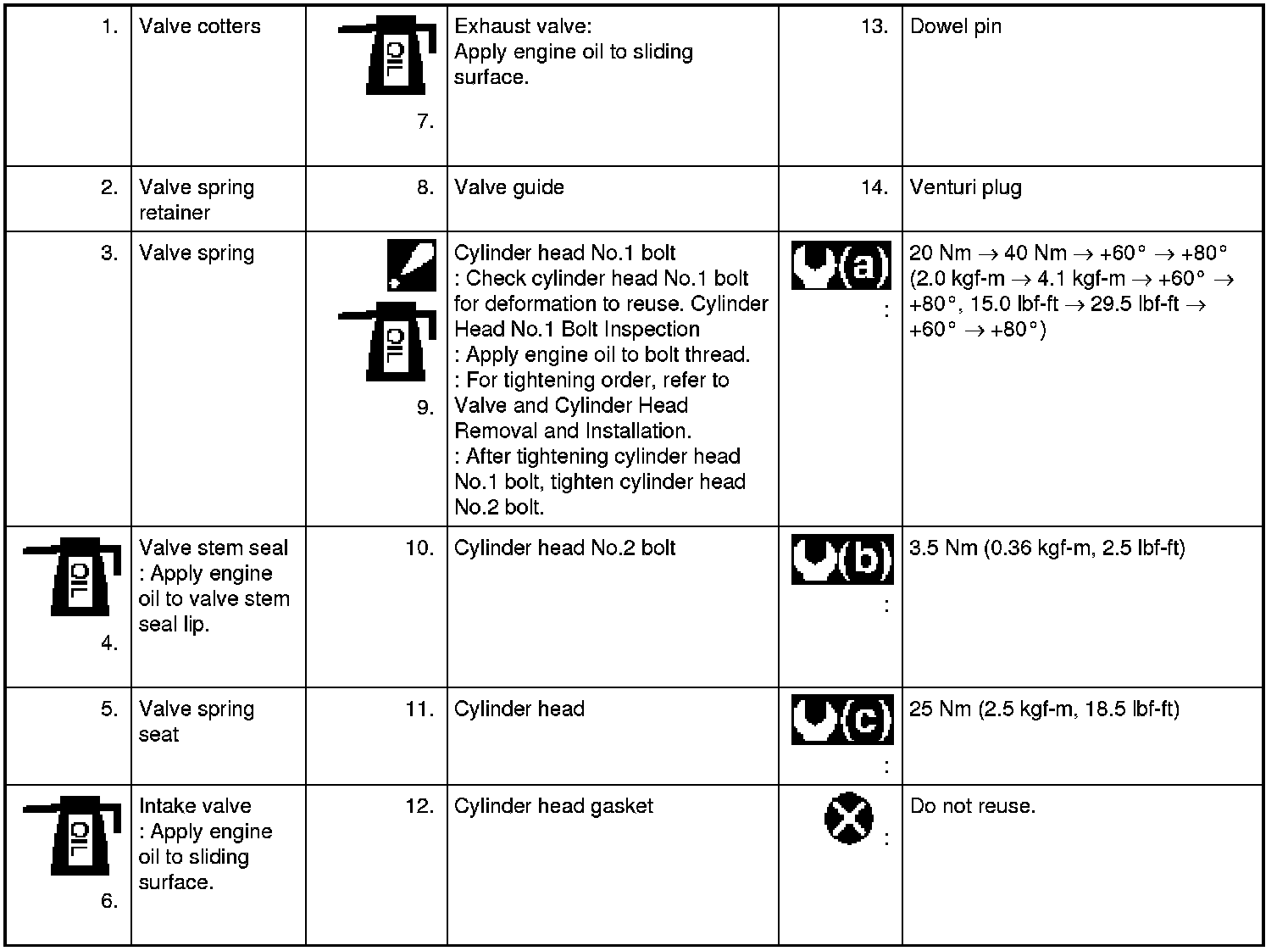

Valve and Cylinder Head Components




Valve and Cylinder Head Components





Cylinder Head No.1 Bolt Inspection Removal and Replacement
