ESP Wiring Circuit Diagram

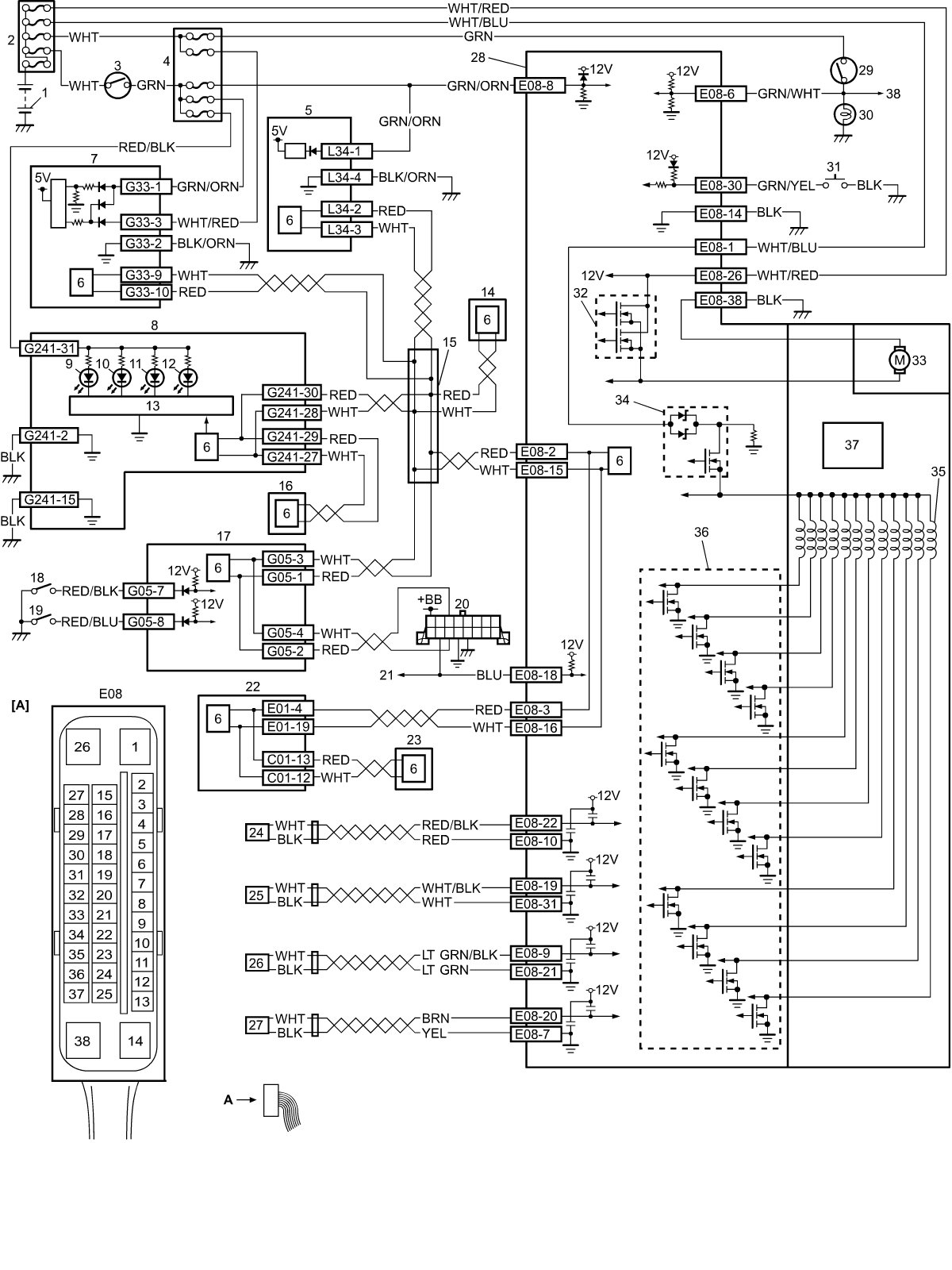

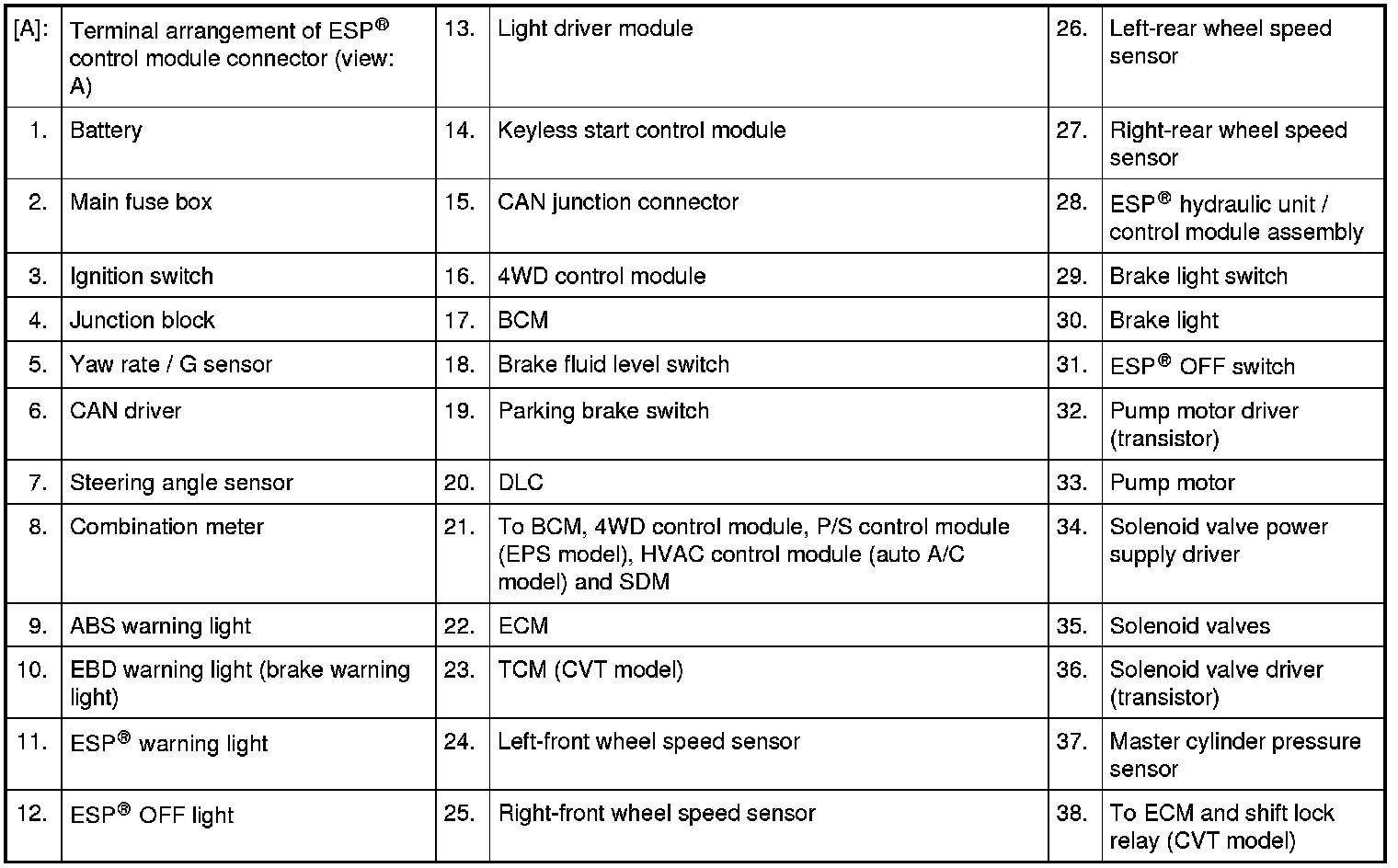

ESP(R) Wiring Circuit Diagram

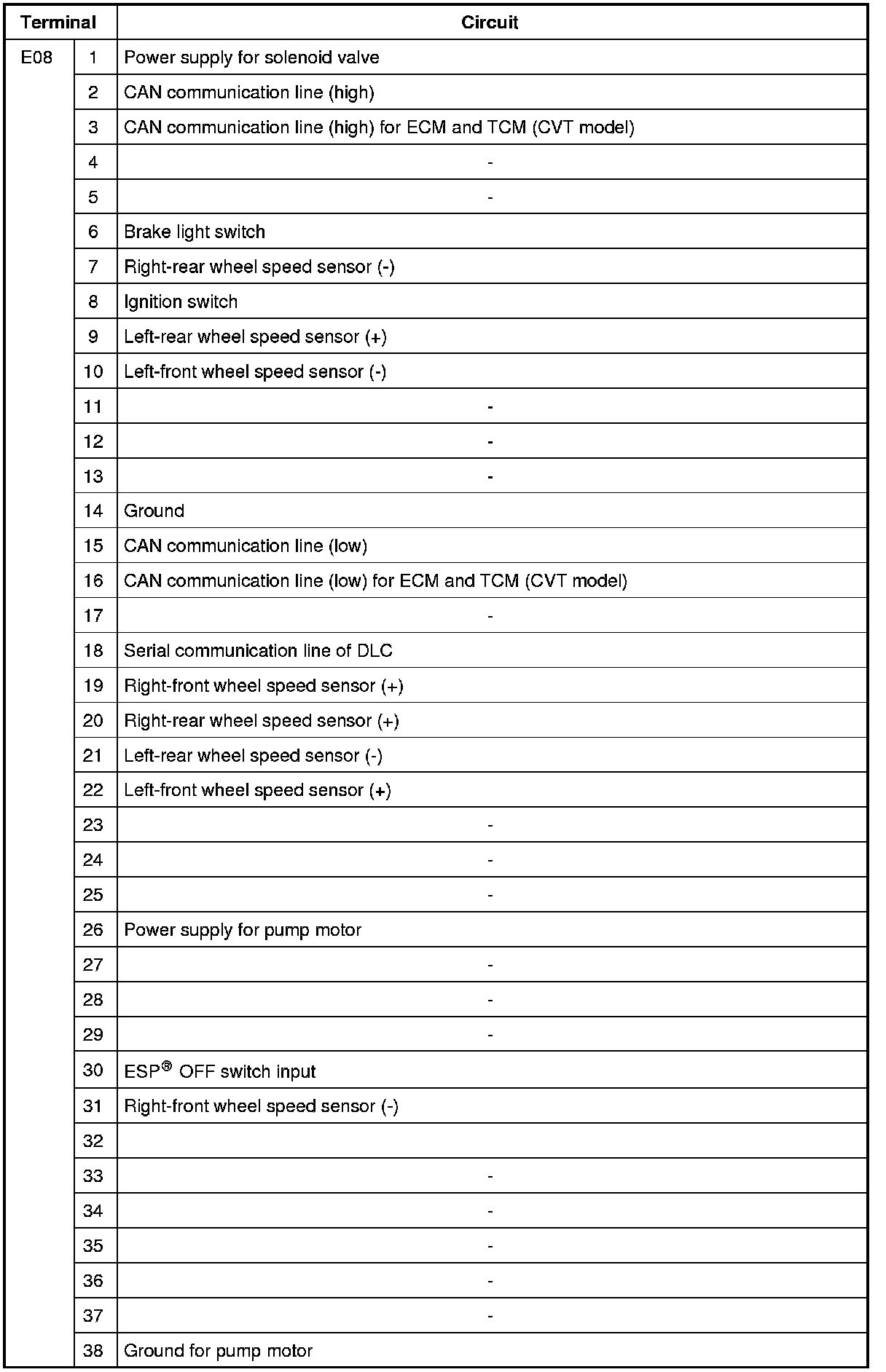

Connector "E08" (ESP(R) Control Module Connector)
