Scan Tool Testing and Procedures

Scan Tool Data


BCM


NOTE:
If communication between SUZUKI scan tool and BCM is not possible, check related items according to the following points for recovery.
- SUZUKI scan tool and communication cable
- DLC power circuit and ground circuit
- CAN communication system malfunction ("Control Module Communication Bus Off" is detected in any control module)

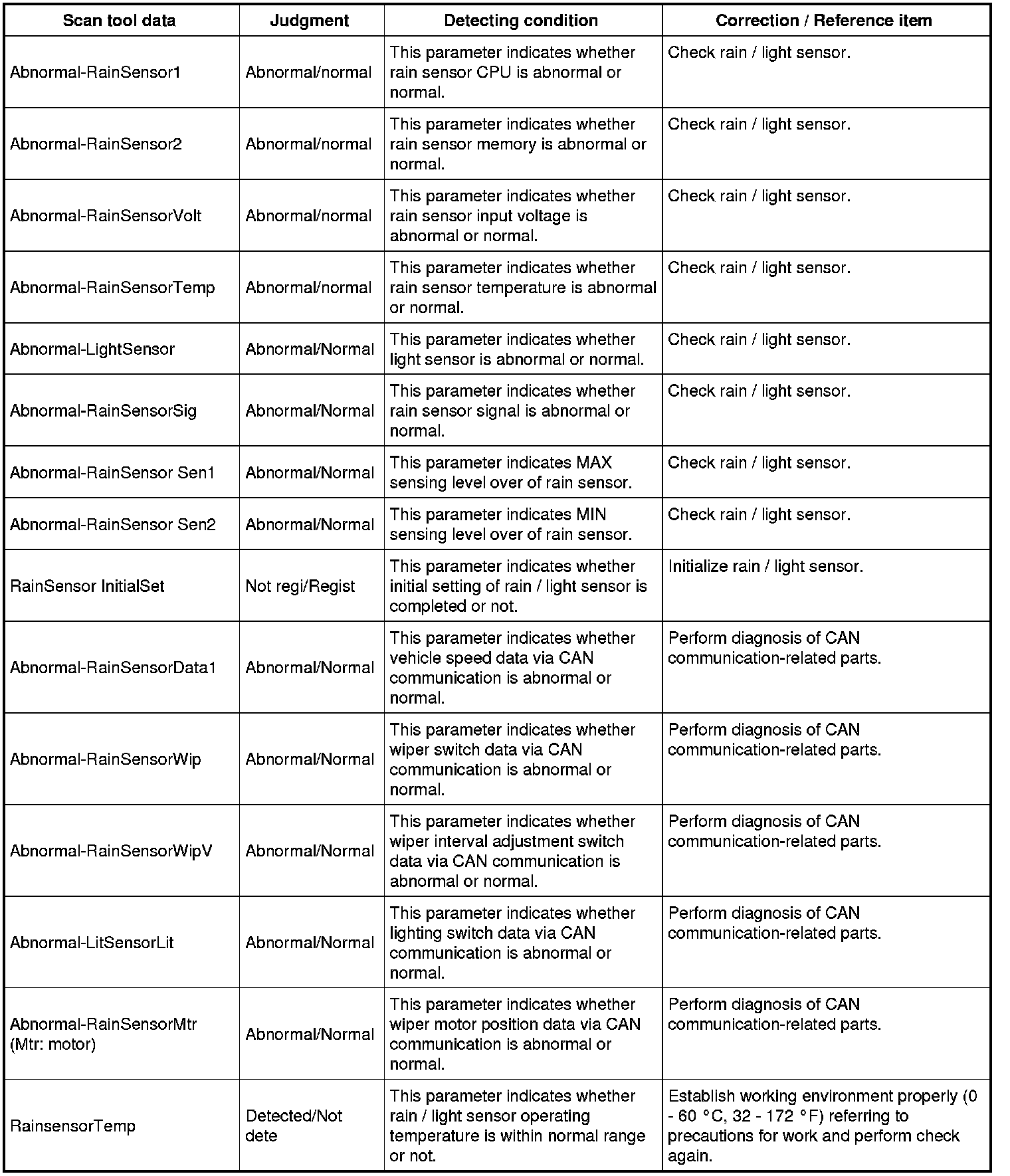

The following table shows items that can be shown with BCM data list of SUZUKI scan tool
