Programming and Relearning

Power Window System Initialization/Reset (Front Windows Only)

NOTE:

If an object is trapped during the power window system initialization/reset, the initialization/reset is failed and the auto operation and anti-pinching function are disabled.

Do not pinch any object during the power window system initialization / reset.

Make sure to conduct initialization/reset of power window when its part is replaced. Auto operation including anti-pinching function will be disabled if initialization/reset of power window is not conducted.

Initialization

1) Push engine switch to change ignition mode of keyless start system to "ON" (with vehicle stopped).

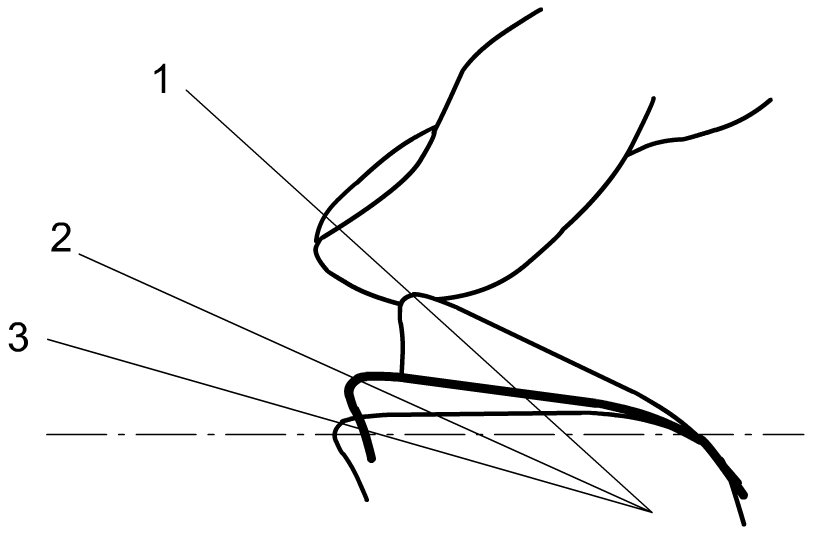

2) Press down and hold power window switch until window glass reaches its fully open position and continue holding it down for additional 2 or more seconds.
3) Pull up and hold power window switch in AUTO position until window glass reaches its fully closed position and continue holding it up for additional 2 or more seconds.











4) Perform Auto DOWN and Auto UP operations to check that door glass can be opened and closed fully. Repeat procedure from Step 1) if Auto DOWN or Auto UP function does not work.
5) Check anti-pinching function. Inspection of Power Window Anti-Pinching Function

Resetting after Replacing Front Window Regulator Assembly

1) Push engine switch to change ignition mode of keyless start system to "ON" (with vehicle stopped).
2) Pull up and hold power window switch in AUTO position until window glass reaches its fully closed position and continue holding it up for about 7 seconds.
3) Push down and hold power window switch until window glass reaches its fully open position (lowest position) and continue holding it down for about 2 seconds.
4) Release power window switch temporarily and then press down and hold the power window switch again for approximately 5 seconds at Auto DOWN position.
5) Pull up and hold power window switch in AUTO position until window glass reaches its fully closed position and continue holding it up for about 2 seconds.
6) Perform Auto DOWN and Auto UP operations to check that door glass can be opened and closed fully. Repeat procedure from Step 1) if Auto DOWN or Auto UP function does not work.
7) Check anti-pinching function. Inspection of Power Window Anti-Pinching Function
