Power Window System Fail-Safe Function (Front Doors Only)

Power Window System Fail-Safe Function (Front Doors Only)

Power window motor system operates in fail-safe mode when any of the following malfunctions is detected. The following tables show details.

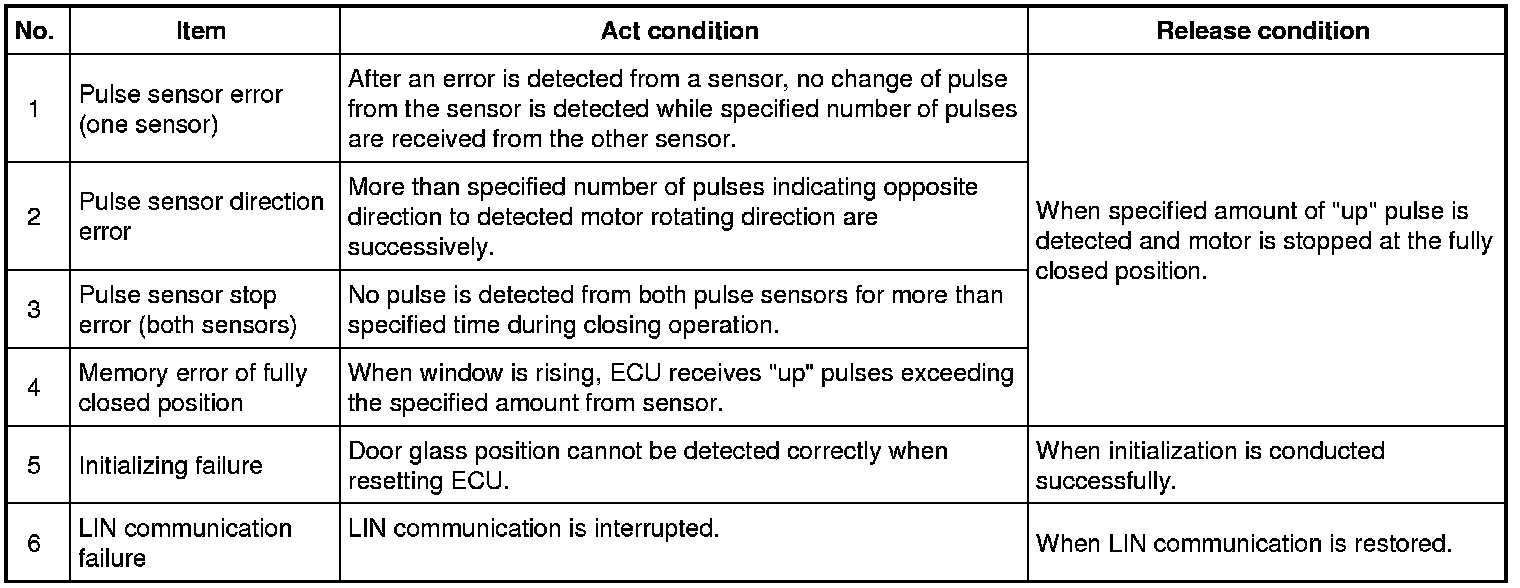

Fail-Safe Mode Table






Fail-Safe Mode Operation Table

* Manual up operation with auto up held

** Operates full stroke treated as pinching detection area. Therefore, it reverses on reaching fully closed position.

○1: Operation permitted (with anti-pinching function)

○2: Operation permitted (without anti-pinching function)

X: Operation inhibited

Fail-safe mode No. 1 to No. 5 when no initialization

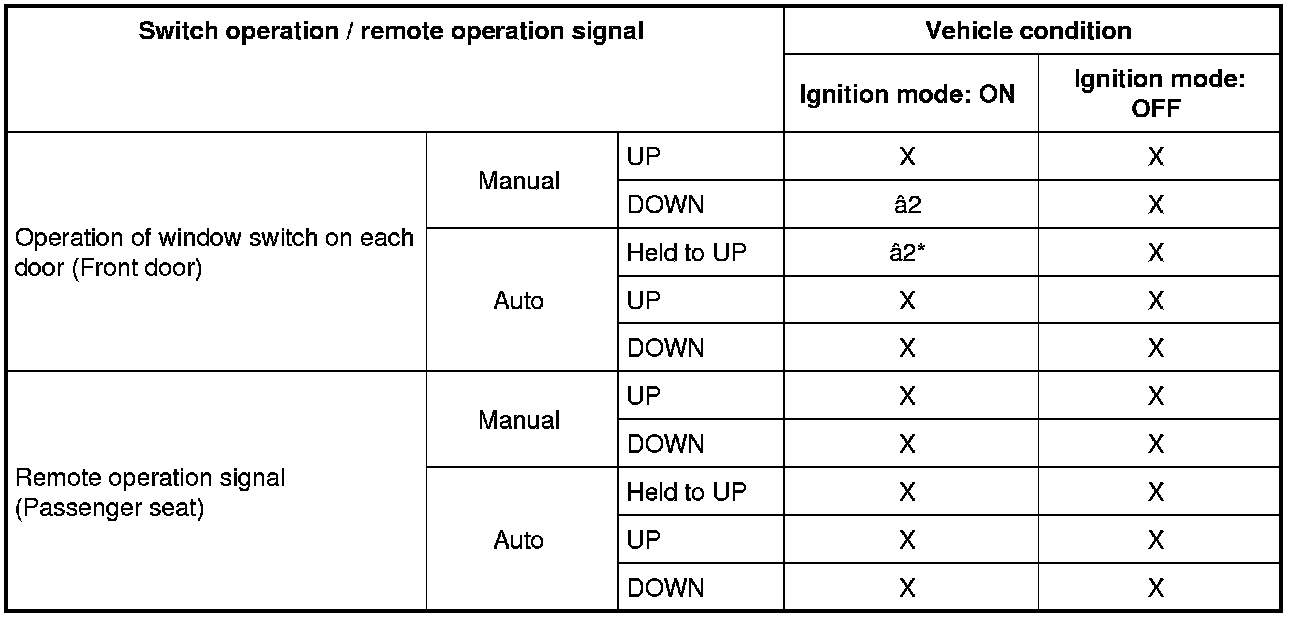

Fail-safe mode No. 6

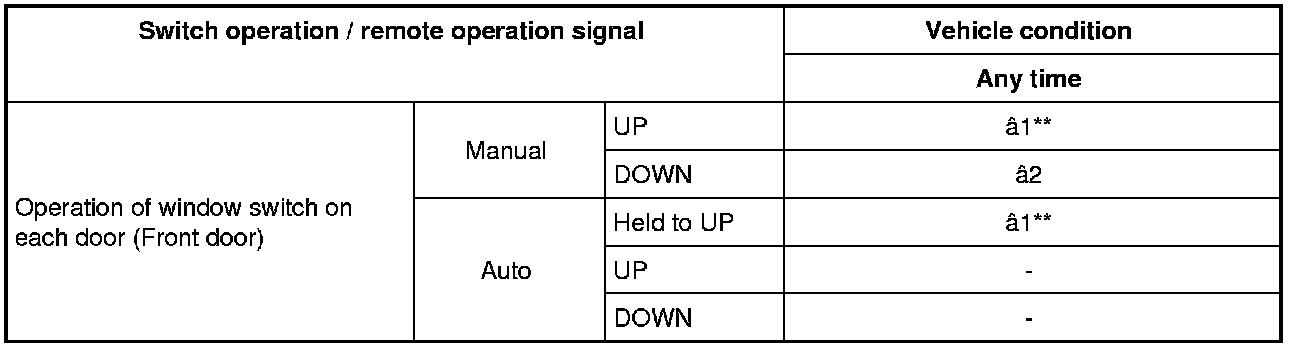

Operation from own seat switch

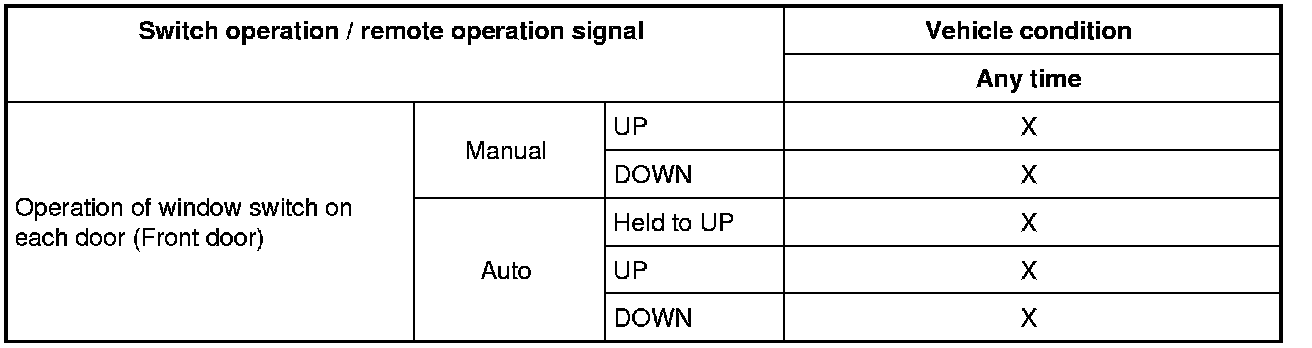

Combination of fail-safe modes No. 6 and any of No. 1 to 3

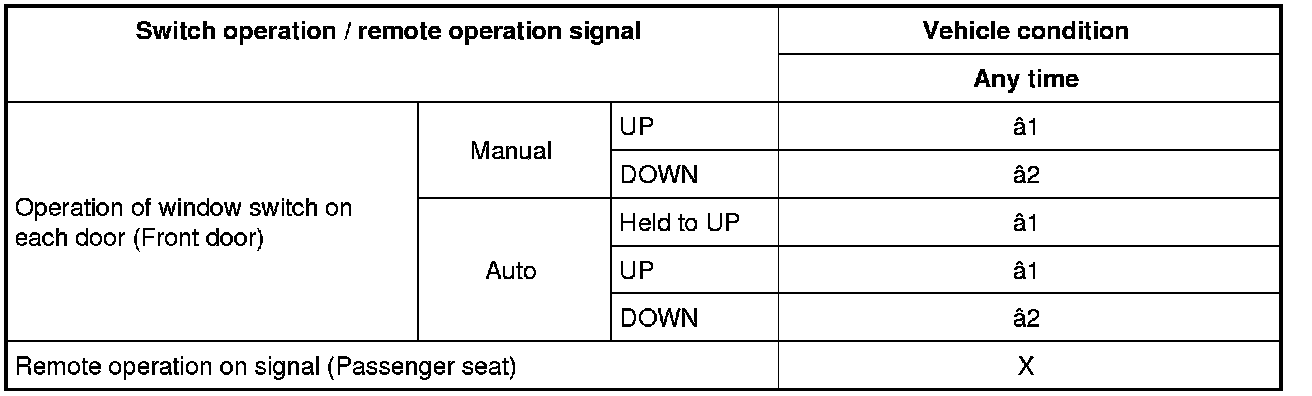

Combination of fail-safe modes No. 4 and No. 6 or fail-safe modes No. 5 and No. 6
