Power Window Sub Switch Inspection

Power Window Sub Switch Inspection

Check continuity between terminals at each switch position.

If check result is not as specified, replace switch.

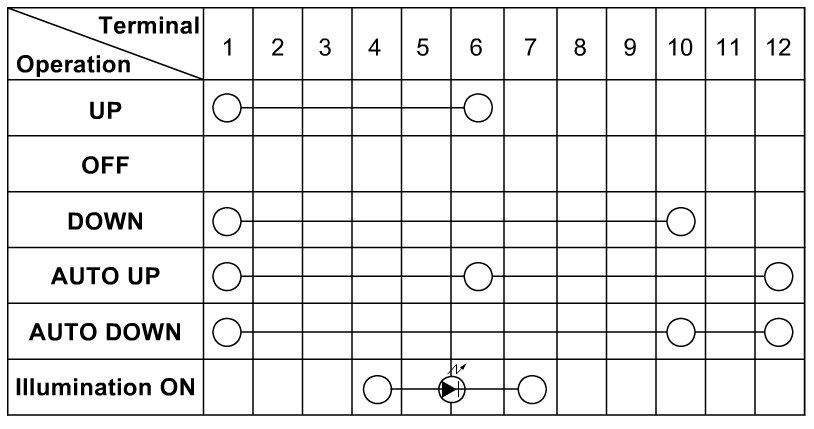

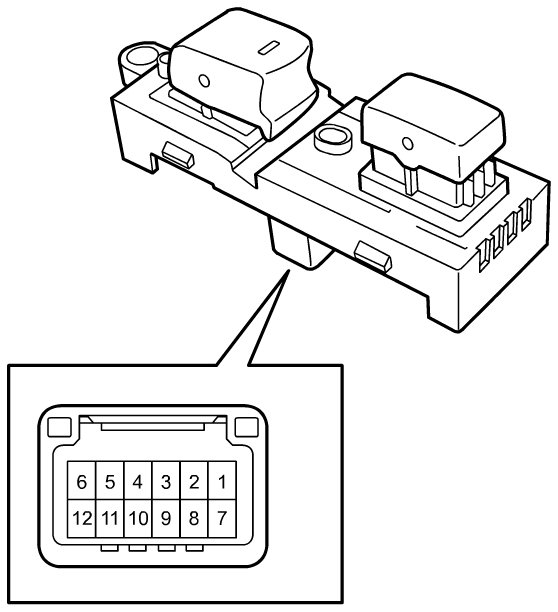

Front power window sub switch (passenger) continuity

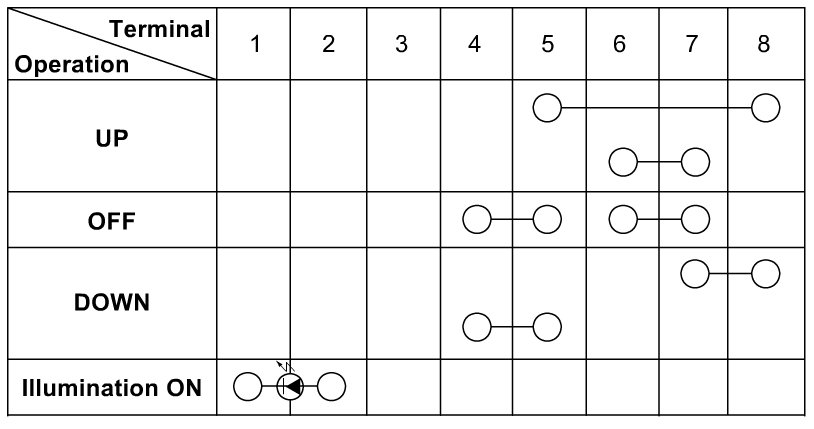

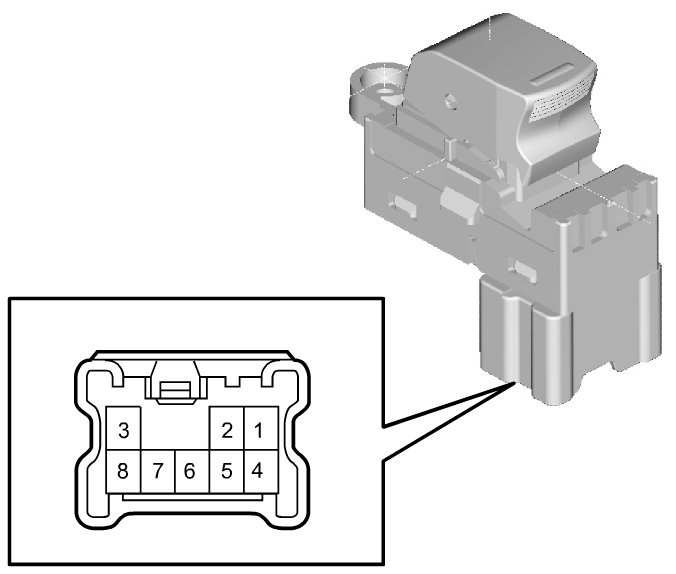

Rear power window sub switch continuity
