2WD/i-AWD Switch Removal and Installation




2WD/i-AWD Switch Removal and Installation

Removal

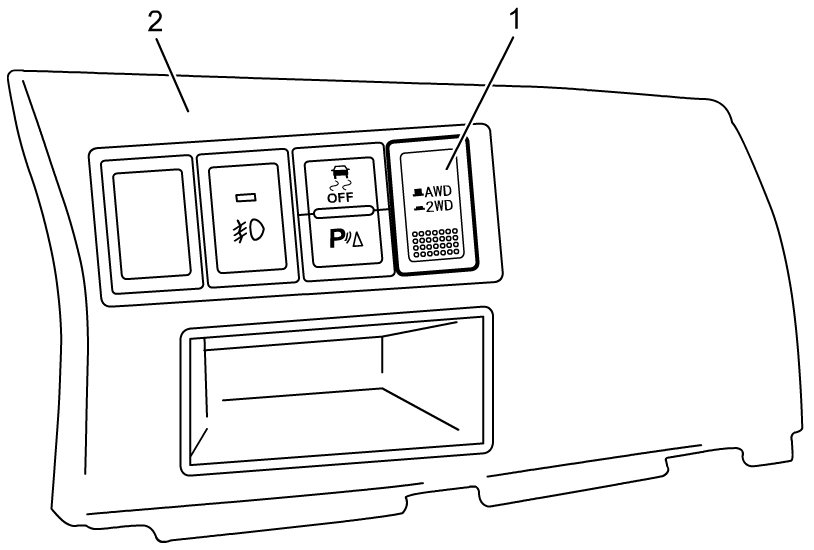

1) Remove instrument panel switch bezel (2). Service and Repair
2) Remove 2WD/i-AWD switch (1) from instrument panel switch bezel.






Installation

Reverse removal procedure.
