Shift Paddle Switch Inspection

Shift Paddle Switch Inspection

Shift Paddle Switch Removal and Installation

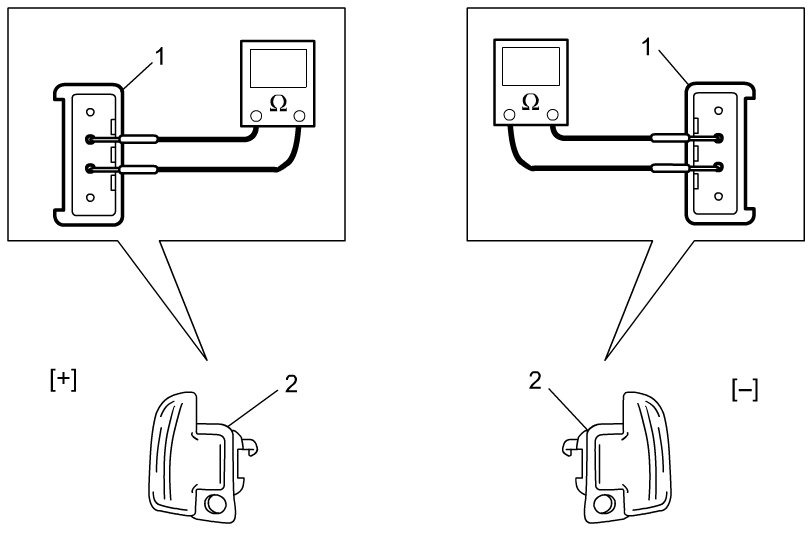

Check for continuity between terminals of shift paddle switch connectors (1). Replace steering wheel assembly if check result is not as specified.

Shift paddle switch specification
