Home
>>
Suzuki
>>
2012
>>
Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Wheels and Tires
>>
Tire Monitoring System
>>
Diagrams
>>
Electrical Diagrams
>>

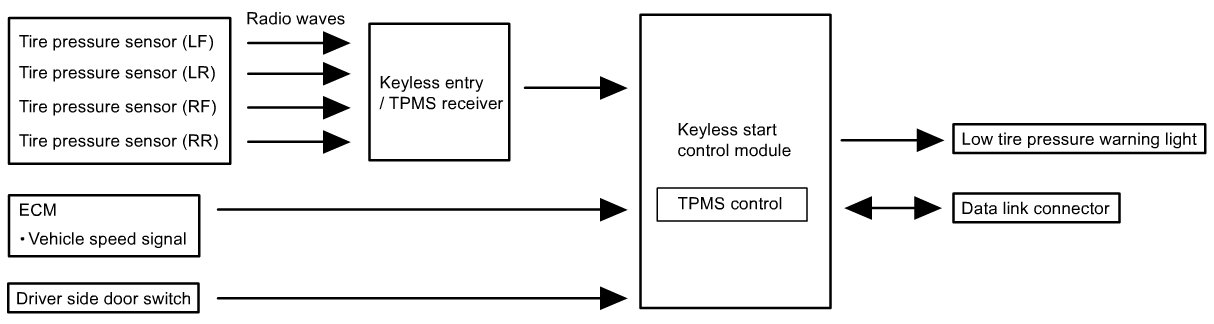

TPMS Input / Output Diagram
TPMS Input / Output Diagram
TPMS Input / Output Diagram
