Initial Inspection and Diagnostic Overview
>>
Fail-Safe Table
Fail-Safe Table
Fail-Safe Table

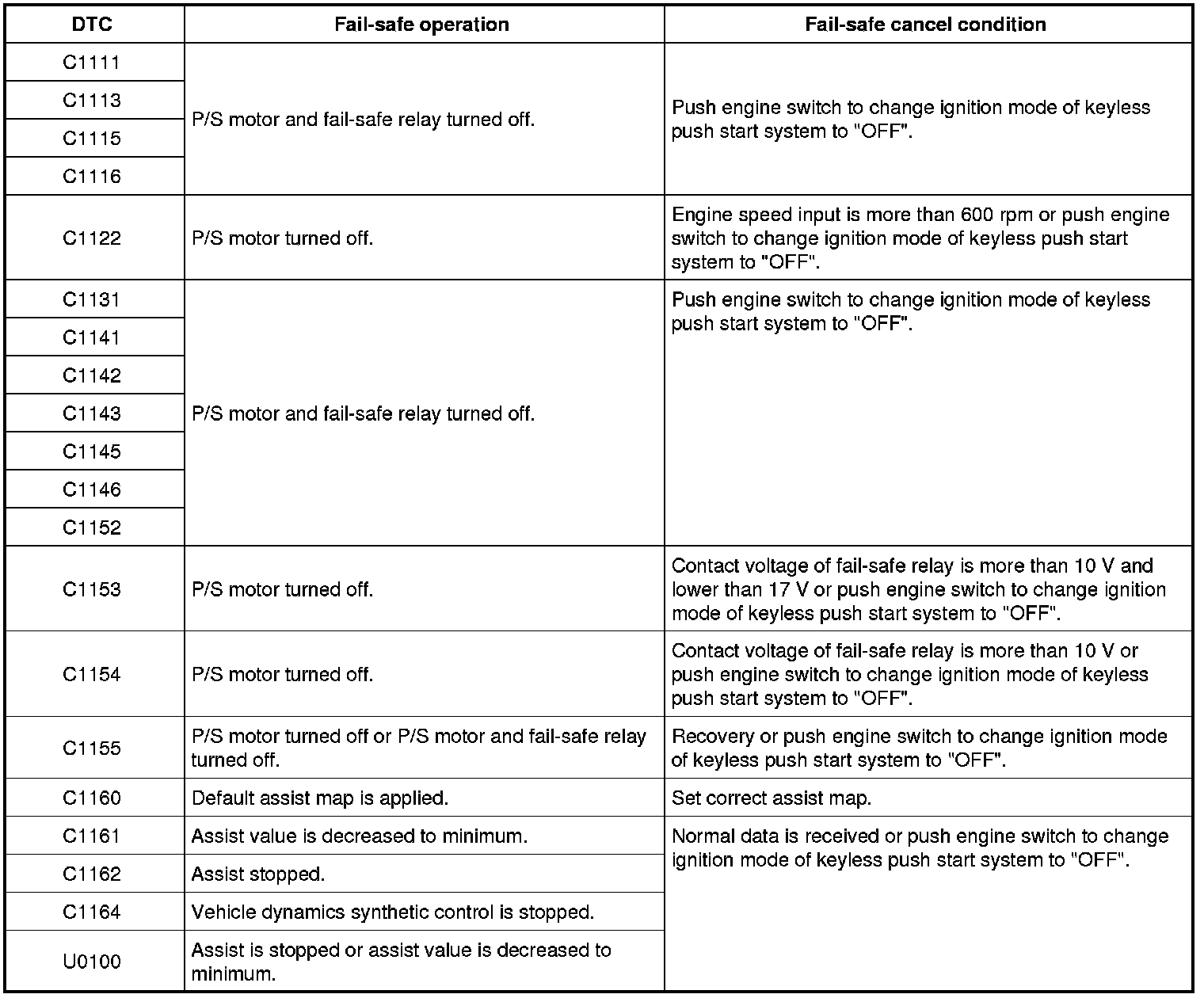

When any of the following DTCs is detected, P/S control module enters fail-safe mode as long as malfunction continues to exist. The fail-safe mode is canceled when the applicable cancel condition is satisfied.
