Relay Box No. 2 Connector Layout
Relay Box No. 2 Connector Layout
Relay Box
No. 2 Connector Layout

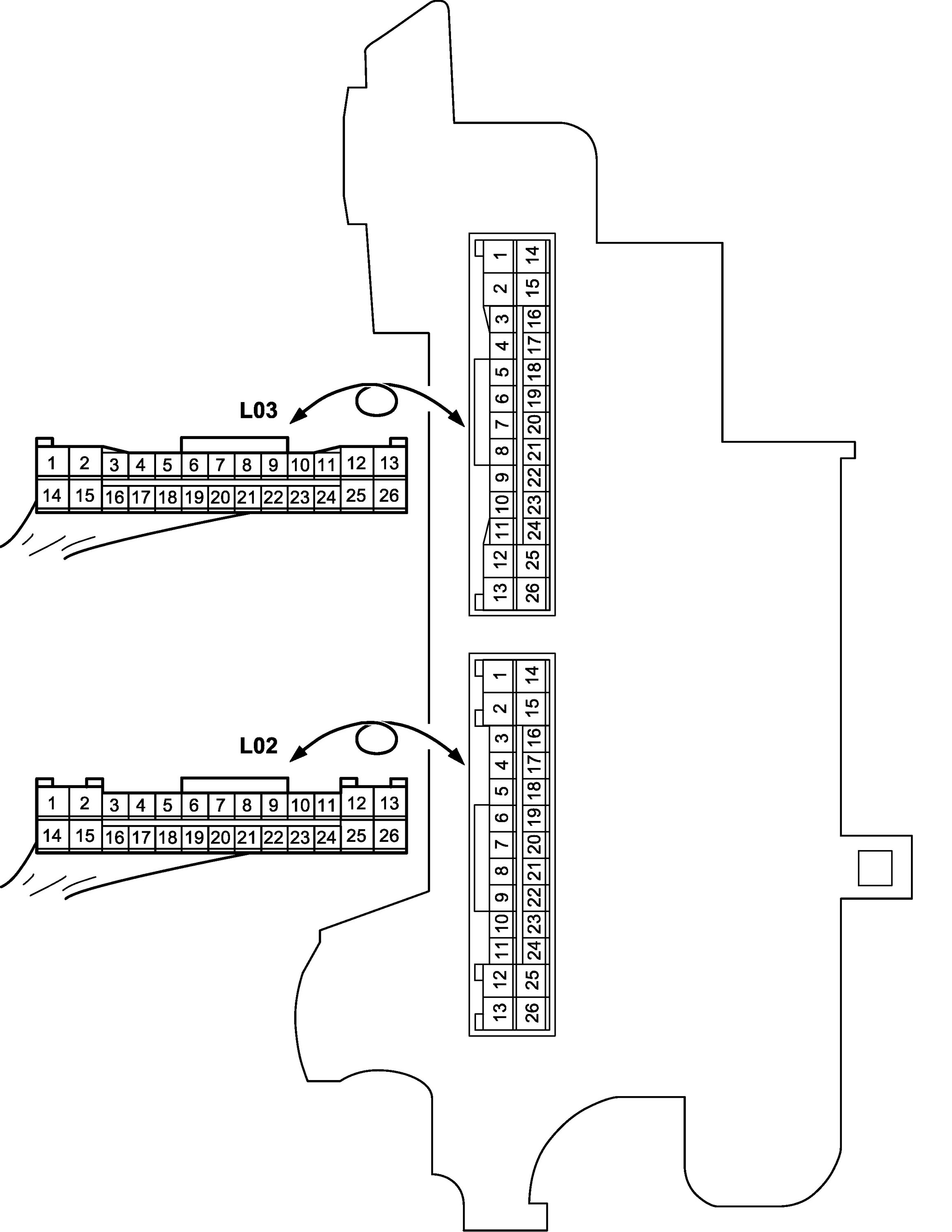

Fuse, Relay Side

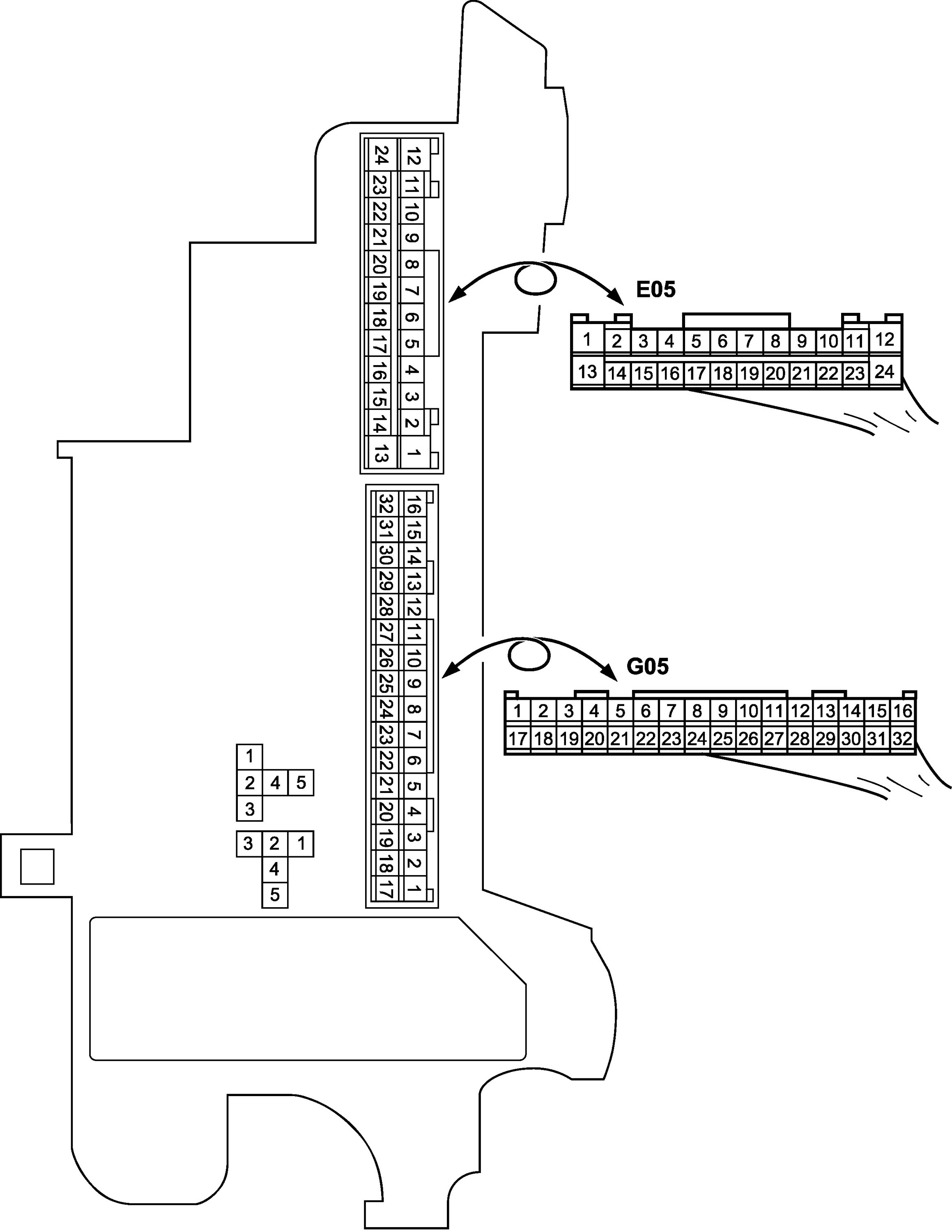

The Other Side of Fuse, Relay
