Brake Pad
Brake Pad Minimum Thickness

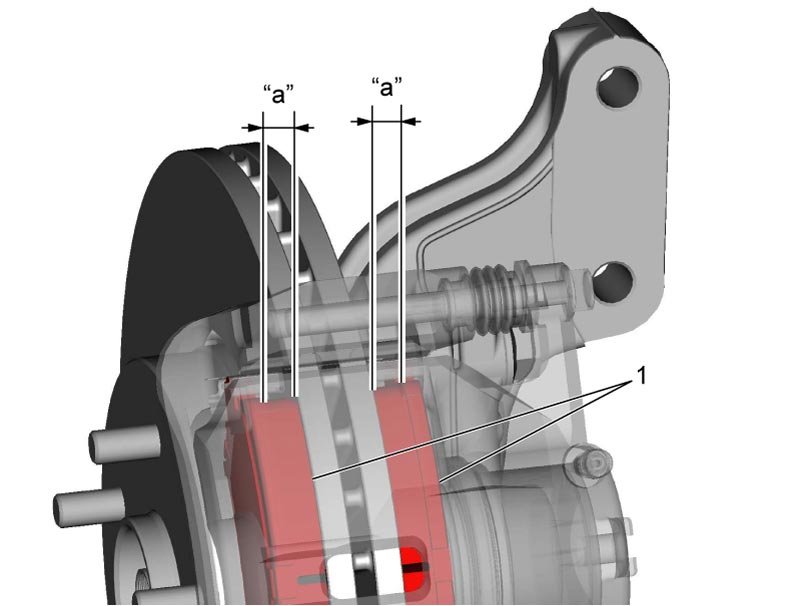

Front brake pad thickness (lining thickness) "a"
Standard: 11 mm (0.43 in.)
Limit: 2 mm (0.08 in.)

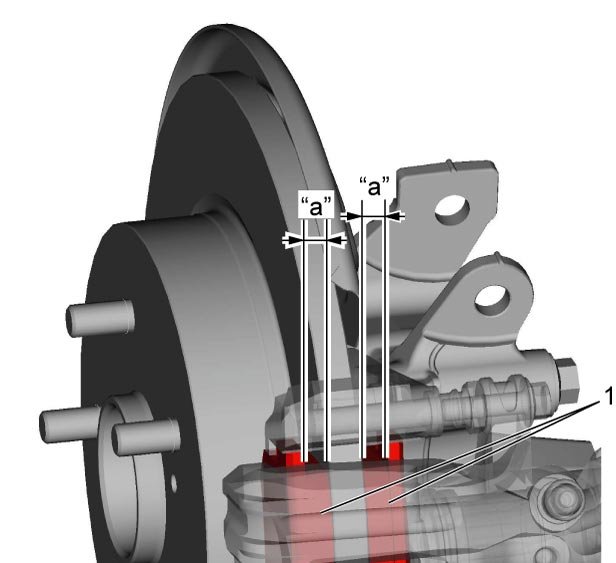

Rear brake pad thickness (lining thickness) "a"
Standard: 9 mm (0.35 in.)
Limit: 1.5 mm (0.06 in.)
Brake Pad Minimum Thickness
Front brake pad thickness (lining thickness) "a"
Standard: 11 mm (0.43 in.)
Limit: 2 mm (0.08 in.)
Rear brake pad thickness (lining thickness) "a"
Standard: 9 mm (0.35 in.)
Limit: 1.5 mm (0.06 in.)
