Door, Roof

Door, Roof

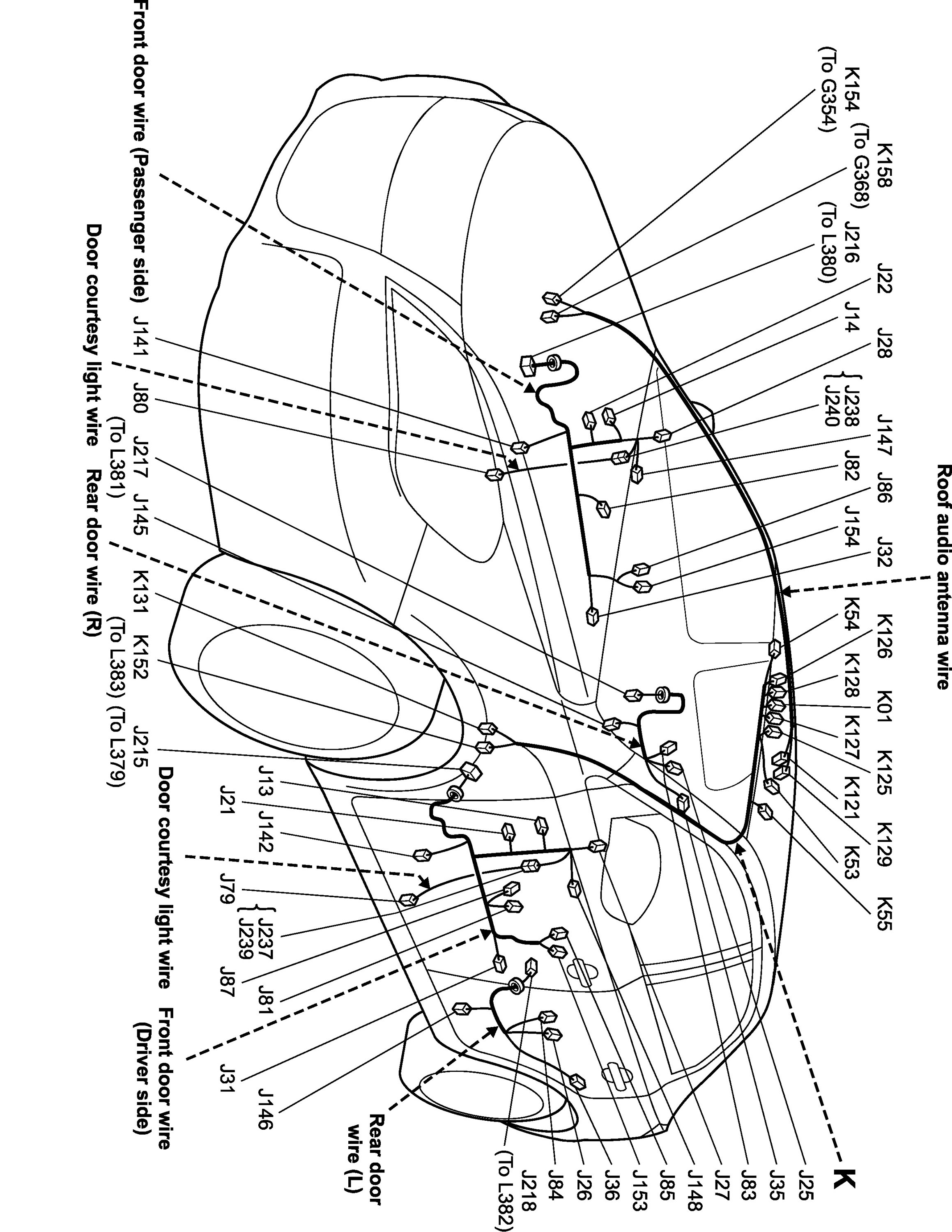

J: Front and Rear Door Wire, Door Courtesy Light Wire / K: Roof Wire, Roof Audio Antenna Wire

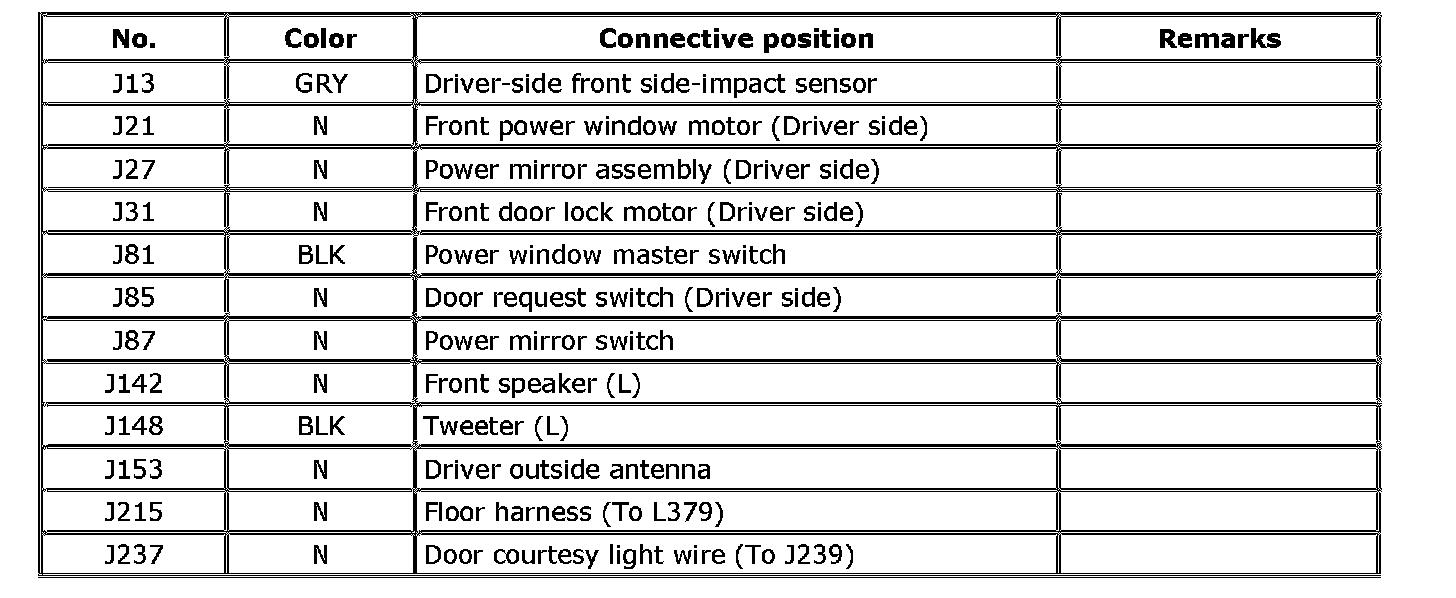

J: Front Door Wire (Drive Side)

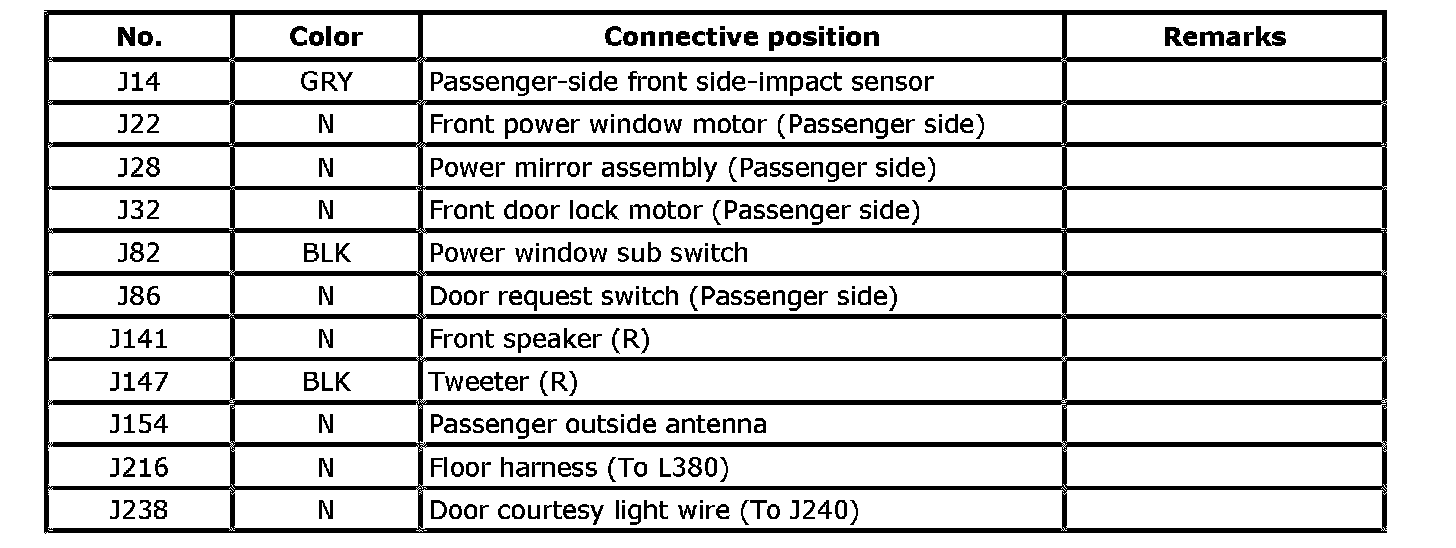

J: Front Door Wire (Passenger Side)

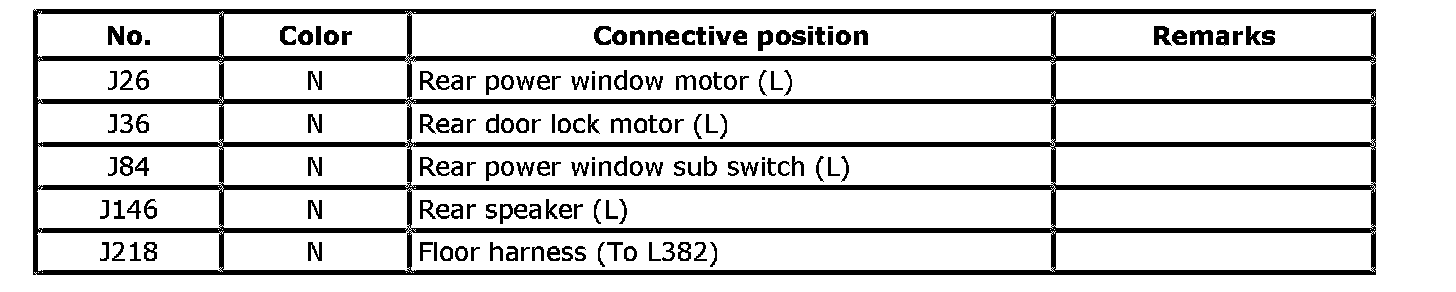

J: Rear Door Wire (L)





J: Rear Door Wire (R)
