Home >> Suzuki >> 2012 >> Kizashi AWD L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Seat Control Module >> Locations >> Rear

Rear

Rear

L: Seat Sensor Wire / M: Trunk Harness, Rear Bumper Wire

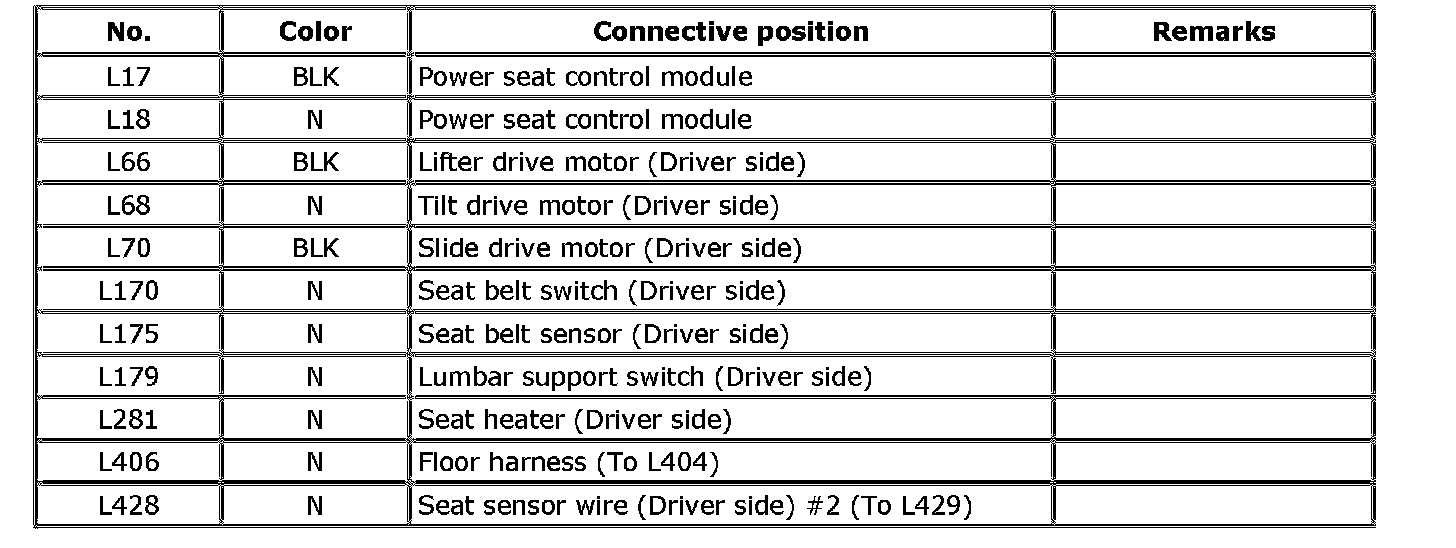

L: Seat Sensor Wire (Driver Side) #1
