CKP Sensor Inspection

CKP Sensor Inspection

CKP Sensor Removal and Installation
1) Check the following points:

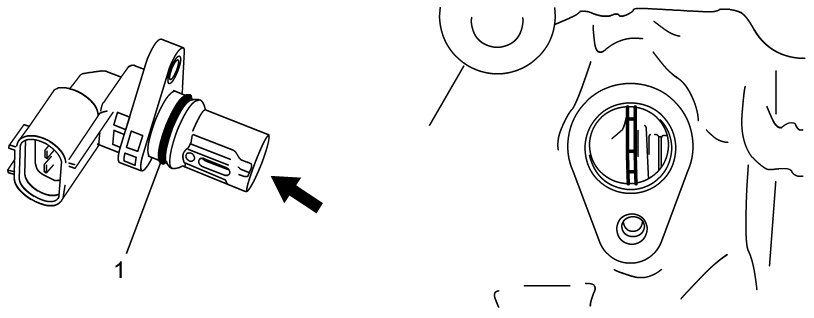

- Check that O-ring (1) is free from damage.
- Check that end face of sensor and signal plate tooth are free from any metal particles and damage.





2) Check CKP sensor as follows.

If faulty condition is found, replace CKP sensor. CKP Sensor Removal and Installation

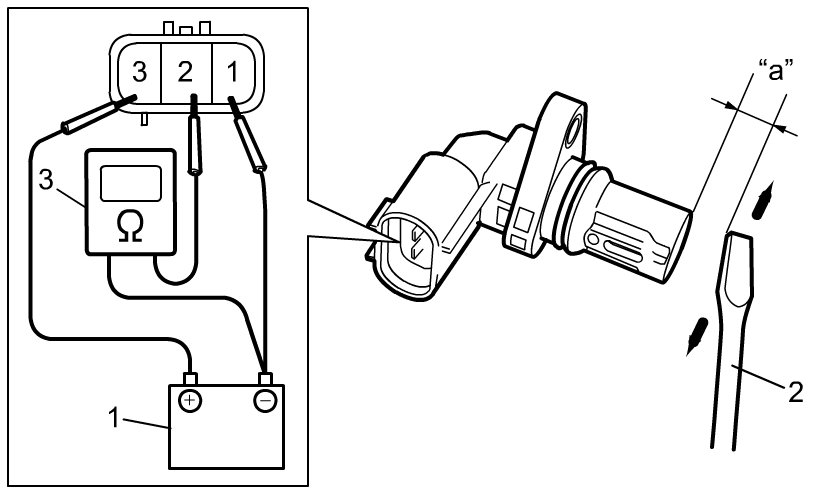

a) Connect battery (1) and ohmmeter (3) to CKP sensor as shown in figure.
b) Check that CKP sensor resistance varies as specified below by bringing magnetic substance (iron) to CKP sensor.

NOTE:
Be sure to keep approximately 1 mm (0.03 in) gap "a" between magnetic substance (iron) and end face of CKP sensor.

CKP sensor resistance
Resistance varies between less than 220 ohms (ON) and infinity (OFF)
