A/C Compressor Inspection

A/C Compressor Inspection

Magnet Clutch Resistance Inspection

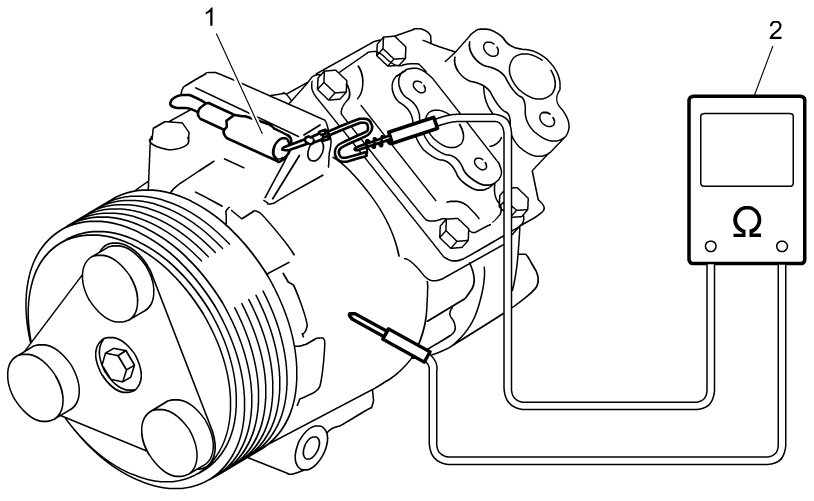

Using ohmmeter (2), measure resistance of stator coil between clutch lead wire (1) and A/C compressor body.

If check result is not as specified, replace magnet clutch assembly.

Specified resistance of magnet clutch
Approx. 3.2 - 4.3 ohms at 20 °C (68 °F)





Clearance between Armature Plate and Magnet Clutch Inspection

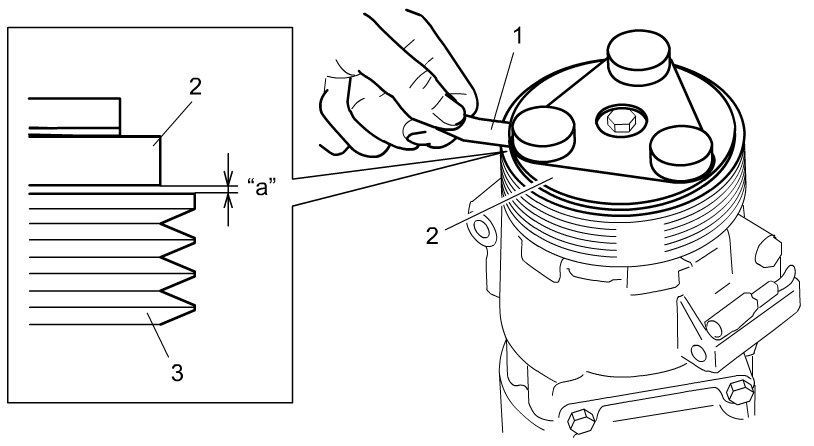

- Check clearance "a" between armature plate (2) and magnet clutch pulley (3) using feeler gauge (1).
- If check result is not as specified, adjust clearance by putting shim(s) on A/C compressor shaft.

Standard clearance between armature plate and magnet clutch
"a": 0.3 - 0.6 mm (0.002 - 0.024 in.)
