Home >> Suzuki >> 2012 >> Kizashi AWD L4-2.4L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Service and Repair >> Overhaul >> Main Bearing, Crankshaft and Cylinder Block >> Components

Components

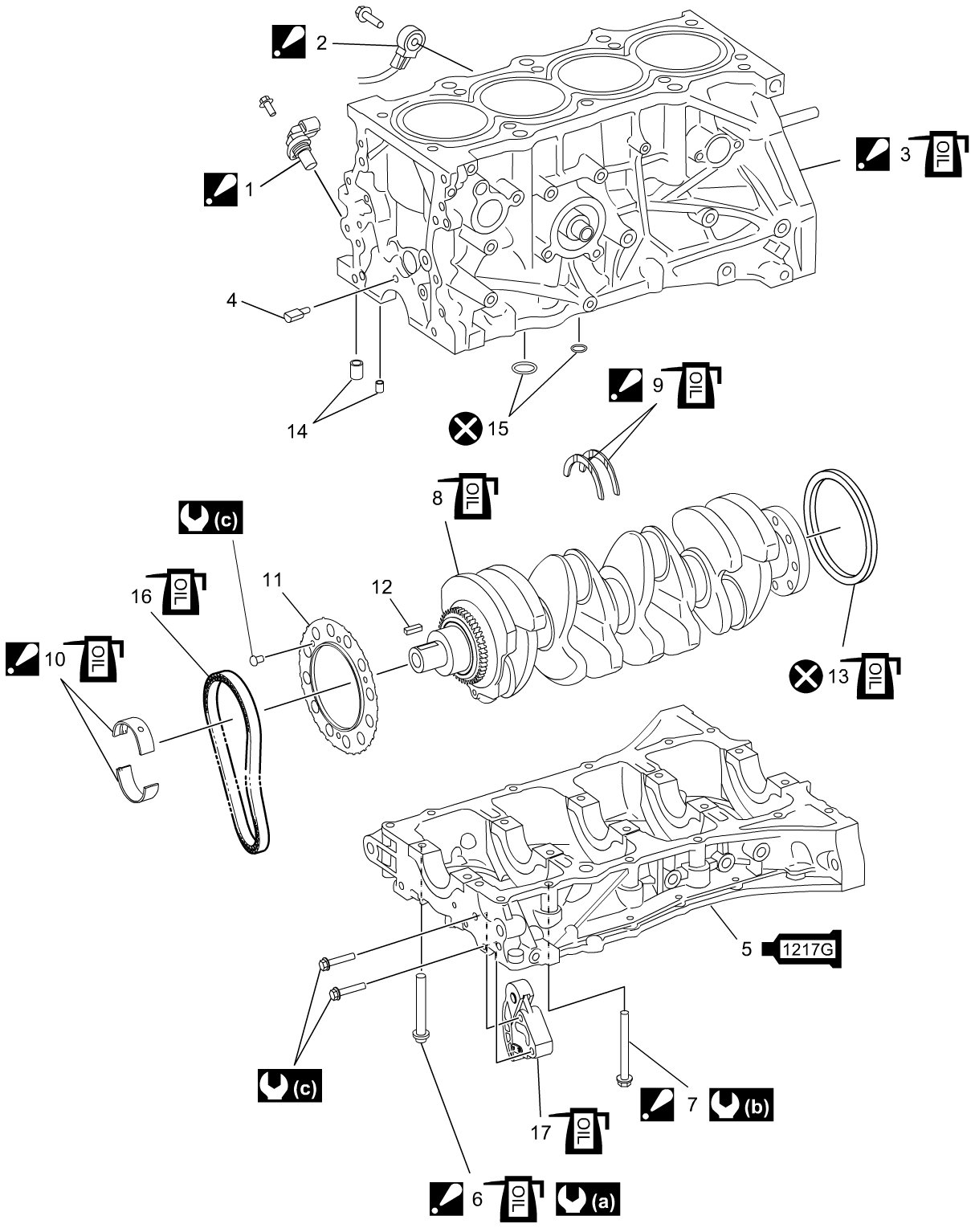

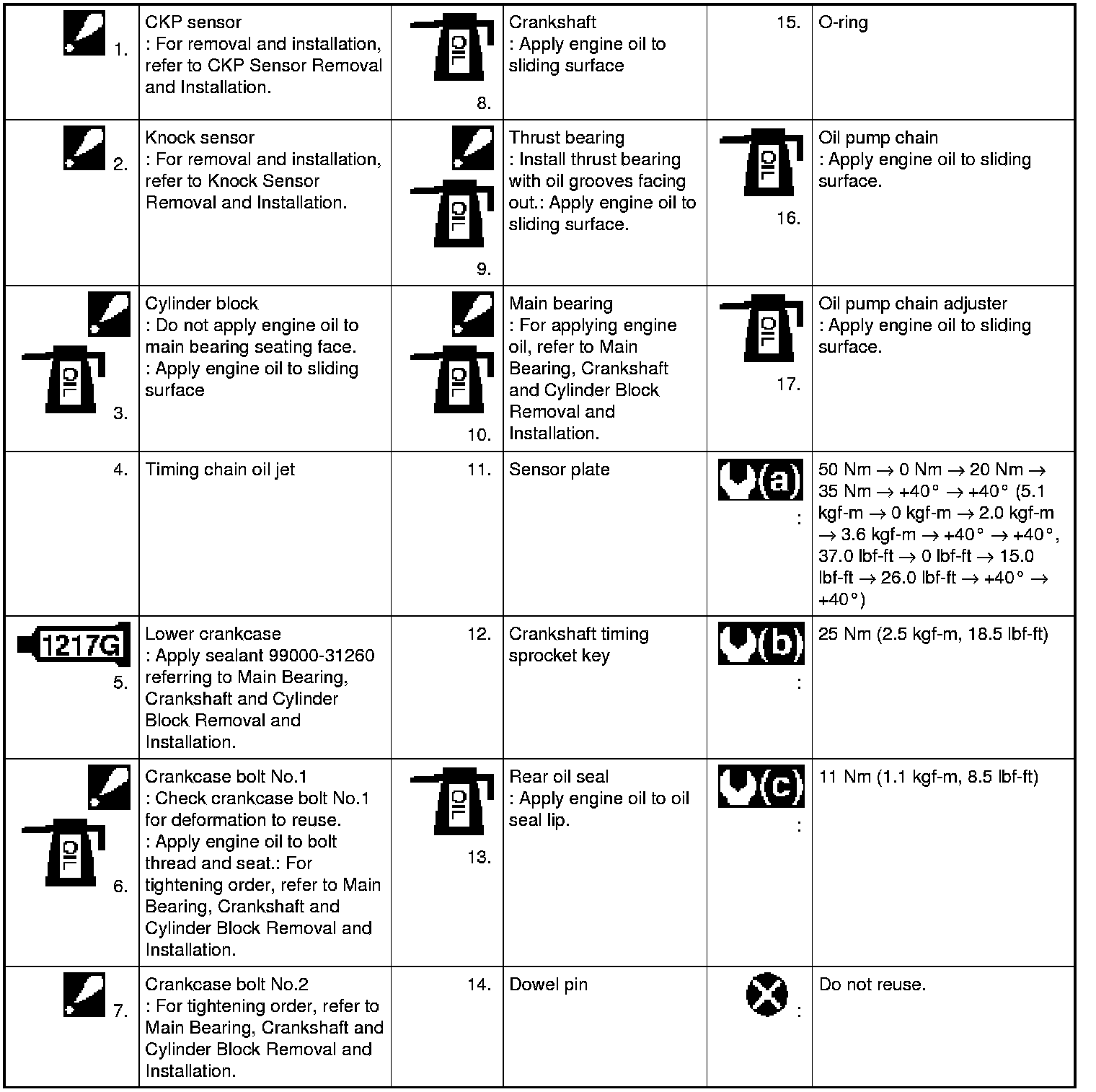

Main Bearing, Crankshaft and Cylinder Block Components





CKP Sensor Removal and Installation Knock Sensor Removal and Installation Removal and Installation Removal and Installation Main Bearing Inspection Removal and Installation Removal and Installation
