Oil Pump Assembly Components

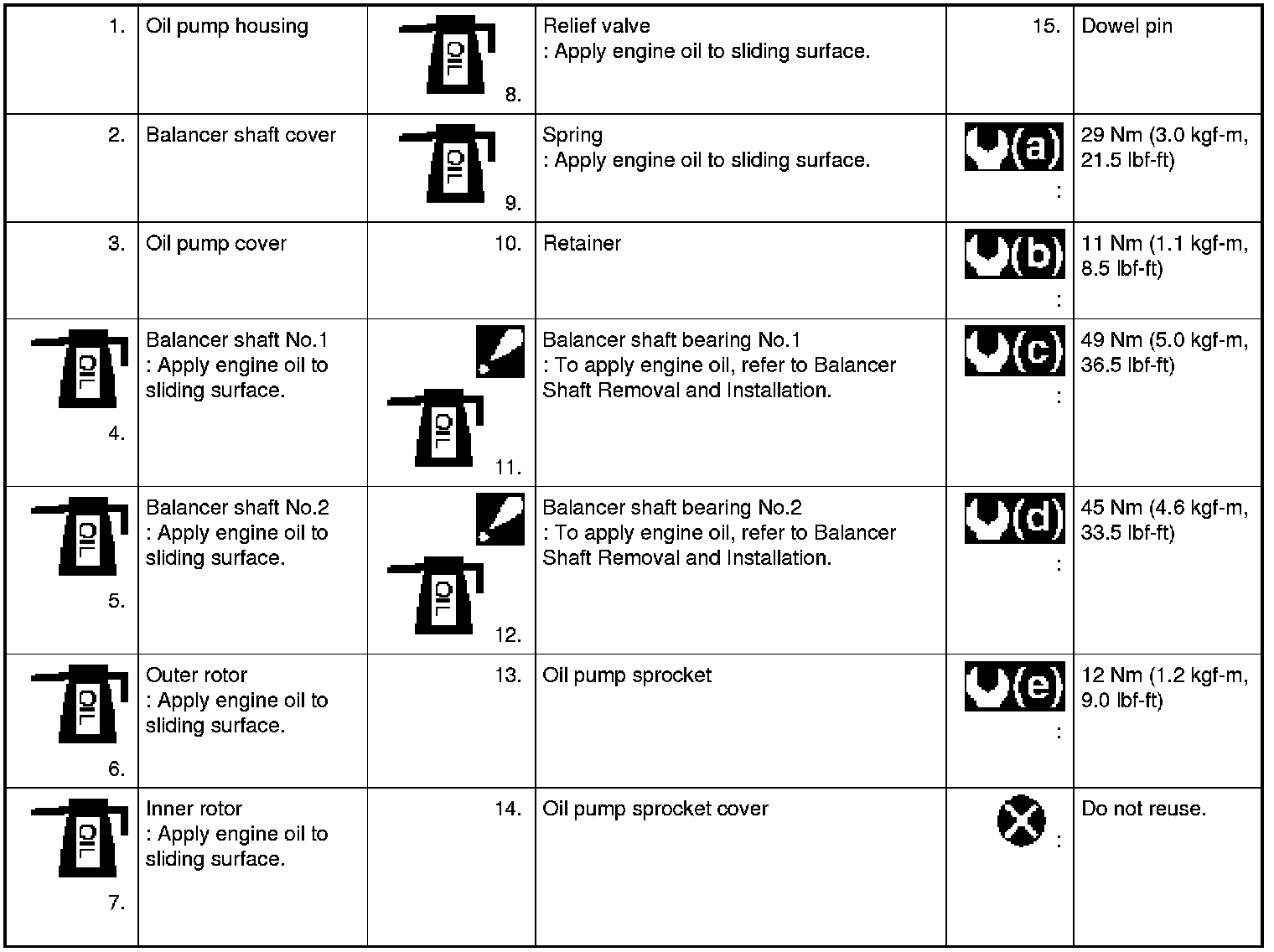

Oil Pump Assembly Components

NOTE:

The parts with * (asterisk) are not available as replacement parts individually. If any defect is found on those parts, replace oil pump assembly.





Balancer Shaft Removal and Installation Balancer Shaft Removal and Installation
