Audio System Circuit Diagram
Audio System Circuit Diagram
Audio System Circuit Diagram

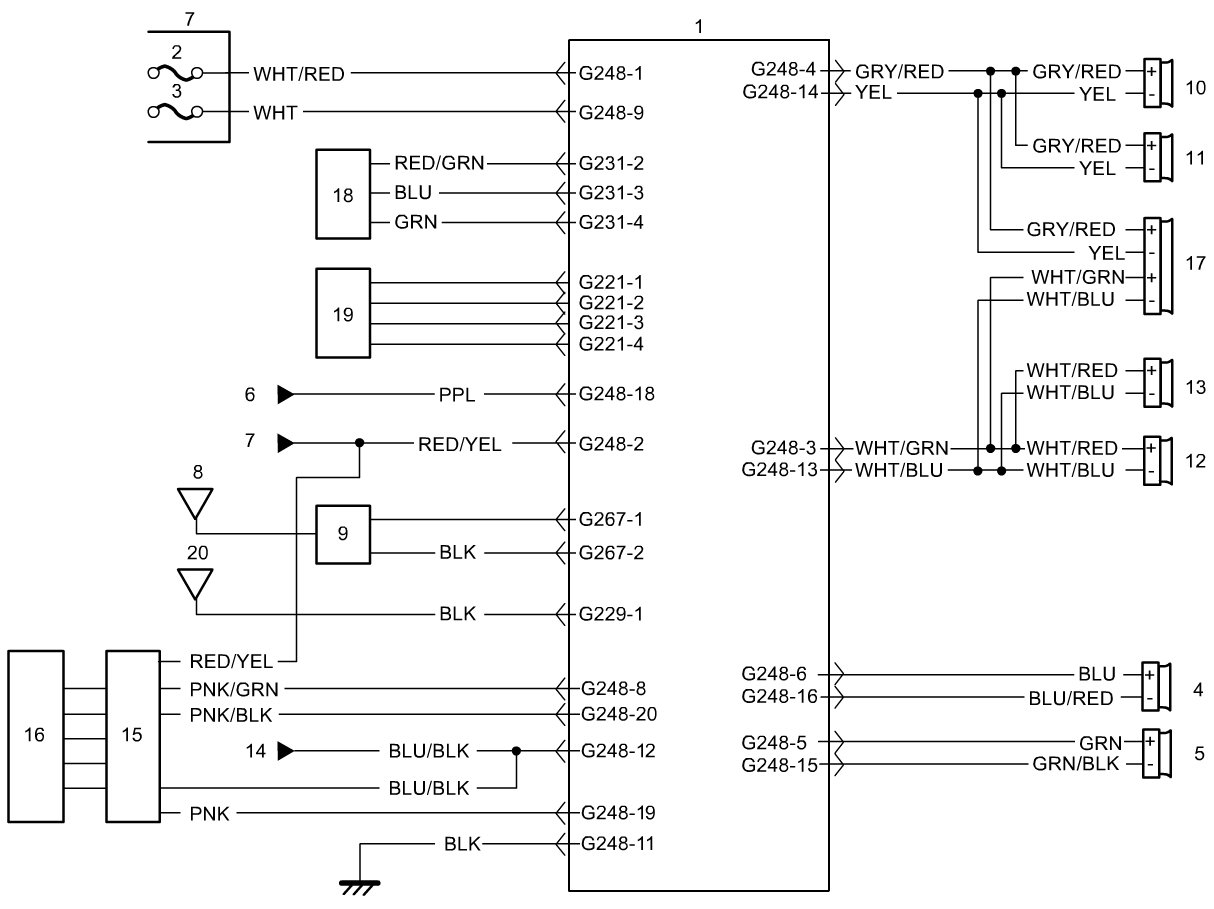

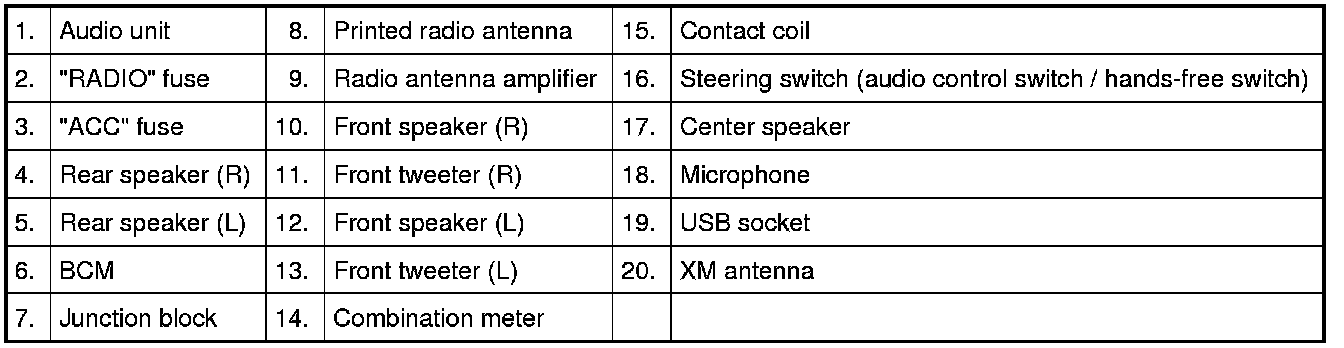

Without Audio Amplifier

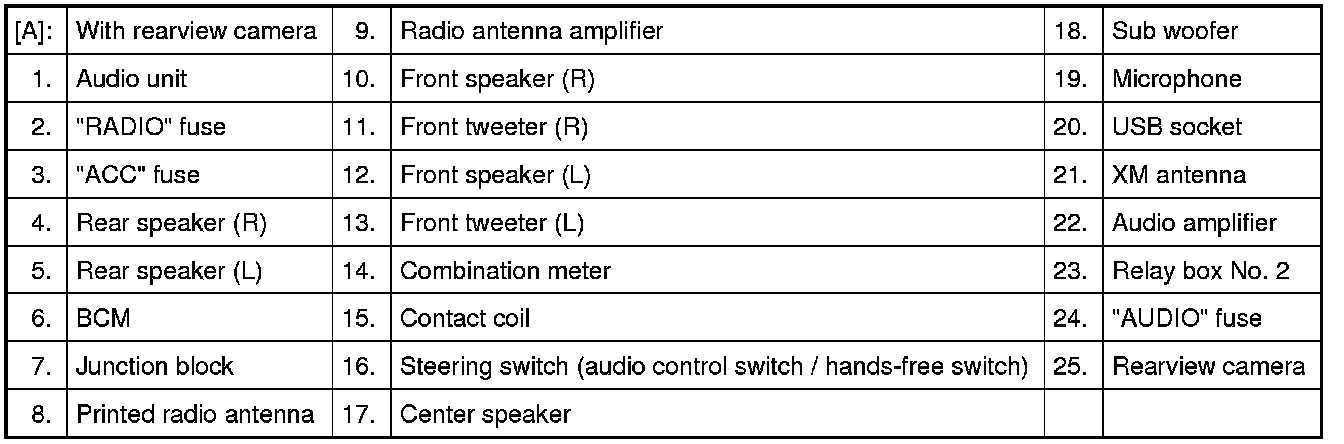

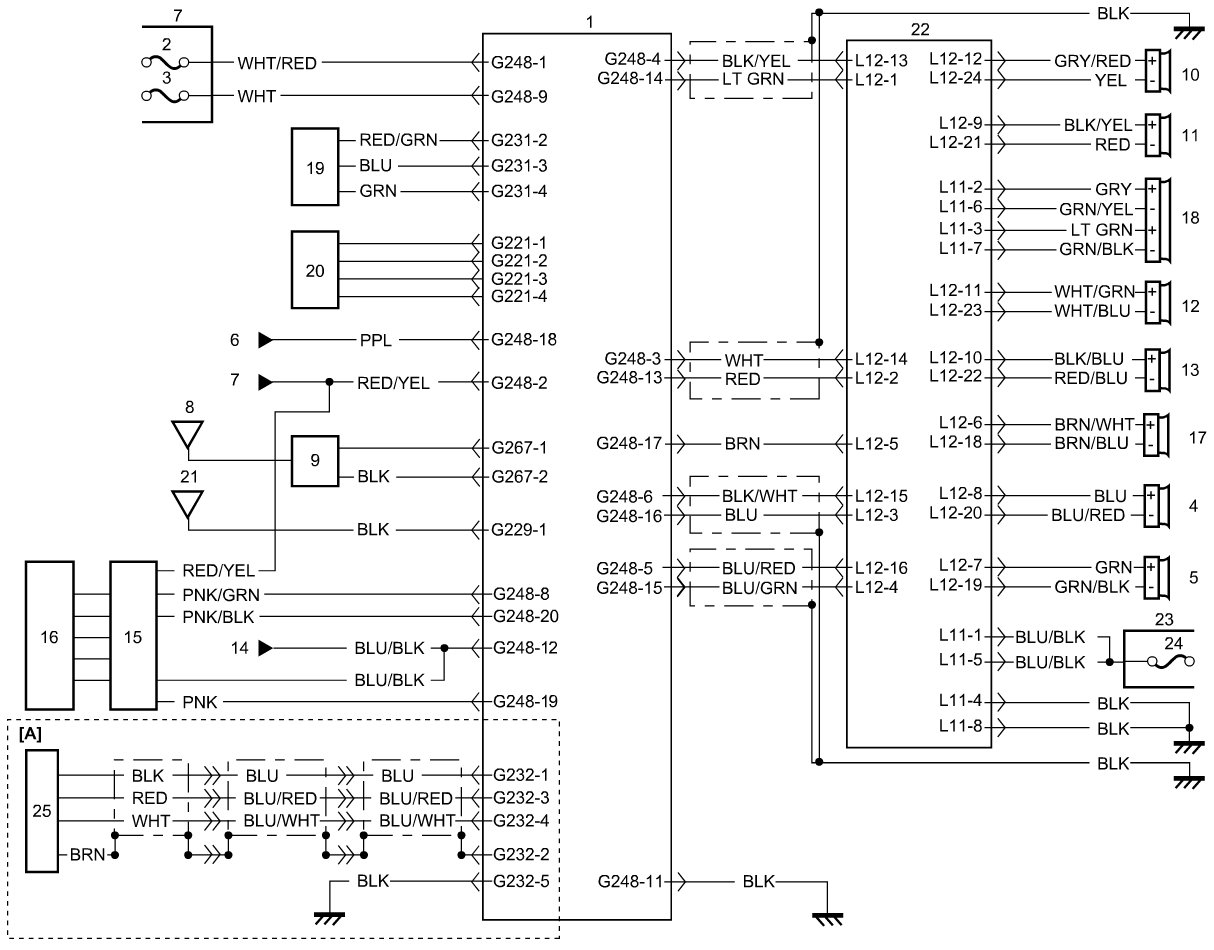

With Audio Amplifier
