Scan Tool Testing and Procedures

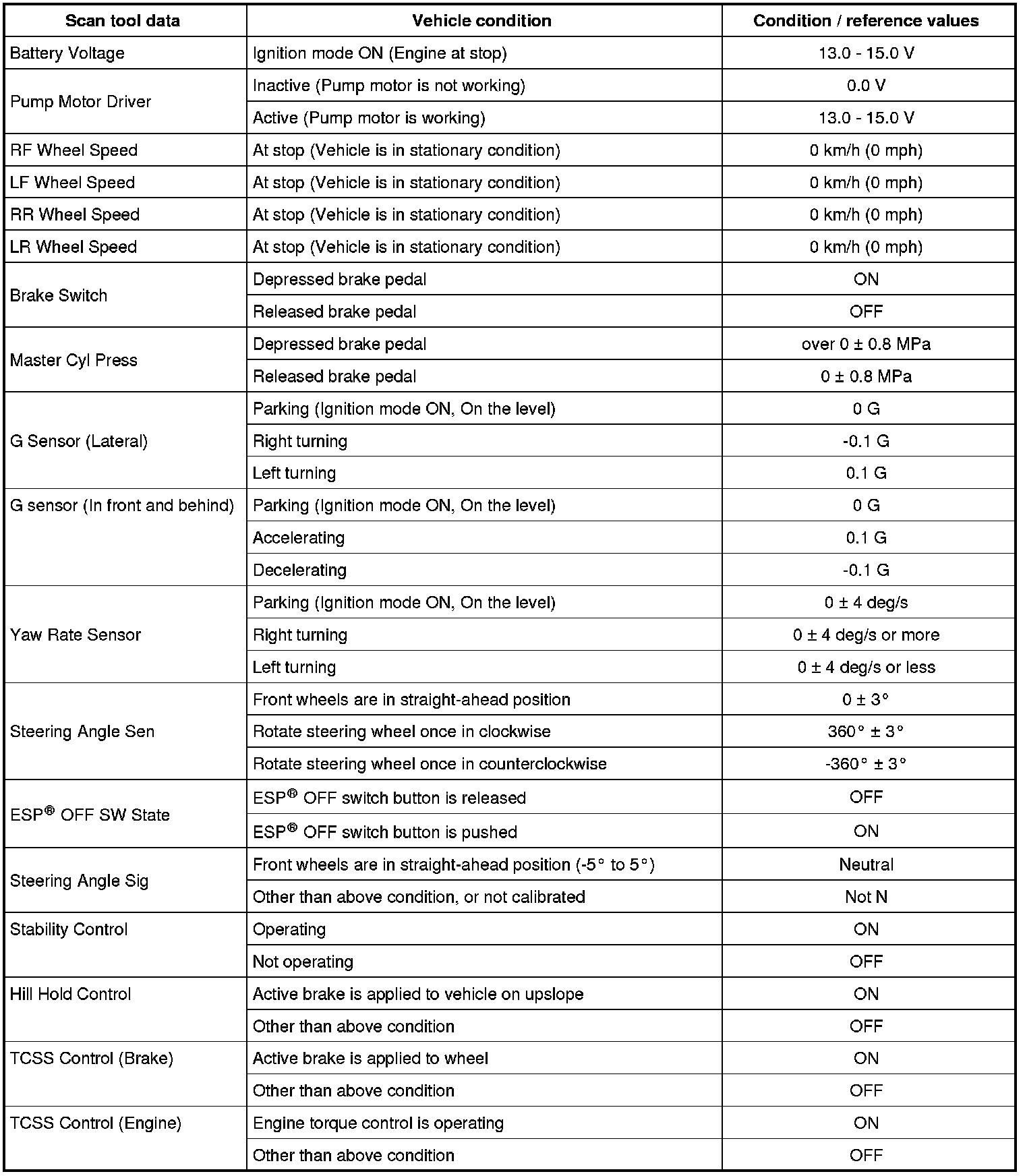

Scan Tool Data


ESP(R) Control Module


As the data values are standard values estimated on the basis of values obtained from the normally operating vehicles by using a scan tool, use them as reference values. Even when the vehicle is in good condition, there may be cases where the checked value does not fall within each specified data range. Therefore, judgment as abnormal should not be made by checking with these data alone.

NOTE:
Ignition mode stands for power supply mode according to engine switch operation in keyless push start system.





Scan Tool Data Definition

Battery Volt (V)
Battery voltage is an analog input signal read by ESP(R) control module. ESP(R) control module functions may be stopped if battery voltage falls below or rises above programmed thresholds.
Pump Motor Driver (V)
This parameter indicates operational condition of pump motor driver (transistor).
RF Wheel Speed, LF Wheel Speed, RR Wheel Speed and LR Wheel Speed (km/h, MPH)
Wheel speed is ESP(R) control module internal parameter. It is computed by reference pulses from the wheel speed sensor.
Brake Switch (ON, OFF)
This switch signal informs ESP(R) control module whether the brake is active or not.
Master Cyl Press (MPa)
This indicates brake fluid pressure from brake master cylinder.
G Sensor (Lateral) (G)
Lateral acceleration is measured by yaw rate / G sensor in ESP(R) control module.
G Sensor (In front and behind) (G)
Acceleration and deceleration is measured by yaw rate / G sensor in ESP(R) control module.
Yaw Rate Sensor (Deg/s)
Yaw rate sensor is measured by yaw rate / G sensor assembly and output to ESP(R) control module by pulse signal.
Steering Angle Sen (°)
Steering wheel rotation angle is measured by steering angle sensor and output to ESP(R) control module by pulse signal.
ESP(R) OFF SW State (ON, OFF)
This indicates state of ESP(R) OFF switch.
Steering Angle Sig (Neutral, Non N)
This indicates steering wheel angle measured by steering angle sensor is in straight-ahead or not.
