Power Trunk / Liftgate Lock Switch: Locations

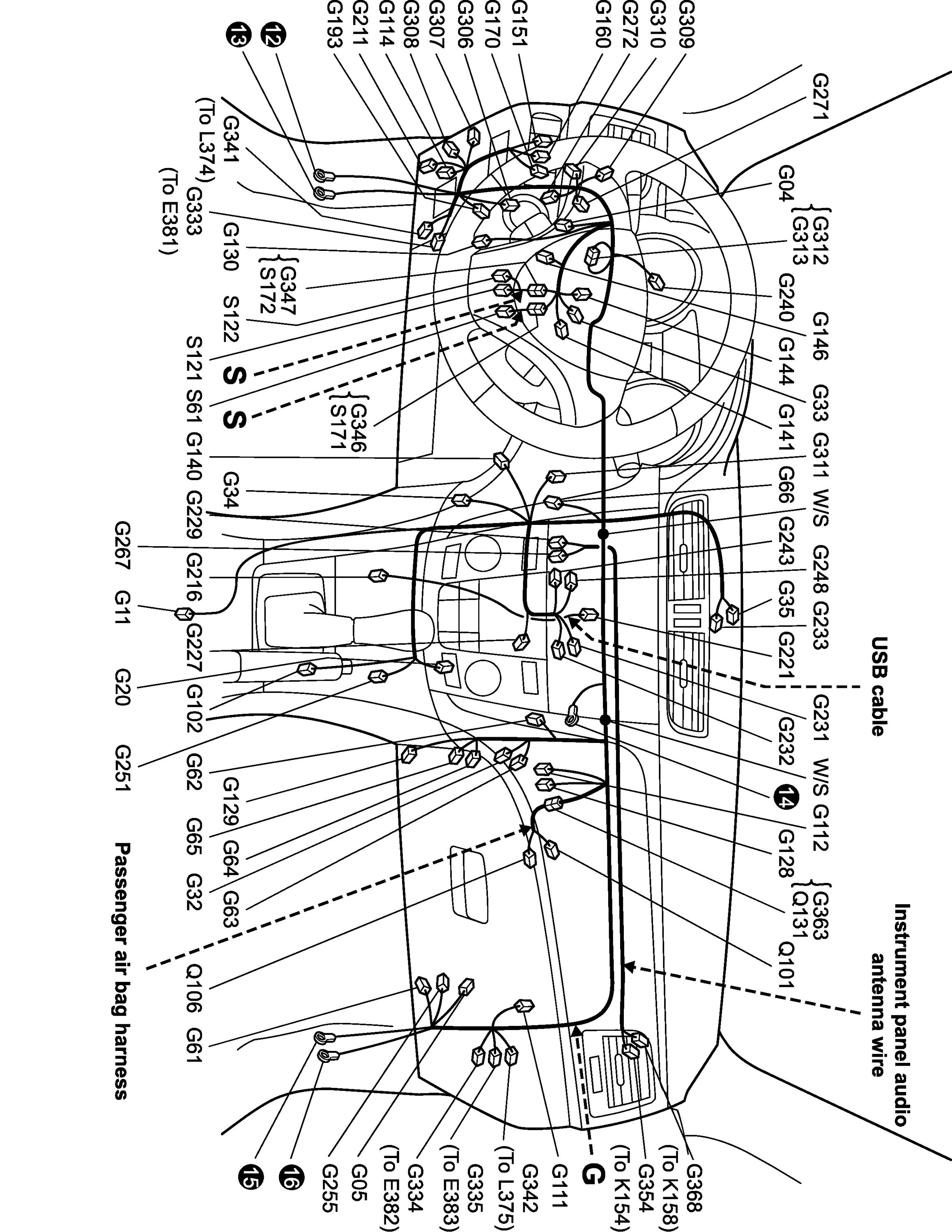

Instrument Panel

G: Instrument Panel Harness, Instrument Panel Audio Antenna Wire, USB Cable / Q: Passenger Air Bag Harness / S: Contact Coil

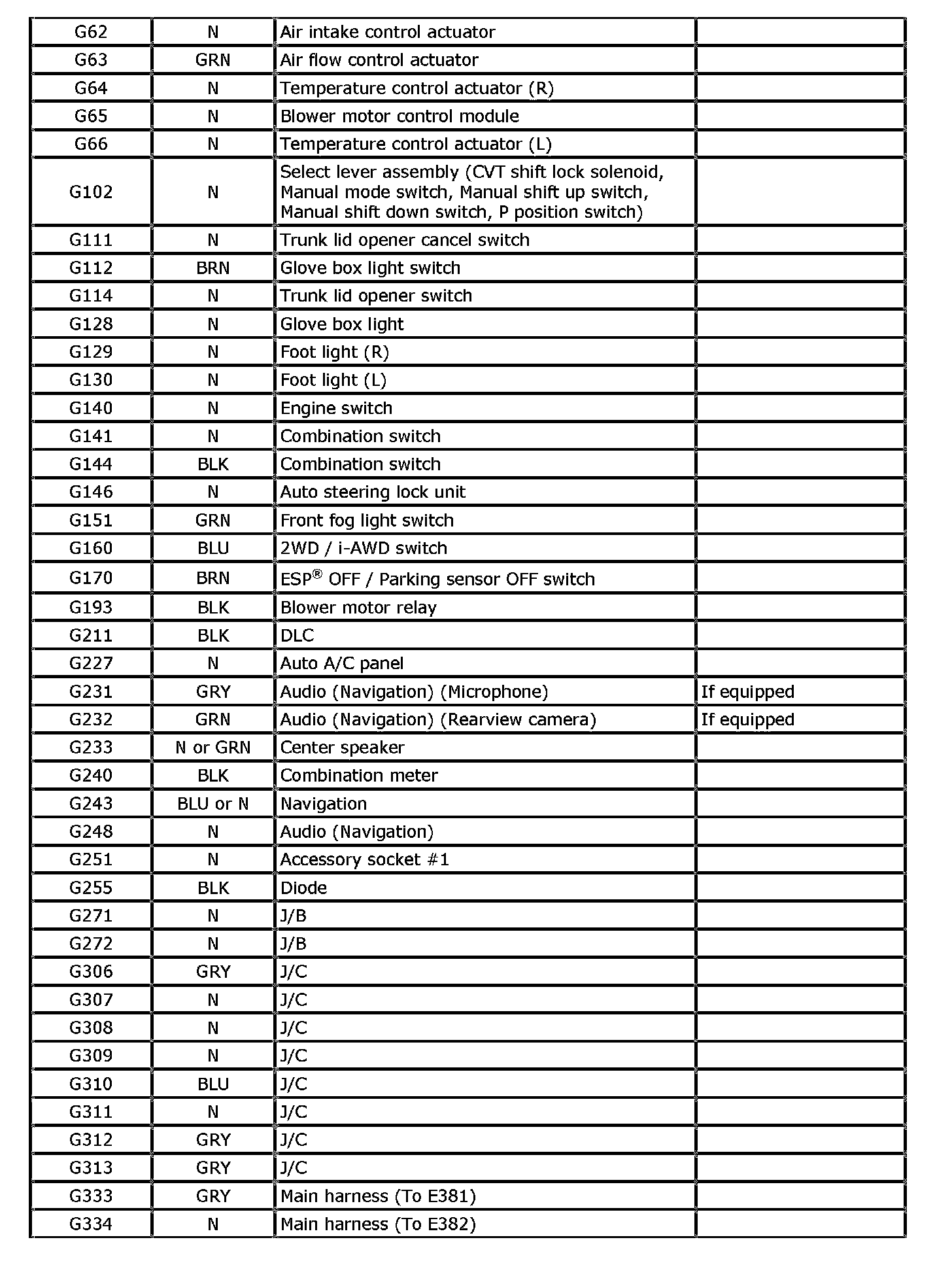

G: Instrument Panel Harness
