The anti-pinching function reverses and then stops the auto-slide-closing sun roof when a load exceeding the preset value is applied to the sun roof glass due to pinching of something, etc.

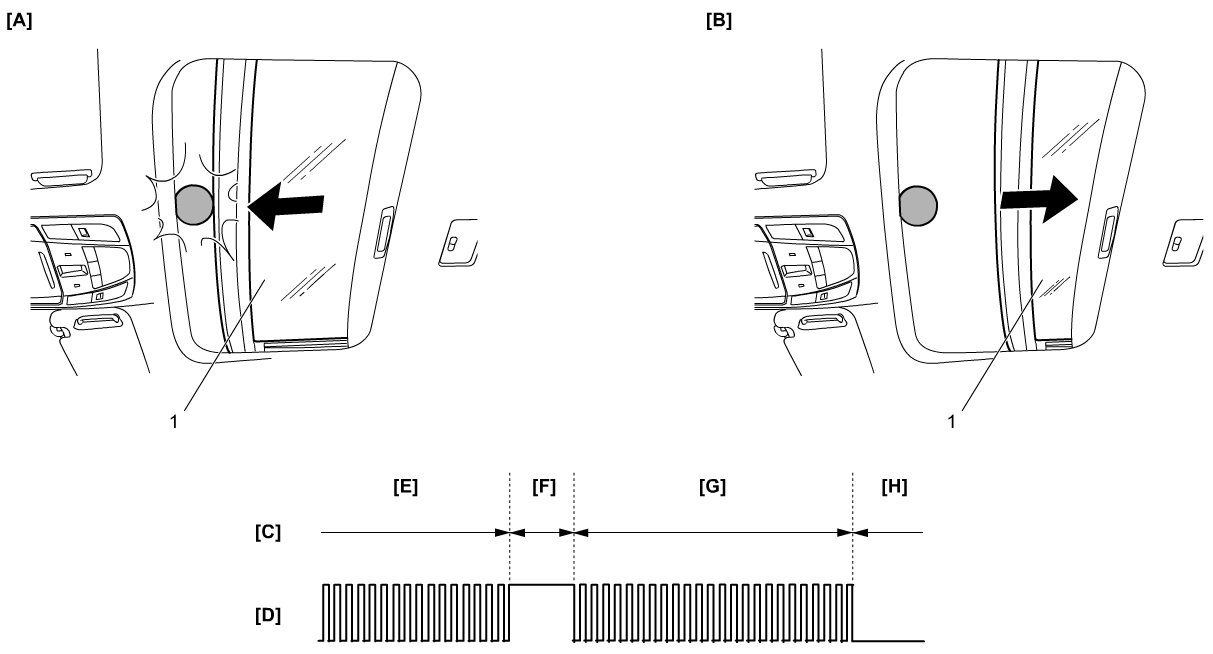

Reverse Operation Stroke of Anti-Pinching Function

When a load exceeding the preset value is applied to the auto-slide-closing sun roof glass, it reverses by approx. 200 mm (7.87 in.).

The sun roof glass stops its motion if it opens fully before moving 200 mm (7.87 in.).










Sun Roof Fail-Safe Function

The control module in sun roof motor stops auto sliding and auto tilting when the following errors are detected.

Fail-safe condition

Sensor pulse count exceeds memorized MAX position data.

There is no signal from one sensor while there is signal from another sensor.

Fail-safe cancel condition

After initialization of sun roof motor.
