Rear View Mirror (with Auto Dimming) On-Vehicle Inspection

Rear View Mirror (with Auto Dimming) On-Vehicle Inspection

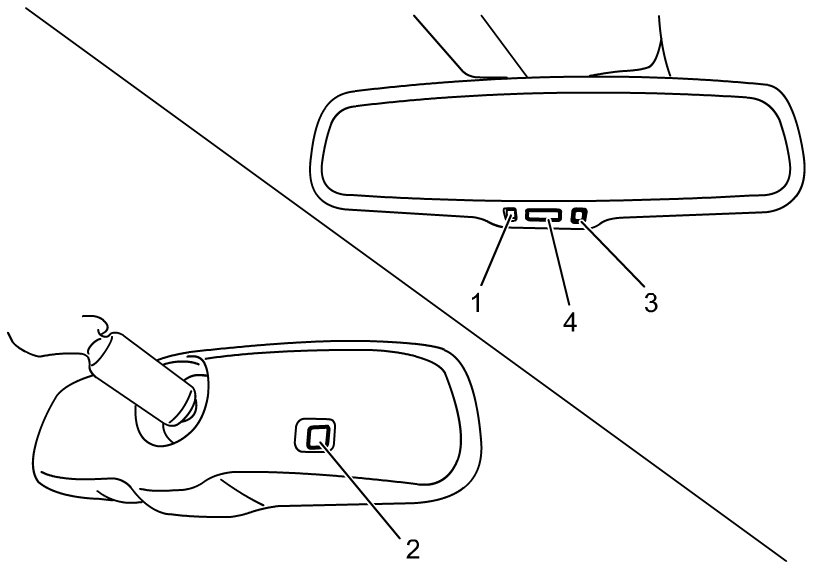

1) Push engine switch to change ignition mode of keyless start system to "ON" and check if indicator (1) lights in green.
2) Cover light sensor (2) at the back of rear view mirror and light up light sensor (3) on mirror side to check if color of rear view mirror changes.
3) From the above condition, set shift lever to "R" range and check if color of rear view mirror returns to its initial color.
4) Cover the front light sensor (2) and apply light to the rear light sensor (3) in order to check if color of rear view mirror changes.
5) Under the same condition as Step 4), press button (4) and confirm the color of rear view mirror returns to initial color.
6) Replace rear view mirror if color does not change.
